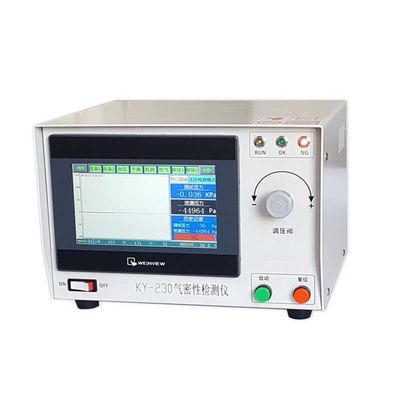

Touch Screen Air Tightness Leak Detector Air Leakage Tester
1. Use
The LR-230 series air tightness tester adopts the direct pressure principle and uses air as the medium to detect the leakage of products. It is a kind of non-destructive testing instrument. The working principle is to inflate the test product to the specified air pressure, then close the valve, stabilize it for a period of time, measure the change in air pressure during the test, and calculate the leakage through conversion. This instrument features high precision and comprehensive functions, and is widely used for sealing detection of parts in open or closed products.
2. Functional features
1. 7 inch touch screen display, Chinese and English language switch.
2. Large leakage, small leakage 2 alarm functions.
3. Alarm set, self-setting,Leakage pressure cap,Test pressure lower limit
4. Usb disk history storage, query, print, delete, screenshot
5. Data storage, the instrument can store test results 24 hours a day
6. Test time can be set for each stage (0.1s-999s)
7. External control, do not need to use PLC program to achieve cylinder control
3. Application fields
It is widely applied in fields such as electronic consumer goods, smart clothing, wires, the automotive and motorcycle industries, the battery industry, valves and pipe fittings, connecting pipes, solenoid valves, lighting fixtures, fire-fighting equipment, household appliances, etc.
4. Technical Specification
|
Model
|
LR-230LF
Negative pressure Low pressure
|
LR-230MF
Negative pressure Middle pressure
|
LR-230F
Negative pressure
|
LR-230L
Low pressure
|
LR-230M
Middle pressure
|
LR-230H
High pressure
|
|
Resolution
|
1pa
|
5pa
|
1pa
|
1pa
|
5pa
|
20pa
|
|
Positive pressure test
|
1~130kpa
|
5~700kpa
|
No
|
1~130kpa
|
5~700kpa
|
0.2~2Mpa
|
|
Negative pressure test
|
-85~-1kpa
|
-85~-1kpa
|
-85~-1kpa
|
NO
|
NO
|
NO
|
|
I/O Interface
|
7 input signals / 7 output signals
|
|
Test volume
|
The test product volume is less than 10 liters, the smaller the volume, the faster the test speed.
|
|
Historical data
|
Historical data records show
|
|
Test time
|
Prepare1--prepare 2--pressurized--balance--detection--exhaust--remove
Range: 0.1s~~999.0s
|
|
Size
|
D310*W310*H210(mm)
|
|
Weight
|
About 8KG
|
|
Power
|
AC 220V±10%, 50/60HZ, Consumption of electricity: 50VA
|
|
Test pressure source
|
Dry clean air source with high flow and stable pressure
|
|
Ambient temperature and humidity
|
Use of temperature:5~40℃,storage temperature -20℃~70℃,below 80%RH,
But no condensation
|
Configuration of choose and buy
| The instrument has a built-in selection |
Equipment for external purchase |
| 1A |
RS485 communication |
2A |
Standard leak device |
| 1B |
Printer output |
2B |
microprinter |
| 1C |
Export Excel files on usb drive |
2C |
8GB U disk |
| 1D |
Leakage unit display ml/min |
2D |
Constant pressure apparatus |
| 1E |
Turn on the pressure detection mode |
2E |

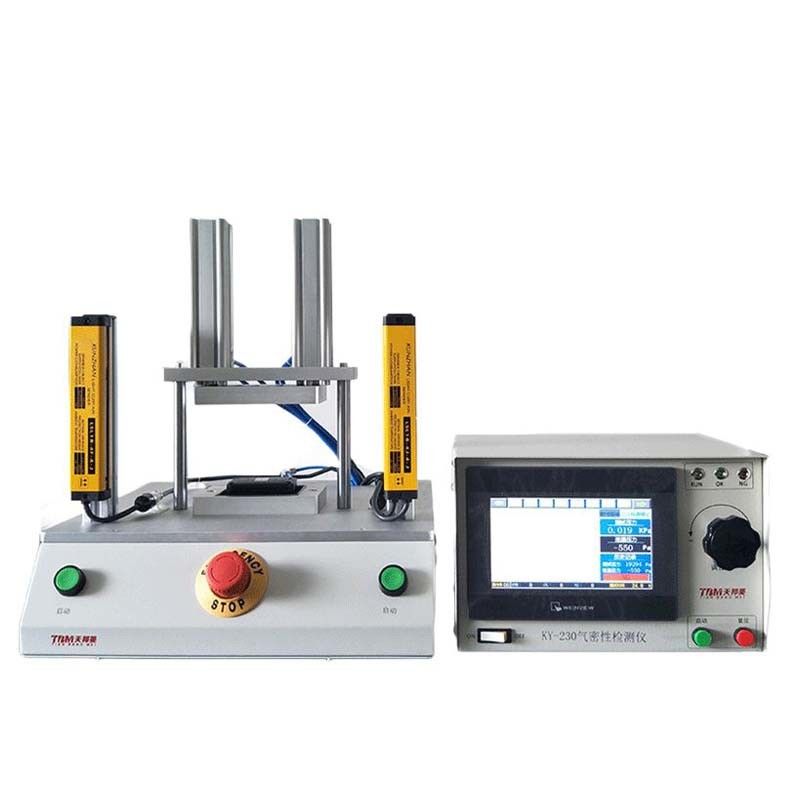

Open product sealing fixture |
| 1F |
Positive and negative pressure cycle test mode |
2F |
Sealing fixture for sealing products |
| 1G |
Blasting pressure detection mode |
2G |
External start reset control box |
