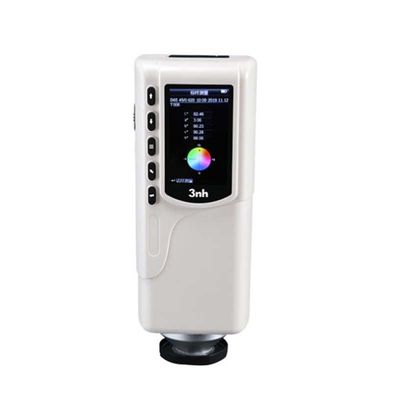

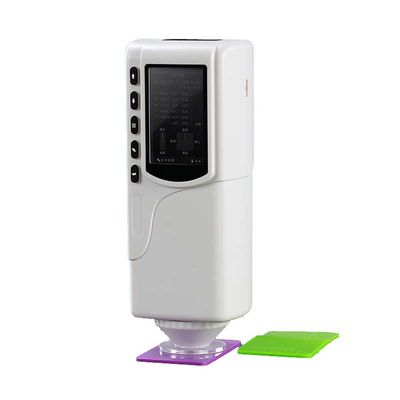

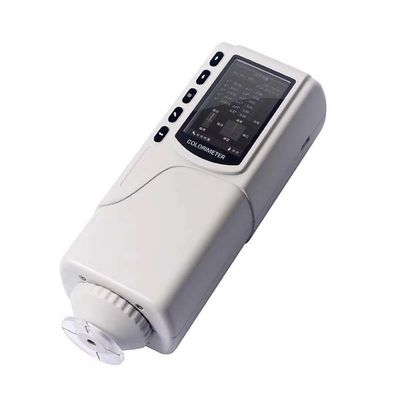

3nh Handheld Colorimeter Analyzer Optical Geometry Color Reader NR20XE

3nh Handheld Colorimeter Analyzer Optical Geometry Color Reader NR20XE
3nh Handheld Colorimeter Analyzer Optical Geometry Color Reader NR20XE 3nh Handheld Colorimeter Analyzer Optical Geometry Color Reader NR20XE 3nh Handheld Colorimeter Analyzer Optical Geometry Color Reader NR20XE

Large Image :  3nh Handheld Colorimeter Analyzer Optical Geometry Color Reader NR20XE

Product Details:
Place of Origin: China
Brand Name: Lonroy
Model Number: NR20XE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden package
Delivery Time: 5-8 work days
Supply Ability: 200 pieces

3nh Handheld Colorimeter Analyzer Optical Geometry Color Reader NR20XE

Description
Dimension: 205×67×80 Mm Weight: 500g
Illuminating/Viewing Geometry: 45°/0° Measuring Aperture : Φ20mm
Highlight:

3nh Handheld Colorimeter

,

Optical Geometry Handheld Colorimeter

,

3nh Hach Handheld Chlorine Analyzer

3nh Handheld Colorimeter 45/0 Optical Geometry Color Reader NR20XE

1. Difference between NR20XE and Ordinary Portable Colorimeter
When testing products such as meat by ordinary colorimeter, the whole instrument body has to be placed in the object which not only stains the instrument, but also will let the liquid/water enter the instrument directly and bring cross contamination. However, NR20XE is a vertical structure. When measuring, it can make sure only the aperture touches the object which will not stain the instrument body.


2. Product Introduction
3nh NR20XE is a handheld colorimeter based on 45°/0° optical geometry. Its measuring aperture is 20mm. NR20XE measuring aperture is the biggest one in domestic. Meanwhile, it also has high measuring precision. As a member of 3nh 45°/0° colorimeter, NR20XE is a colorimeter with unique performance. The color measurement results from NR20XE simulate human eyes but its accuracy is several times higher than human eyes. NR20XE 45°/0 ° optical geometry structures can reflect interactive effect between surface stripe and sample color more effectively than 8°/d colorimeter. NR20XE will eliminate the errors between human eyes and color tester caused by surface stripe when judging tolerance critical value of sample colors. Therefore, NR20XE is widely used in color field.

3. QC Department
NR20XE can meet quality control requirements in plastic (PET,PE,PP,PTA,ABS,EVA particles and powder), color steel plate, coating, textile, fluorescent material, denim, medicine and food industries, etc. It can help to control product color difference, improve product competitiveness, reduce enterprises' loss and control production cost.

4. Applications
Food, medicine, textile, non-woven fabrics, denim, dyeing and printing, color steel plate, paper, plastic, chemical, coating, ink, building material industries, etc.



3nh Handheld Colorimeter Analyzer Optical Geometry Color Reader NR20XE 0

Illumination Locating; Cross Locating; Large Stable End Face



5. Technical Specifications

3nh NR20XE Precision Colorimeter
Illuminating/Viewing Geometry 45°/0°
Measuring Aperture  Φ20mm
Special Function Especially suitable for testing surface stripe and wet products
Locating Illumination Locating/Cross Locating
Detector Silicon photoelectric diode
Locating Illuminating Locating/Cross Locating
Color Space CIEL*a*b*C*h*; CIEL*a*b*; CIEXYZ
Color Difference Formula △E*ab; △L*a*b*; △E*C*h*
Light Source   D65
Light Source Device  LED blue light excitation
Errors Between Each
Equipment
≤0.50ΔE*ab
Storage 100pcs standards 20000pcs samples
Repeatability Standard deviation within ΔE*ab 0.08  Average of 30 measurements of standard white plate
Weight  500g
Dimension 205×67×80 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Charging Time First charging time is 8 hours--100% electricity
PC Software CQCS3 Software
Printer (optional) Miniature thermal printer



6. ProductAdvantages

1. 20mm measuring aperture can test objects with surface stripe accurately.
2. Vertical structure can test wet surface object or can be soaked into the liquid for testing.
3. Double Locating: Illuminating locating and cross locating.
4. Adopting new optical path and dynamic integration time can test more stable and accurate.
5. 45°/0° optical geometry structure, considering the effects of surface features.
6. Annular illumination design, suitable for polarizing material.
7. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
8. Configuring CQCS3 software -- connect PC computer to realize more functions.
