1.Description:

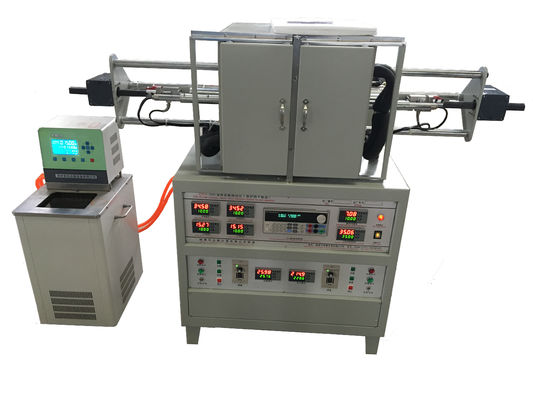

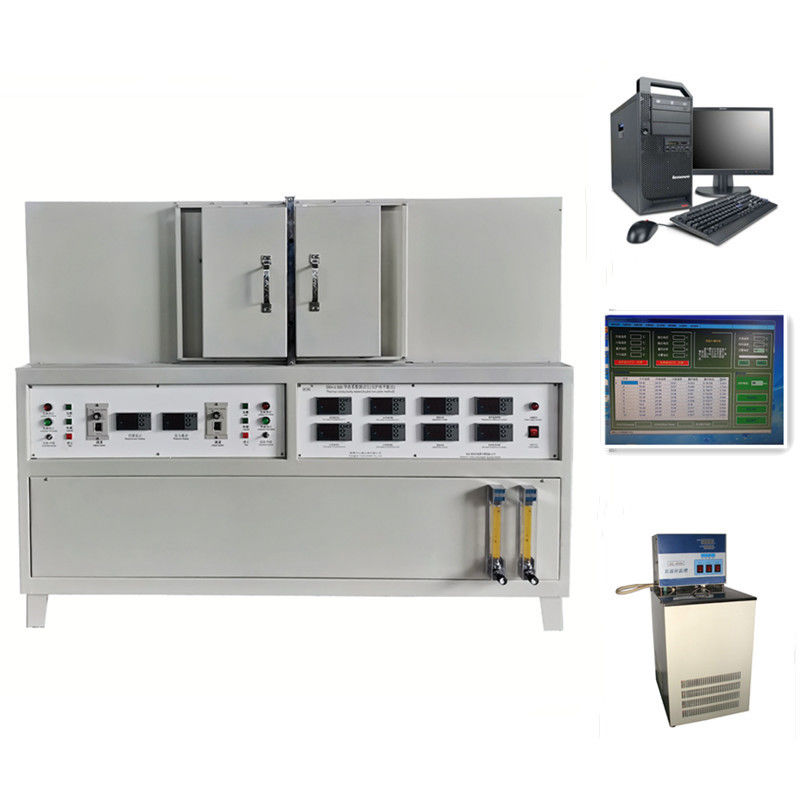

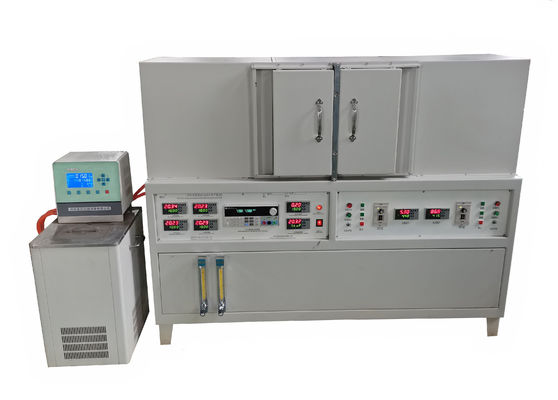

This instrument is based on the principle of unidirectional stable heat conduction. When the upper and lower surfaces of the sample are at different stable temperatures, it measures the heat flow through the effective heat transfer area of the sample, as well as the temperature difference and thickness between the two surfaces of the sample, and calculates the thermal conductivity. It meets the high-precision testing requirements of material testing research departments for the thermal conductivity of materials. It mainly tests plastics, glass, fibers, foams, insulation materials, etc. It is widely used in material analysis and testing in universities, research institutions, quality inspection departments, and production factories.
2.Standard

GB/10294-2008 (Determination of Steady-State Thermal Resistance and Related Properties of Thermal Insulation Materials - Protective Heat Plate Method)
GB/T 3399-1982 (Test Method for Thermal Conductivity of Plastics - Heat Insulation Plate Method)
GB/T 3139-2005 (Test Method for Thermal Conductivity of Fiber-Reinforced Plastics) (Test Method for Thermal Conductivity of Fiberglass Reinforced Plastics).
The requirements for measuring the thermal conductivity of polyurethane rigid foam materials in GB/T10801.1-2002 (Insulation Polystyrene Foaming Plastics)
The requirements for measuring the thermal conductivity of extruded polystyrene foam plastic (XPS) in GB/T10801.2-2002 (Thermal Insulation Extruded Polystyrene Foam Plastic)
GB/T 3139-2005 (Test Method for Thermal Conductivity of Fiber-Reinforced Plastics)
The requirements for measuring the thermal conductivity in GB/T 17794-2008 (Flexible Foam Rubber and Plastic Insulation Products).

3.Feature:

1. Automatic thickness measurement: Utilizing high-precision displacement sensors for measurement and connecting to a computer for automatic thickness measurement, thereby reducing human error.
2. Automatic Pressurization System: The system automatically applies pressure, enabling tests to be conducted under various pressure conditions to measure the thermal conductivity. This method is more scientific, data-LRiven, and has higher repeatability compared to manual pressure application.
3. Using dual-platen detection, the accuracy is even higher.

4.Technical Parameter.
