ISO 2813 Economic Gloss Meter Glossness Measuring Equipment 60 Degree

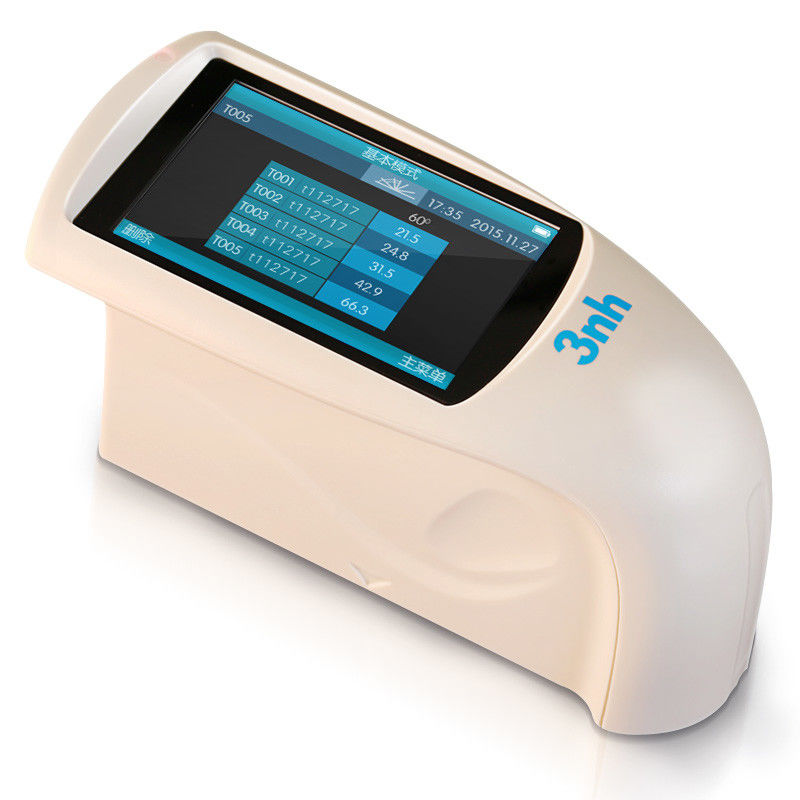

Large Image : ISO 2813 Economic Gloss Meter Glossness Measuring Equipment 60 Degree

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Model Number:	HG60

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Supply Ability:	200 pieces

Contact Now

ISO 2813 Economic Gloss Meter Glossness Measuring Equipment 60 Degree

Description

Dimension:

160mm*75mm*90mm

Weight:

350g

Measuring Angle:

60°

Measuring Range:

0~300GU

Highlight:

Economic Gloss Meter

Gloss Meter 60 Degree

Glossness Measuring Equipment

ISO 2813 HG60 Economic Gloss Meter Glossness Measuring Equipment 60 Degree

1. Introduction
HG60 Glossmeter has 60° angle and is manufactured according to ISO2813 and GB/T 9754 standards. It also complies with international standards such as ASTM D523, ASTM D2457, etc. The HG268 meets the operational requirements of the JJG696 Class I gloss meter, which corresponds to CIE 1931 (2°) under CIE C light sources.
HG60 Gloss Meter is widely used in automotive, paint, ink, degreasing varnish, coatings, wood products; marble, granite, glass polished tiles, ceramic tiles and porcelain; plastics, paper; hardware industry, and other industries gloss test.

2. Features

1.       60° angle for semi gloss
2.       Concise appearance, feel good
3.       Display 5 sets of measurement data, good for comparison
4.       Built-in lithium ion rechargeable battery
5.       Basic model measurement can meet basic glossiness testing requirements
6.       Connect to PC, more extend functions
7.       One button for all angles measurement at the same location
8.       Comply with international standards
9.       Stable performance, easy to read data.

3. GQC6 Software Introduction
GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.

4. Specifications

HG60 Economic Gloss Meter
HG60 Economic Gloss Meter
Model:	HG60
Measuring Angle	60° Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm)	9x15
Measuring Range	0~300GU
Division Value	0.1GU
Measurement Range Repeatability Reproducibility	0-10GU 10-100GU 100-300GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard	Conform with JJG696 first class gloss meter working requirement
Chromaticity Corresponding	Corresponding with CIE 1931(2°) under CIE C light source
Errors	±1.5 , ± 1.5%
Measuring Time	0.5s
Dimension	LWH : 160mm75mm90mm
Weight	350g
Language	Chinese/English
Battery	3200mAh Li-ion Battery ,>10000 times(within 8 hours)
Display	TFT 3.5 inch
Interface	USB/RS-232
Storage	Basic mode: 1000
Software	GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature	0~40ºC(32~104°F)
Storage Temperature	-20~50ºC(-4~122°F)
Humidity	<85% relative humidity, no condensation
Standard Accessories	Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate
Optional Accessories	Miniature Printer
Note	The specifications are subject to change without notice.
