NR200 Colorimeter Aperture 8mm Color Difference Detection Tool

I'm Online Chat Now

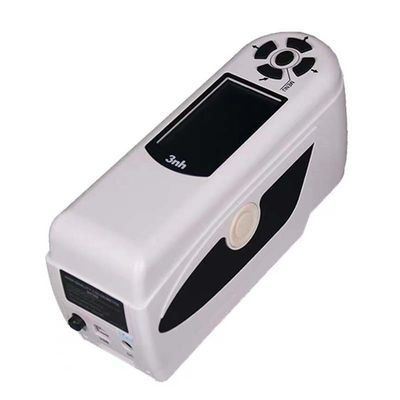

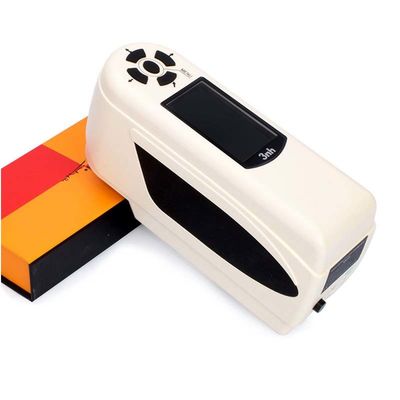

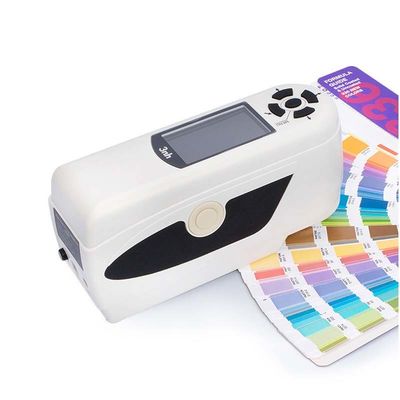

NR200 Colorimeter Aperture 8mm Color Difference Detection Tool

NR200 Colorimeter Aperture 8mm Color Difference Detection Tool
NR200 Colorimeter Aperture 8mm Color Difference Detection Tool NR200 Colorimeter Aperture 8mm Color Difference Detection Tool NR200 Colorimeter Aperture 8mm Color Difference Detection Tool

Large Image :  NR200 Colorimeter Aperture 8mm Color Difference Detection Tool

Product Details:
Place of Origin: China
Brand Name: Lonroy
Model Number: NR200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden package
Delivery Time: 5-8 work days
Supply Ability: 200 pieces

NR200 Colorimeter Aperture 8mm Color Difference Detection Tool

Description
Dimension: 205×70×100 Mm Weight: 500g
Measuring Aperture: Φ8mm Power Source: Rechargeable Lithium-ion Battery 3.7V@3200mAh
Highlight:

8mm Color Difference Detection Tool

,

Colorimeter Color Difference Detection Tool

NR200 Colorimeter Aperture 8mm Color Difference Detection Tool
1. Introduction

NR200 is another mainstream brand colorimeter launched by 3nh, which combines the advantages of more than ten kinds of traditional imported colorimeters, after tens of thousands of tests, and applies a number of innovative technologies. It is accurate, stable, delicate and affordable!



2. Leading Humanity Design and Convenient Operation
One-touch access to measurement interface
Structure design in line with ergonomics
East-to-use operating interface



3. Stable Measurement Performance
The repeatability △E is 0.08.
Portable structure design which is more conductive to keeping the instrument stable when using.



4. Convenient and Fast Locating
Illumination locating is a fast, simple and convenient locating which created by 3nh.



5. PC Software-Realize More Function Expansion
3nh has the intellectual property of PC software. The corresponding software serial number and password protection are configured in 3nh colorimeter.
Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.



6. Advanced Power Management Design
3nh is the first enterprise using high capacity Li-ion battery in colorimeter.
3nh Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than 3000 times on one charge to ensure the stability of long time measurement.



7. NR200 Specifications

Illuminating/Viewing Geometry 8/d
Measuring Aperture Φ8mm
Detector Silicon photoelectric diode
Color Space CIEL*a*b*C*h* CIEL*a*b*
Color Difference Formula △E*ab △L*a*b △E*C*h
Light Source D65
Light Source Device LED blue light excitation
Errors Between Each Equipment ≤0.50ΔE*ab
Storage 100pcs standards 20000pcs samples
Repeatability Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
Weight 500g
Dimension 205×70×100 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 3 years, more than 1 million measurements
Charging Time 2 hours (First time 8 hours--100% electricity)
Measurement Times Before Recharging More than 3000 times
Operating Temperature/Humidity Range -10~40ºC, relative humidity 0~85% with no condensation
Data Interface USB
Optional Accessory Miniature thermal printer, Powder Test Box
