1.Description

      During operation, place the container holding the material to be dispersed into the machine, secure it with a special clamping device, set the desired dispersion time, and then use the machine's high-speed rotation and vibration to quickly and effectively disperse the material. This process is characterized by its simplicity, convenience, and excellent dispersion results, with no leakage of volatile substances, no pollution, and the ability to effectively improve the production environment in workshops or laboratories.

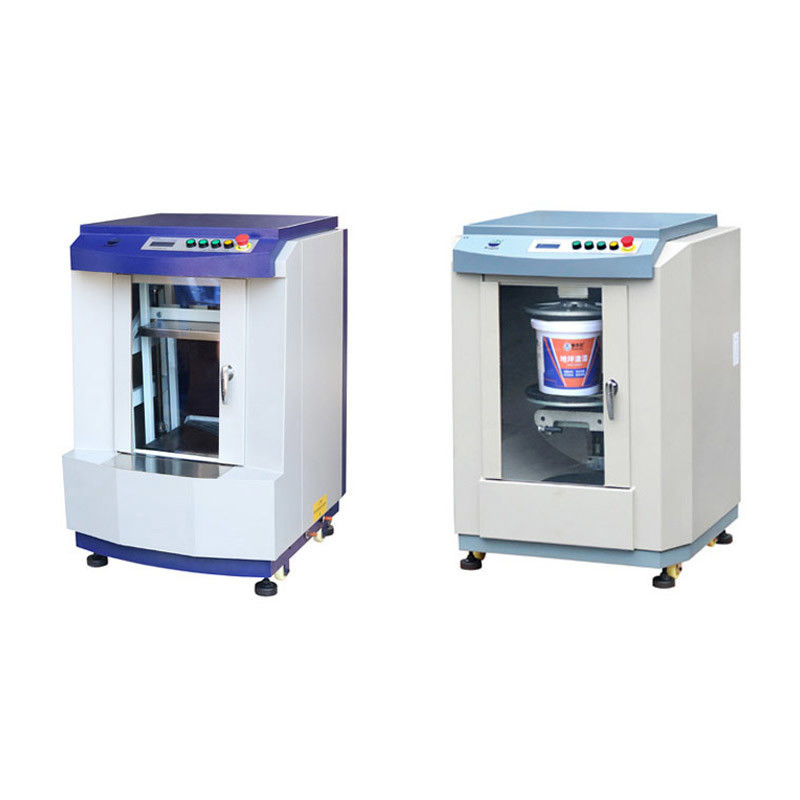

Based on their working principles, these closed-type paint mixers are divided into two types: vibrating and rotating. Vibrating mixers continuously shake the container up, down, forward, and backward at high speeds; rotating mixers simultaneously perform both orbital and rotational movements.
Features:
Manual Vibrating Machine
* Door-opening shutdown protection device-safety interlock: prevents the door from being opened while the machine is running, ensuring safety and reliability.
* The inner container support platform can be pulled out, rotated, and fixed, saving time and effort during use.
* Manual container clamping allows for adjustable clamping force, suitable for containers of any style.
* Door-opening shutdown protection device-safety interlock: prevents the door from being opened while the machine is running, ensuring safety and reliability.
* The inner container support platform can be pulled out, rotated, and fixed, saving time and effort during use.
* Manual control of container clamping allows for independent selection of clamping force, suitable for containers of any style.

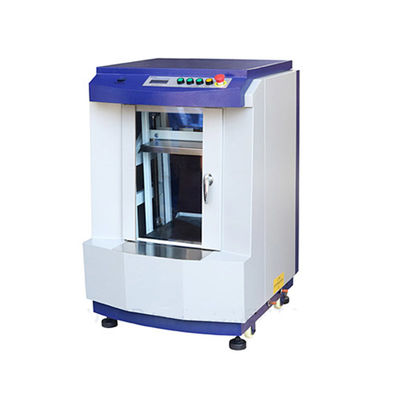

Automatic Shaker
* Custom-developed chip control technology, intelligent, visual, and user-friendly human-machine interface.
* Automatic self-check program upon startup.
* Pre-set mixing time, with the entire working status displayed on the LCD screen.
* Automatically detects container size and adjusts the height of the pressure plate.
* Automatically clamps and releases the container, automatically adjusting the clamping force according to the container size.
* Work parameters (such as language, clamping force, etc.) can be adjusted/set via the control panel.
* Faults can be detected via the code displayed on the LCD screen.
* Work in progress can be stopped or work time extended via panel buttons.
* Trapezoidal structure + machine and housing separation design, ensuring smooth vibration and low noise.
* Emergency stop switch and dual door lock structure (National Patent: Patent No. ZL 2007 2 0052568.3) for safety assurance.
* Drum design for easy loading and unloading of containers.
Automatic rotary machine
* Custom-developed chip control technology, intelligent, visual, and user-friendly human-machine interface.
* Automatic initialization upon startup.
* After startup or when the emergency stop button is pressed, if the clamping mechanism is already in the vertical position, initialization is not required to enter the working state.
* Pre-set mixing time, with the entire working status displayed on the LCD screen.
* Automatically detects container size and adjusts the clamping plate height.
* Automatically clamps and releases containers, automatically adjusting clamping force based on container size.
* Work parameters (such as rotation direction, speed, language, clamping force, etc.) can be adjusted/set via the control panel.
* Automatically clamps and releases containers. Multi-stage variable frequency speed control technology automatically adjusts speed, pressure, etc.
* 7200 forward/reverse rotation technology (National Patent: Patent No. ZL 2007 2 0052569.8), with multiple rotation modes available.
* Emergency stop switch and dual door lock structure (National Patent: Patent No. ZL 2007 2 0052568.3) ensure safety.
* Motor brake positioning replaces outdated electromagnetic iron technology, offering higher efficiency and reliability.
* Fault detection via code display on the LCD screen.
* Ability to stop ongoing operations or extend working time via panel buttons.
* Adjustable lower clamping plate for easy loading and unloading of containers.

2.Technical Parameter.
