Product Details:
|
| Overall Size(L×W×H),mm: | 123mm×38mm×65mm | Net Weight,g: | 300 |
|---|---|---|---|
| Power Supply: | DC:1.2~1.5;One AA-size Battery | Spot Size: | 20mm×10mm |
| Warranty: | 1 Year | Certification: | Includes Calibration Certification |
| Highlight: | astm paint testing equipment,astm paint testing instruments |
||

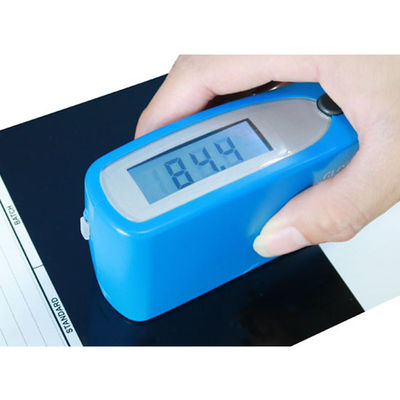

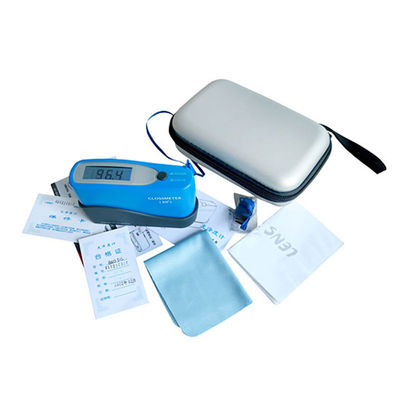

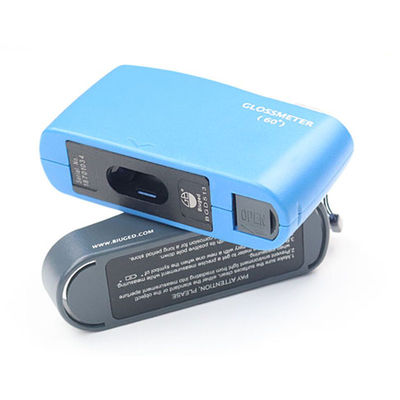

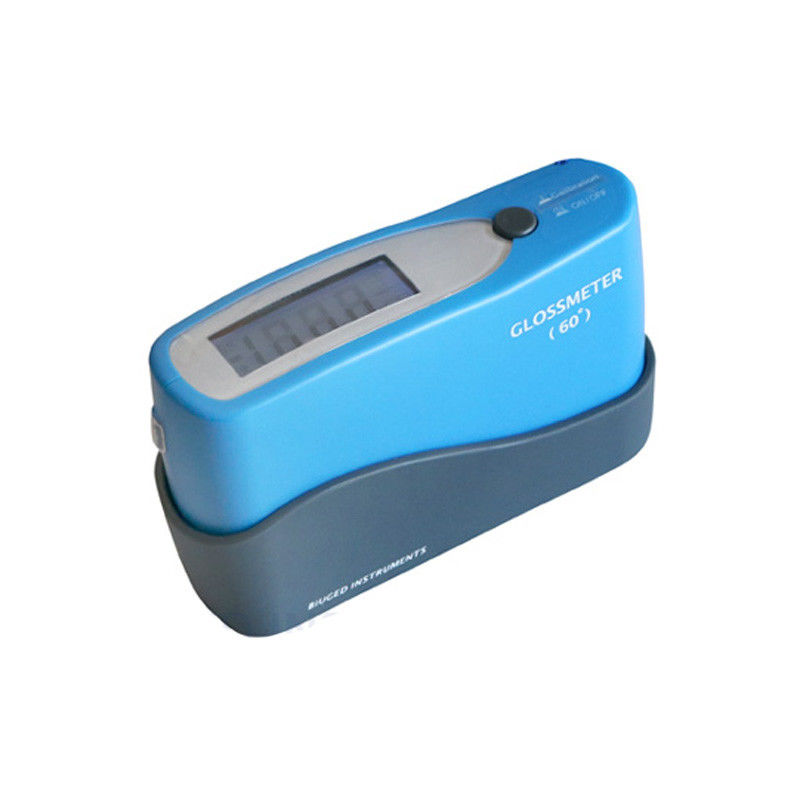

BGD 513 ISO 2813 ASTM D 523 Basic Glossmeter
1.Description
BGD 513 Basic Glossmeter uses plastic shell and one-body standard board.It can be used in many fields as below:
→ All kinds of coating and finishing surfaces,such as paints,varnishes,printing ink,etc.
→ Decorative materials,such as marble,granite,polishing brick,ceramic tile and so on.
→ The other kinds of materials and objects,such as plastic,woodenware,paper,etc.
At the same time, it has better characters comparing with old types:
* Small,Smart,Stable.
* Simple to use.
* A single battery only.AA size,Rechargeable or alkaline.
* The knob protector for operating with ease.
Features:
* Conform ISO 2813, ASTM D 523, ASTM D 2457 etc
* Calibrate automatically and operate by one button,simple to use
* One type of design, standard board as base,small size for portable
* Come with blue-tooth and software, convenient to transmit and save datas
* A single battery(AA alkaline or rechargeable)can last 60 hours.
* Protect measuring window by special scratch-resist coatings to avoid scratching by samples.
2.Technical Parameter.
| Reading Range | 0.0~199.9 GU |
| Indication Error | ≤ 1.2 GU |
| Zero Error | ≤ 0.2 GU |
| Stability | ≤ 0.4 GU |
| Spot Size | 20mm×10mm |
| Measuring Window Size | 30mm×14mm |
| Incidence Angle | 60 Deg. |
| Volume (L×W×H) | 123mm×38mm×65mm |
| Net Weight | 300g |
| Power Supply | DC:1.2~1.5;One AA-size battery |
| Ordering Information | BGD 513/1 Intelligent Glossmeter (0.1 GU) BGD 513/2 Intelligent Glossmeter (1.0 GU) |
