Product Details:
|
Dimension: | 66mm (W) × 158mm (H) × 85mm (D) | Weight: | 420g |
---|---|---|---|
Power Supply: | 4 AA Batteries | Display Modes: | Δ(L*a*b), ΔEab, Δ(LCh*) |
Warranty: | 1 Year | Certification: | Includes Calibration Certification |
Highlight: | Konica Minolta Plus Color Reader,Portable Plus Color Reader,ASTM Portable Colorimeter |

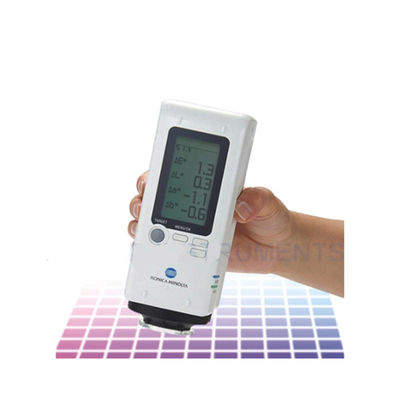

Konica Minolta CR-10 Plus Color Reader
1.Description
KONICA MINOLTA CR-10 Plus Color Reader, as a new generation of economical portable colorimeter, is an upgraded model of CR-10 (currently discontinued). On the basis of the original lightweight, flexible and portable, it has a built-in computer application program, which realizes the connection with the computer and further expands the scope of data management, meets the frequent and rapid on-site measurements of the quality inspectors and gives them instant results, and helps enterprises achieve efficient supplier and product quality control.
KONICA MINOLTA CR-10 Plus Color Reader adds a Chinese language interface with a larger LCD display for easy reading of test data, and a standard LED indicator for pass/fail determination. At the same time, its parameters can also be set by computer (with software), the instrument can store up to 1000 sets of data and can be uploaded to the user's computer through the standard USB cable.
2.Technical Parameter
Illumination/Observation Optical System | 8/d (8° illumination angle/diffuse receiving mode; includes specular reflection, compliant with ISO 7724/1F, CIE No.15, ASTM E 1164) |
Measuring Aperture | Standard: 8mm aperture; Optional: 5mm aperture |
Display Modes | Δ(L*a*b), ΔEab, Δ(LCh*) |
Display Content | Color difference value, average value (up to 10 measurements), pass/fail judgment |
Languages | Chinese, English, Japanese |
Repeatability | Standard deviation ΔE*ab ≤ 0.1 (when measuring white calibration plate) |
Measurement Conditions | CIE 10° standard observer; CIE D65 light source |
Measurement Time | Approx. 1 second |
Power Supply | 4 AA batteries (alkaline or Ni-MH rechargeable), USB bus power, or optional dedicated power adapter |
Dimensions/Weight | 66mm (W) × 158mm (H) × 85mm (D); 420g (without batteries) |
