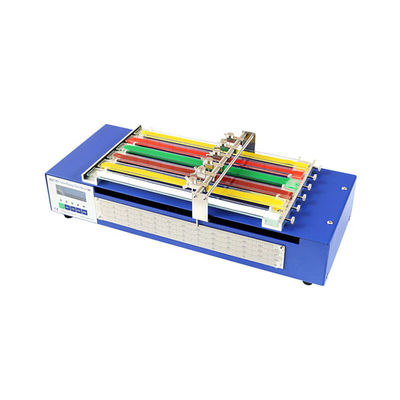

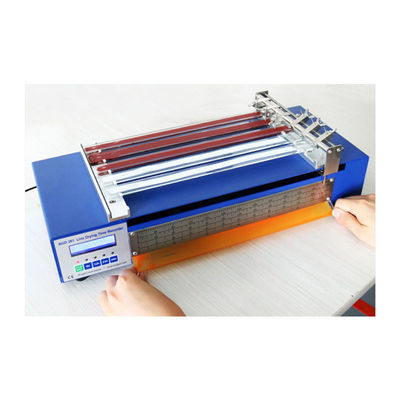

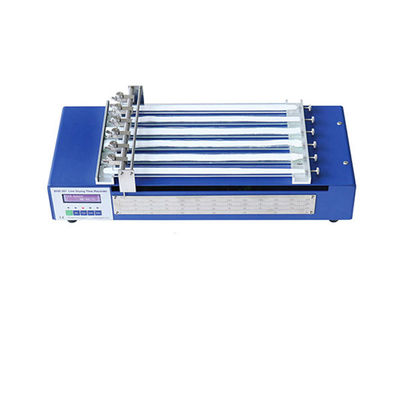

BGD 261 ASTM D 5895 Line Drying Time Recorder

BGD 261 ASTM D 5895 Line Drying Time Recorder
BGD 261 ASTM D 5895 Line Drying Time Recorder BGD 261 ASTM D 5895 Line Drying Time Recorder BGD 261 ASTM D 5895 Line Drying Time Recorder BGD 261 ASTM D 5895 Line Drying Time Recorder BGD 261 ASTM D 5895 Line Drying Time Recorder

Large Image :  BGD 261 ASTM D 5895 Line Drying Time Recorder

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: BGD 261
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200

BGD 261 ASTM D 5895 Line Drying Time Recorder

Description
Size: 500mm × 230mm × 155mm Stylus Diameter: 2mm ±0.05mm
Included Weights: 6 Stainless Steel Weights Testing Speeds: 6 Hrs, 12 Hrs, 24 Hrs, 48 Hrs
Warranty: 1 Year Certification: Includes Calibration Certification
Highlight:

astm paint testing equipment

,

astm line drying time recorder

,

drying paint testing equipment

BGD 261 ASTM D 5895 Line Drying Time Recorder

1.Description

Drying Time
When developing a process, it is important to know the exact time it takes for a coating to dry or cure. Coating drying time is divided into several stages. After the coating is applied, the first stage is when the coating levels out under gravity. Once the coating begins to cure, a thin dry film appears on the surface.
But how do you know when the coating is completely dry?
With the BGD Drying Time Recorder, operators can easily identify each stage of the drying process.
A ball is placed in the coating and the recorder starts to move the ball at a predetermined speed, the mathematical formula being: distance = speed x time. As the coating dries, the ball leaves a trail in the coating that identifies each stage of curing.

Production Line Drying Time Recorder
The stages of film drying and curing are easy to detect, but difficult to define chemically and physically. To evaluate them satisfactorily, it is necessary to use instruments under controlled conditions.
BGD offers a versatile Drying Time Recorder to help quantify the various stages of film curing and drying, providing repeatable results and ensuring maximum efficiency.
This reliable instrument can test the drying time or gelation behavior of many paints and coatings by applying them via our cube applicator (BGD 203) on a 330 mm x 24 mm glass strip.
The drying time of each stage can be easily evaluated by means of a scale (configured according to the traverse speed). The total time for each test can be observed on the LCD screen.
1. solvent evaporation: deep pear-shaped blots
2. sol-gel transition: continuous trace
3. surface drying: interrupted trace
4. final drying time: needle no longer penetrates film

2.Technical Parameter

Simultaneous Testing Capacity 6 samples (time-saving)
Testing Speeds 6 hrs, 12 hrs, 24 hrs, 48 hrs (adjustable for different applications)
Stylus Diameter 2mm ±0.05mm (with rounded tip; includes 6 pcs)
Included Weights 6 stainless steel weights (5 grams each) for drying recording
Certification Calibration certificate included
Compliance Standards ASTM D 5895-03, ISO 9117-4
Overall Dimensions 500mm × 230mm × 155mm (L × W × H)
