1. Introduction

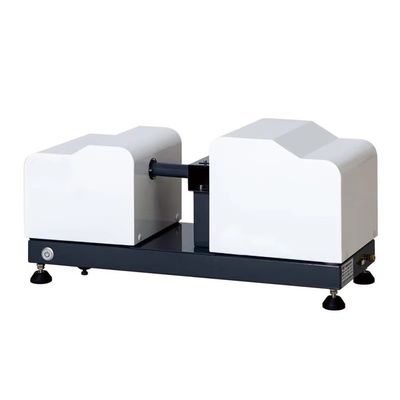

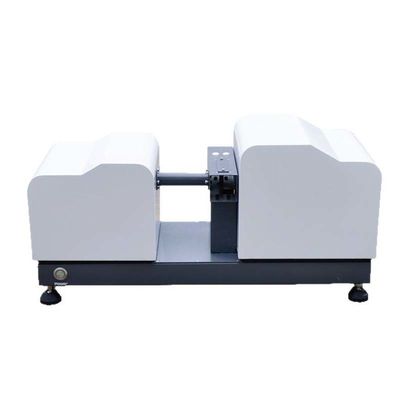

In order to meet the needs of our customers for small spray equipment droplet size testing, we have developed a LR-N010 Miniature Benchtop Spray Laser Particle Sizer. The LR-N010 is designed with a unique all-in-one structure, incorporating portable design concepts to make the instrument's performance more stable. The LR-N010 is designed to meet the particle size requirements of most users in the spray equipment industry. The LR-N010 is designed to meet the requirements of most users in the spray equipment field. The LR-N010 is also equipped with a scientific dust-proof treatment, which can be adapted to a variety of complex testing environments.

2. Scope of application
LR-N010 is suitable for droplet size testing of medical nebulizers, atomized pharmaceuticals, various aerosols, sprays and other small spraying devices.

3. Main performance characteristics
The LR-N010 is small and compact, realizing true portability in the field of particle size analyzers, so you can take it with you wherever you go.
LR-N010 adopts the most advanced integrated structure design in the field of spray particle sizer. The integrated structure is more stable, which ensures the high stability of the instrument performance. At the same time, the LR-N010 optical path adopts the most advanced dustproof and shockproof design, no matter where the instrument is moved, there is no need to make secondary adjustments to the optical path, which greatly improves the customer's testing efficiency. Unlike the spray particle size testers produced by some particle size tester manufacturers, the optical path must be adjusted manually every time the instrument is moved, which brings a lot of trouble to the test work and greatly shortens the service life of the instrument.
Advanced optical path design:
LR-N010 adopts fraunhoffer diffraction principle and typical parallel optical path design, and adopts single-optical path and multi-lens technology. The unique high-density detection unit enables  LR-N010 to have super small-particle testing ability. LR-N010 achieves seamless testing within 0.1μm ~ 270μm.
High-power fiber output laser:
 LR-N010 is equipped with imported high-power fiber output semiconductor laser, with stable performance and a life of more than 25,000 hours, which greatly enhances the resolution of the instrument and makes small particles have no place to hide.
Optical path protection:
 LR-N010 has multiple protection functions, and the unique airflow protection of the instrument in the test process can effectively prevent fog droplets from splashing on the lens and affecting the test effect and service life of the instrument. In terms of design,  LR-N010 effectively avoids the influence of external natural light on test results, making test results authentic and reliable.
Ultra wide range:
The design range of LR-N010 reaches 0.1μm ~ 340μm, which can meet the particle size testing requirements of most users in the field of spray equipment.
Powerful analysis software:
 LR-N010 is equipped with the most powerful analysis software of spray particle size analyzer in China at present, which can quickly process all light scattering signals of laser beam droplets during the test process and convert them into real-time display of particle size distribution. In order to effectively ensure that the test results have super representative, the technology is in an absolute leading position in China.

4. Technical parameters
