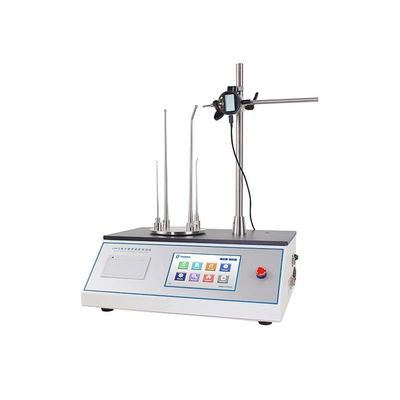

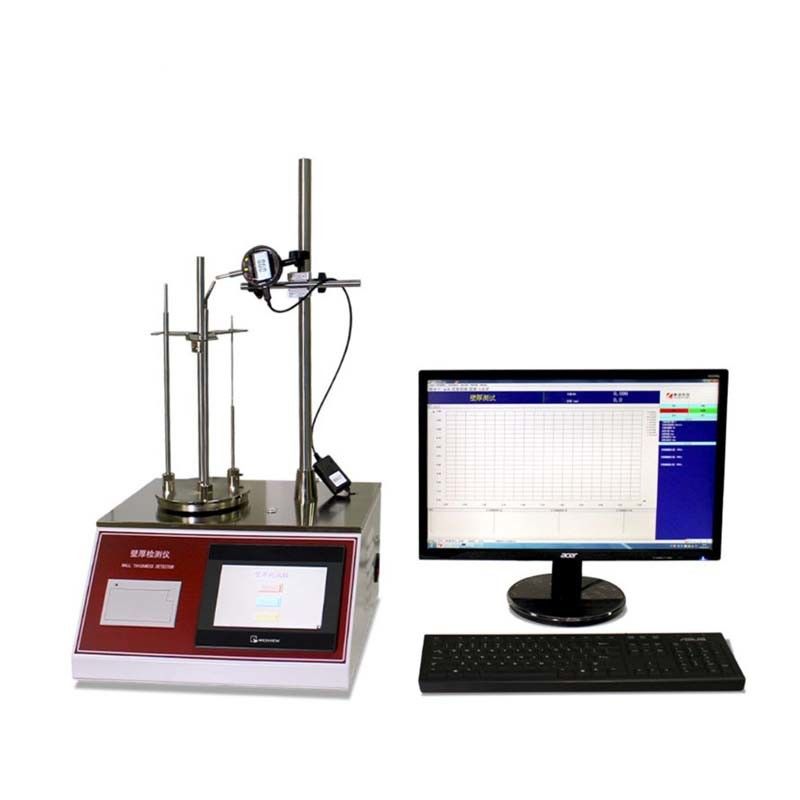

Electronic Bottle Bottom Wall Thickness Tester Thickness Gauge Meter

Electronic Bottle Bottom Wall Thickness Tester Thickness Gauge Meter
Electronic Bottle Bottom Wall Thickness Tester Thickness Gauge Meter Electronic Bottle Bottom Wall Thickness Tester Thickness Gauge Meter

Large Image :  Electronic Bottle Bottom Wall Thickness Tester Thickness Gauge Meter

Product Details:
Place of Origin: China
Brand Name: Lonroy
Model Number: LR-F064
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Supply Ability: 200
Contact Now

Electronic Bottle Bottom Wall Thickness Tester Thickness Gauge Meter

Description
Out Size: 400(L) X 360(W) X 700(H)mm Measure Range: 0-12.7mm/0.5
Dividing value: 0.001mm/0.00005″ Power: 220V/50Hz/60W
Highlight:

Bottle Thickness Gauge Meter

,

Electronic Bottle Thickness Tester

,

Gauge Thickness Tester

Electronic Bottle Bottom Wall Thickness Gauge Thickness Tester

1. Product Character

1. 7-inch touch color LCD screen, microcomputer control, maximum value, minimum value and average value are automatically grouped and statistically analyzed.
2. The rotation Angle displacement is displayed in real time to ensure accurate measurement.
3. It meets two testing methods for the bottom thickness and wall thickness of glass bottles.
4. The new type of bottle clamp device on the measuring table supports up and down adjustment, making the test simple and convenient.
5. This system has the micro-printing function and the upper computer data can be stored infinitely.
6. Professional computer testing software, curve graph display, data saving, EXCEL statistics, and A4 test report printing.
7. Software users hierarchical authority management, data statistics and auditing functions meet industry requirements.


2. Test Principle
To ensure that the medicine is not damaged during logistics transportation, storage and use, and to prevent the loss of the liquid medicine and possible harm to patients, the thickness of the bottle wall and bottom of the oral liquid bottle is inspected. Only when the bottle body reaches a certain thickness can the risk of damage be effectively reduced.



Test Standard
Ybb00332002-2015 low borosilicate glass ampoules
Ybb00332003-2015 sodium calcium glass controlled injection bottle
Ybb00032004-2015 sodium calcium glass controlled oral liquid bottle
GB 12415-90 test methods for internal stress in medical glass containers

3. Application Area

Basic Application Wall thickness bottom thickness test It is suitable for testing glass ampoules, glass controlled drugs bottles, glass molded medicine bottles, glass controlled injection bottles, glass molded injection bottles and oral liquid bottles.
Wall thickness bottom thickness test It is suitable for testing glass infusion bottle, beer bottle, liquor bottle, wine bottle, mineral water plastic bottle and carbonated beverage plastic.


4. Techncial Specification

Item Speicification
Measure range 0-12.7mm/0.5
Dividing value 0.001mm/0.00005″
Sample diameter 5mm-300mm (Can customize)
Sample Height 5mm-330mm (Can customize)
Out size 400(L) X 360(W) X 700(H)mm
Communication connect USB connect
Environment temperature 15-50ºC
Environment humidity 10-90%,non condensing
Power 220V/50Hz/60W
