Fiber Specific Resistance Tester Digital Specific Resistance Testing Instrument

Fiber Specific Resistance Tester Digital Specific Resistance Testing Instrument
Fiber Specific Resistance Tester Digital Specific Resistance Testing Instrument Fiber Specific Resistance Tester Digital Specific Resistance Testing Instrument Fiber Specific Resistance Tester Digital Specific Resistance Testing Instrument Fiber Specific Resistance Tester Digital Specific Resistance Testing Instrument Fiber Specific Resistance Tester Digital Specific Resistance Testing Instrument

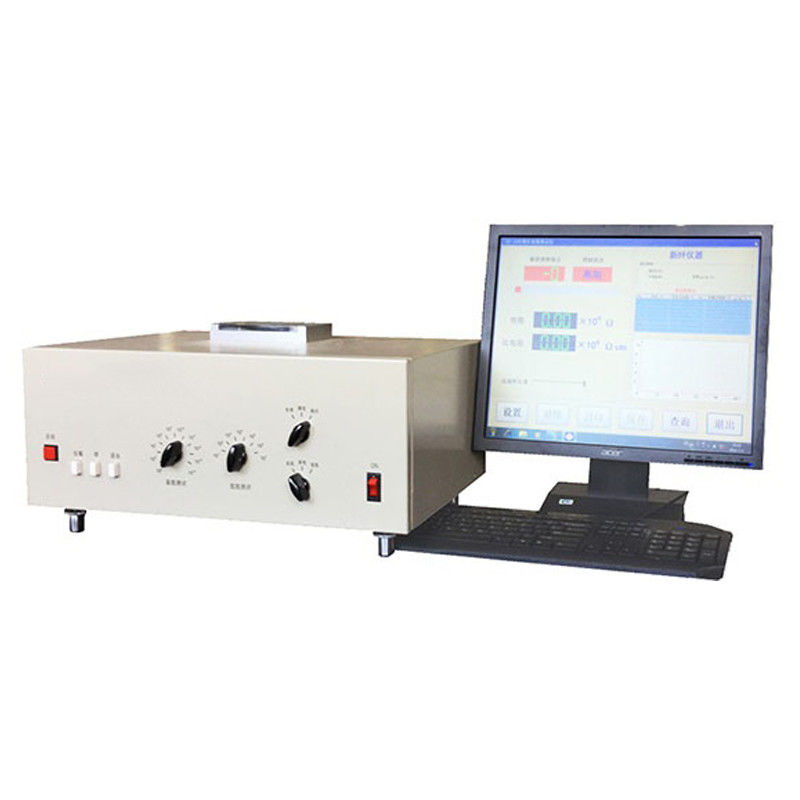

Large Image :  Fiber Specific Resistance Tester Digital Specific Resistance Testing Instrument

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: GA-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200 pieces
Contact Now

Fiber Specific Resistance Tester Digital Specific Resistance Testing Instrument

Description
Warranty: 1 Year Customization: Available
Highlight:

Fiber Specific Resistance Tester

,

Digital Specific Resistance Tester

,

Digital Specific Resistance Testing Instrument

Fiber Specific Resistance Tester Digital Specific Resistance Testing Instrument

1.Product Introduction
The GA-3A type fiber specific resistance tester is a newly developed digital specific resistance tester. The instrument digitally displays the test results in real time through high-precision AD conversion, and the operation process is controlled by a computer. The test results can be displayed, printed and stored.
The instrument has a precise structure and accurate, stable test results. The instrument automatically compresses the chemical fibers in the measuring box, replacing the manual operation of turning the hand crank to compress the sample. The operation is simple. An additional device can be selected for testing the specific resistance of synthetic fibers.
The instrument complies with the requirements of the national standard GB/T 14342-2015 for test methods and is suitable for the specific resistance tests of various chemical fibers and natural fibers. It can be widely used in chemical fiber, textile enterprises, testing institutions and research units.

2.Product Paramter

Resistance measurement resolution 0.01(10nΩ,n = 1, 2, 3, … , 14)
Resistance measurement range 10Ω~1014Ω
Resistance measurement error ≤±5%(resistance
≤1012Ω),≤±10%(resistance
>1012Ω)
Test voltage Two settings: 1V and 100V. High resistance measurement range:105Ω to 1014Ω (measurement voltage: 100V), Low resistance measurement range: 10Ω to 107Ω (measurement voltage: 1V)
Voltage deviation ≤±3%
Test box When the sample is in a compressed state, the fibers occupy 4 cm of the width of the electrode plate, 6 cm of the height of the plate, and a 2 cm distance between the plates. The insulation resistance between the two electrodes should be no less than 1014Ωor no less than 10 times the expected value of the fiber's resistivity.
Test sample Chemical fibers, chemical fiber yarns (with optional additional devices)
Calibrated resistance Three resistors, namely 102Ω, 106Ω and 1010Ω
Power supply AC 220V ±10%
