Yarn Tensile Tester Lab Test Machine Long Filament Yarn Tensile Strength Tester

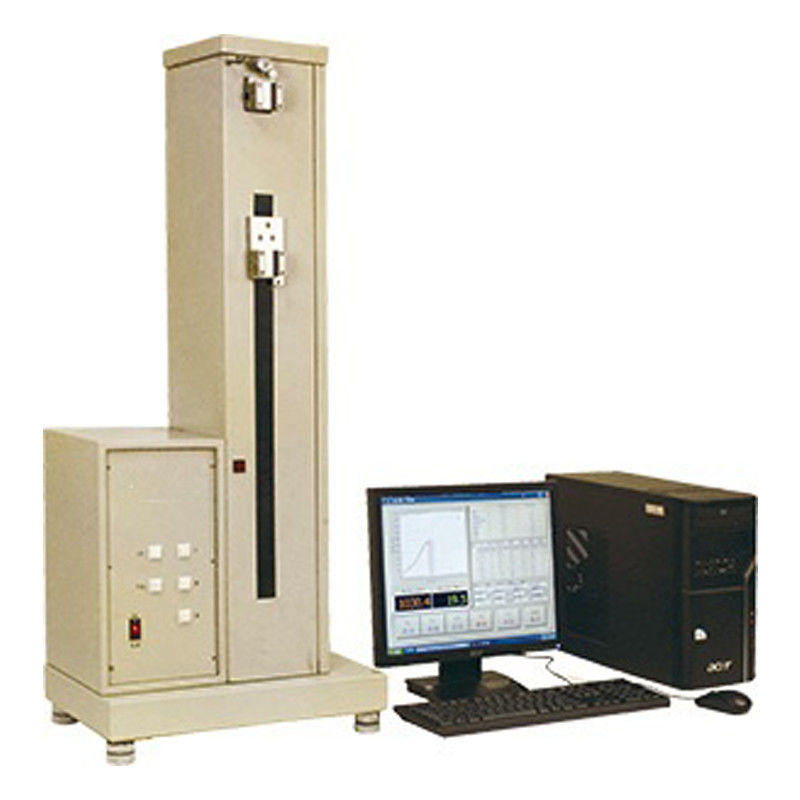

Large Image : Yarn Tensile Tester Lab Test Machine Long Filament Yarn Tensile Strength Tester

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	GA-7X

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	D/A,L/C,D/P,T/T,Western Union
Supply Ability:	200 pieces

Contact Now

Yarn Tensile Tester Lab Test Machine Long Filament Yarn Tensile Strength Tester

Description

Warranty:

1 Year

Customization:

Available

Highlight:

Yarn Lab Test Machine

Long Filament Lab Test Machine

Lab Yarn Tensile Strength Tester

Long Filament Yarn Tensile Strength Meter Yarn Tensile Tester Yarn Analyzer

1.Product Introduction
The GA-7X type long filament yarn tensile strength tester can perform tests such as fiber fixed elongation elasticity, cyclic fixed elongation elasticity, fixed load elasticity, cyclic fixed load elasticity, relaxation, and creep. The testing methods comply with the requirements of the International Organization for Standardization and are suitable for the performance testing of elastic yarns.
The instrument can be used for the testing of breaking strength and breaking elongation of synthetic fiber monofilaments, spandex, nylon, polyester long filaments, stranded and composite filaments, and deformed filaments.

2.Product Paramter

Force value measurement range	0~1000cN
Force value measurement error	≤±1%
Force value measurement resolution	0.1cN
Extension measurement range	0~300mm(the clamping distance is 500mm)
Extension measurement error	≤0.5mm
Extension measurement resolution	0.1%
Clamping distance	250,500mm
Stretching speed	50~1000mm/min
Power supply and power consumption Dimensions of the shape	220V~±10%,50±1Hz,≤100VA
Force value measurement range	300×450×1170(L×W×H)mm
