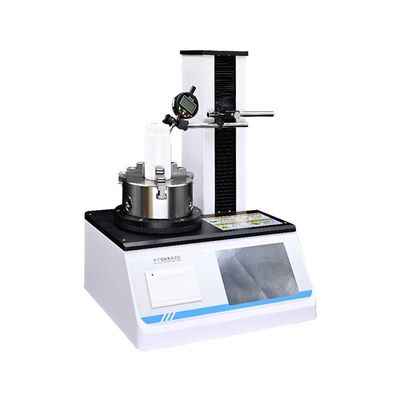

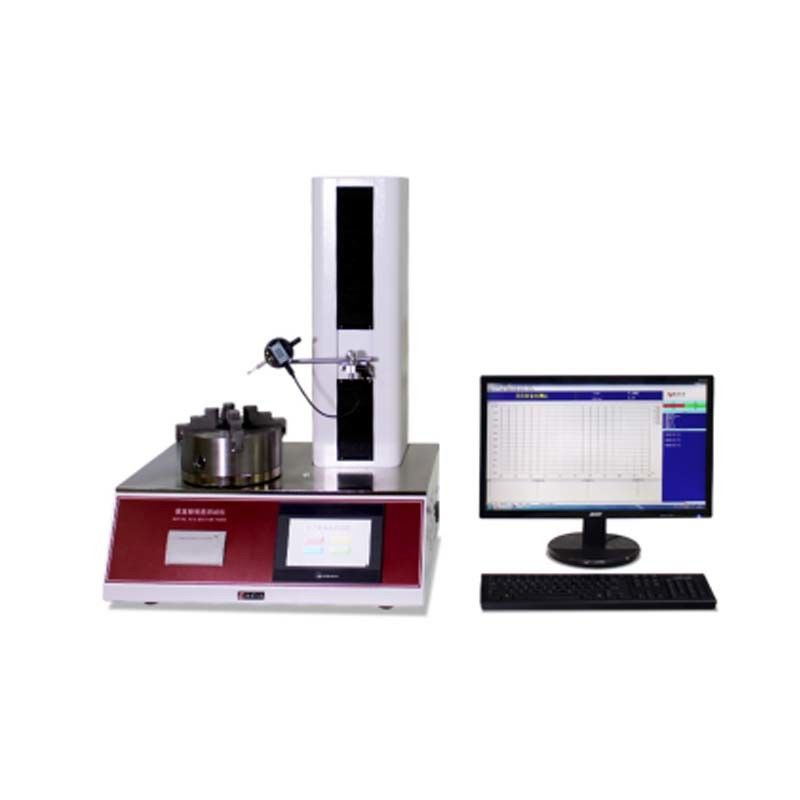

Electronic Vertical Axis Deviation Tester Bottle Verticality Deviation Test Machine

Electronic Vertical Axis Deviation Tester Bottle Verticality Deviation Test Machine
Electronic Vertical Axis Deviation Tester Bottle Verticality Deviation Test Machine Electronic Vertical Axis Deviation Tester Bottle Verticality Deviation Test Machine Electronic Vertical Axis Deviation Tester Bottle Verticality Deviation Test Machine

Large Image :  Electronic Vertical Axis Deviation Tester Bottle Verticality Deviation Test Machine

Product Details:
Place of Origin: China
Brand Name: Lonroy
Model Number: LR-F063
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Supply Ability: 200
Contact Now

Electronic Vertical Axis Deviation Tester Bottle Verticality Deviation Test Machine

Description
Display Way: 7 Inch Touch Color LCD
Highlight:

Vertical Axis Deviation Tester

,

Electronic Deviation Tester

,

Verticality Deviation Test Machine

Electronic Vertical Axis Deviation Tester Bottle Verticality Deviation Test Machine

1. Product Character

1. 7 inch touch color LCD, controlled by microcomputer, automatic grouping statistics of maximum, minimum and average value.
2. Support vertical axis deviation and circular beat mode switching, one machine dual use.
3. Measurement deviation Angle of 360 ° full compensation, to ensure that the measurements are more accurate.
4. The system has a micro printer, and the data of the upper computer is stored unlimited.
5. Professional computer measurement and control software, curve chart display, data preservation, EXCEL statistics, printing A4 test report.
6. Software users hierarchical authority management, data statistics and auditing functions meet industry requirements.


2. Test Principle
The bottle a fixed in a horizontal plate and rotating plate, make the bottle mouth contact with dial gauge, rotate 360 ° read the maximum and minimum, 1/2 of the difference between the two is the vertical axis deviation value.

Test standard
The instrument meets a number of test standards:
Ybb00332002-2015 low borosilicate glass ampoules
Ybb00332003-2015 sodium calcium glass controlled injection bottle
Ybb00032004-2015 sodium calcium glass controlled oral liquid bottle
GB/T 8452-2008 test method for vertical shaft deviation of glass bottles and cans
GB 2639, QB 2357, QB/T 1868


3. Application Area

Base application Circular runout test Suitable for round beating test of glass ampoules.
Vertical shaft deviation test It is suitable for testing vertical shaft deviation of glass controlled drug bottle, glass controlled drug bottle, glass controlled injection bottle, glass molded injection bottle, oral liquid bottle and cosmetic glass bottle.
Application Vertical shaft deviation test It is suitable for testing vertical axis deviation of glass containers such as glass infusion bottle, beer bottle, liquor bottle and wine bottle.
Vertical shaft deviation test It is suitable for testing vertical axis deviation of plastic container bottles such as mineral water plastic bottle and carbonated beverage plastic bottle.
