Product Details:
|
Size: | 210mm × 180mm × 500mm | Net Weight: | 9.2KG |
---|---|---|---|
Range: | 40.2 KU - 141.0 KU | Warranty: | 1 Year |
Certification: | Includes Calibration Certification | Package Size: | 560mm × 450mm × 280mm |
Highlight: | astm paint testing equipment,astm paint testing instruments |

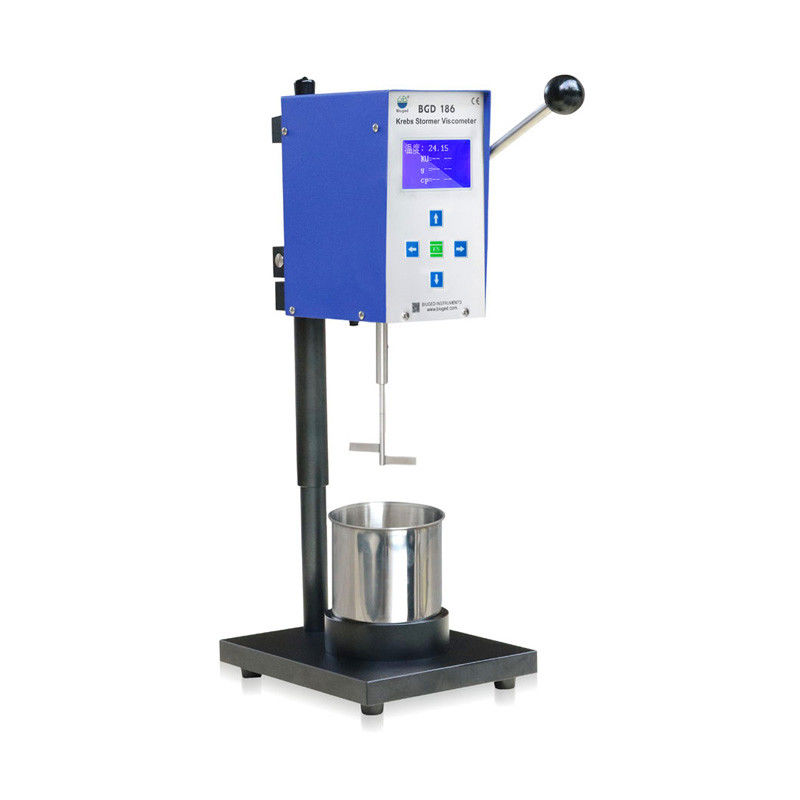

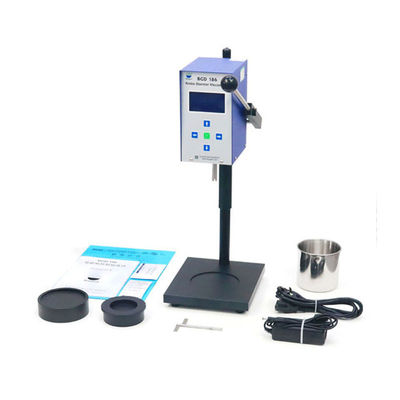

BGD 186 ASTM D 562 Intelligent Krebs Stormer Viscometer
1.Description
BGD 186 Intelligent Krebs Stormer Viscometer is designed according to ASTM D 562 and GB/T 9269 standard, it is a powerful and easy-to-operate viscometer newly developed by our company, compared with BGD 184 Stormer Viscometer, it has the following advantages:

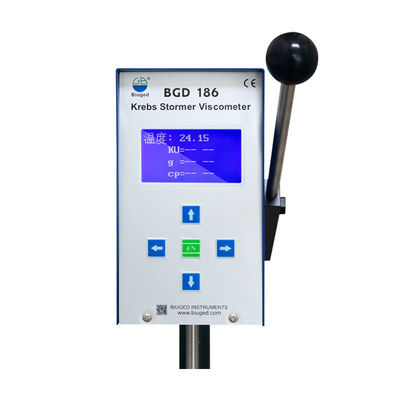

* Large-size ultra-clear liquid crystal screen display, test data is more clear.
* Simultaneously test the KU value, CP value and sample temperature value of the sample under test.

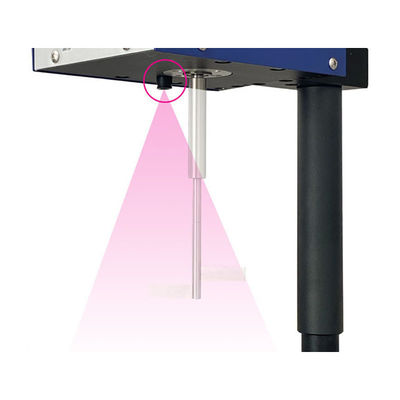

* One-piece infrared probe to test the sample temperature, no cleaning is more convenient.

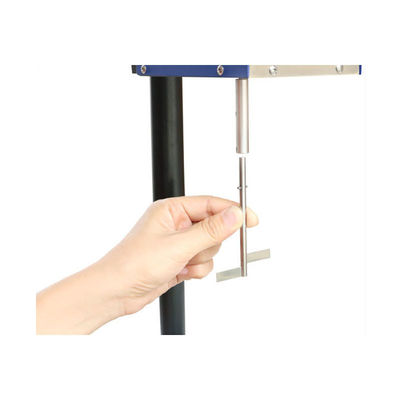

* The rotor adopts magnetic connection, convenient and quick disassembly and cleaning.
* English and Chinese languages can be switched arbitrarily.
* Designed with a calibration function, users can rely on a bottle of standard oil calibration regularly, greatly eliminating the need for other similar instruments to return to the factory for regular calibration of the trouble and cost.
* Test time can be set

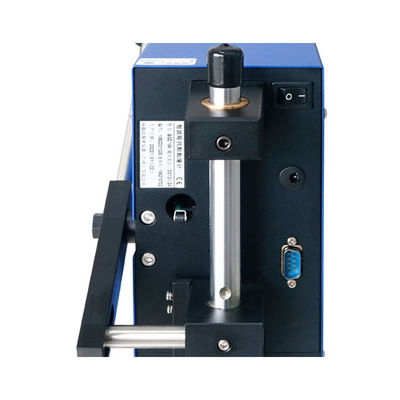

* With RS232 communication port, with real-time clock function, can be connected to a micro printer to print the test data.
* Randomly attached with calibration certificate
2.Technical Parameter
Range | 40.2 KU - 141.0 KU (27-5,250 cP) |
Accuracy | ±1.0% of full scale range |
Repeatability | ±0.5% of full scale range |
Paddle Speed | 200 r/min ± 0.1 r/min |
Overall Dimensions | 210mm × 180mm × 500mm (L × W × H) |
Package Size | 560mm × 450mm × 280mm |
Package Weight | 9.2 kg |
Ordering Information | BGD 186 - Intelligent Krebs Stormer Viscometer |
