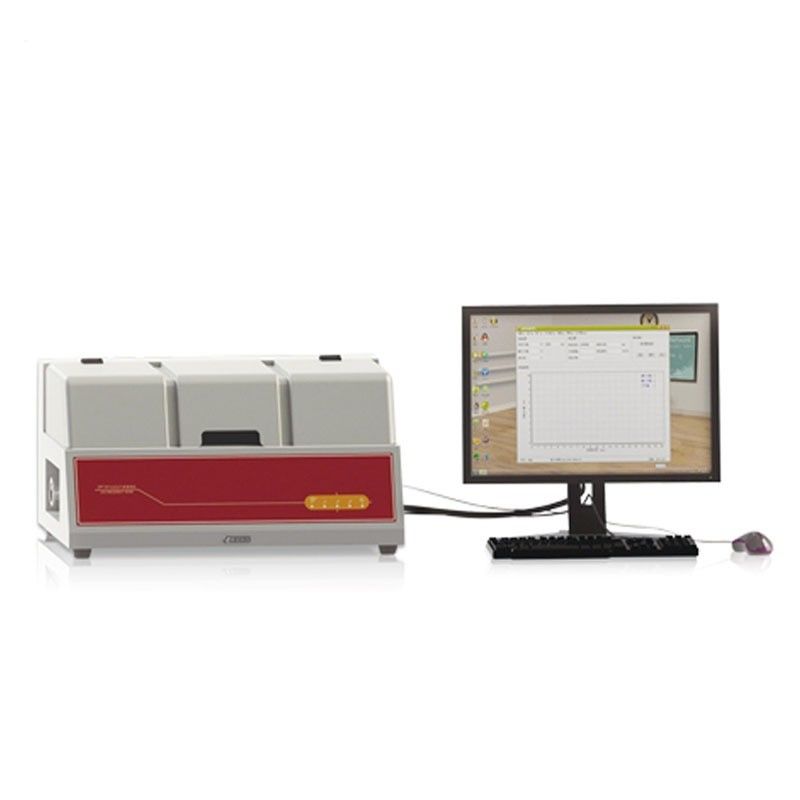

ISO 2556 Gas Permeability Tester Gas Transmission Rate Tester For Plastic Film

ISO 2556 Gas Permeability Meter Gas Transmission Rate Tester For Plastic Film

1. Use
Based on the differential pressure method, it is specifically designed for the determination of gas permeability, solubility coefficient, diffusion coefficient and permeability coefficient of materials such as plastic films, composite films, high-barrier materials, thin plates and aluminum foil.

2. Character
1. Gas transmission rate, solubility coefficient, diffusion coefficient and permeability coefficient of the specimen could be obtained at one operation
2. Three different or equal specimens can be tested separately in one operation and obtain independent test results
3. Wide range and high precision temperature and humidity control to meet various test conditions
4. The instrument comes with two test modes: proportional mode and Fuzzy Model.
5. Test range could be extended based on user requirements to test the materials with high permeability
6. Test results could be easily obtained even at extreme conditions by data fitting function, which could work at any temperature
7. The instrument could be used to test poisonous, inflammable, and explosive gases (customization required)
8. The instrument is controlled by computer and test process is automatic
9. Reference film for fast calibration to ensure accurate and universal test data
-  Standard RS232 port for convenient data transfer

3. Principle
The pre-conditioned specimen is mounted in the gas diffusion cell as to form a sealed barrier between two chambers. The lower-pressure chamber is firstly evacuated, followed by the evacuation of the entire cell. A flow of gas is thereafter introduced into the evacuated higher-pressure chamber and a constant pressure difference is generated between two chambers. The gas permeates through the specimen from the higher pressure side into the lower side. The gas permeability and other barrier properties of the specimen can be obtained by monitoring the pressure changes in the lower chamber.

Standards
ISO 15105-1,ISO 2556,GB/T 1038-2000,ASTM D1434,JIS K7126-1,YBB00082003

4. Applications Specifications

5. Technical Specifications
