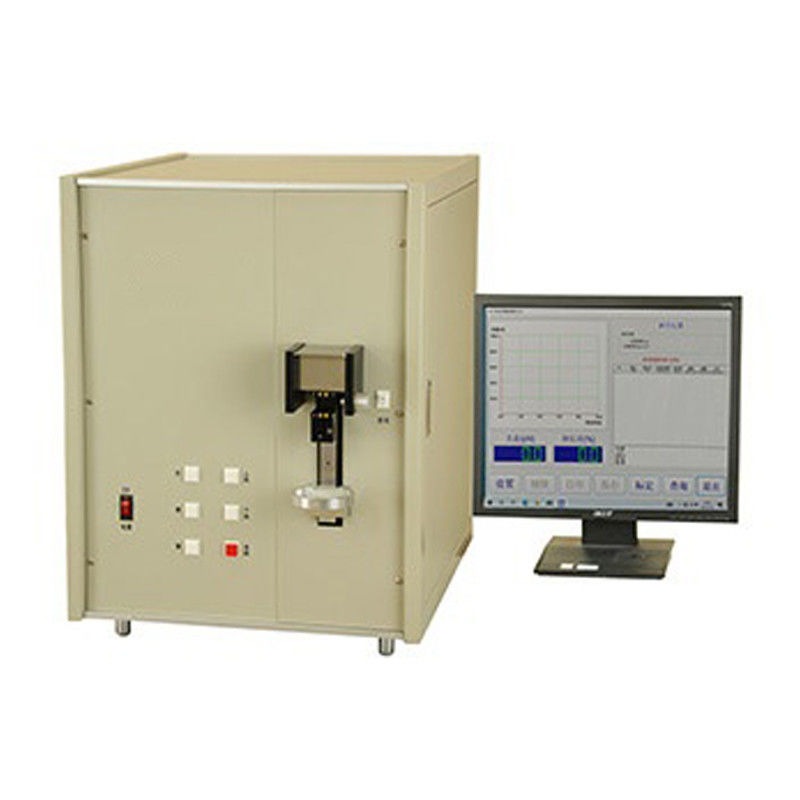

Engineering Fiber Tensile Analyzer Engineering Fiber Tensile Strength Device

Large Image : Engineering Fiber Tensile Analyzer Engineering Fiber Tensile Strength Device

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	GA-5X

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200 pieces

Contact Now

Engineering Fiber Tensile Analyzer Engineering Fiber Tensile Strength Device

Description

Warranty:

1 Year

Customization:

Available

Highlight:

Engineering Fiber Tensile Analyzer

ASTM Fiber Tensile Analyzer

Engineering Fiber Tensile Strength Device

Engineering Fiber Tensile Analyzer Engineering Fiber Tensile Strength Device

Product Introduction
The GA-5X type engineering fiber tensile strength tester is a testing instrument for measuring the tensile properties of engineering fibers. It can conduct a single tensile test on the shortest 4mm length of engineering short fibers, and display the fiber strength, elongation rate, fixed elongation load, diameter, strength, modulus and specific work of the single value, average value and coefficient of variation.
The instrument complies with national standards GB/T 21120, international standards ISO5079 and the test method standards of the International Chemical Fiber Standardization Bureau (BISFA), and can be widely applied in chemical fiber, construction engineering and other production enterprises, inspection institutions and research units.

Product Paramter

Load measurement range	0~100 cN
Load measurement error	≤±1%
Load measurement resolution	0.01 cN
Extension measurement range	100mm
Extension measurement error	≤0.05mm
Extension measurement resolution	0.1%
Lower clamping device descent speed	1~100 mm/min
Lower clamping device stroke	100 mm
Data interface Power supply	RS232,can be equipped with a vibrating thread density meter
The weight and size of the mainframe	AC220V±10%
Load measurement range	Above 45kg,540×434×560mm

Tag:

Contact Person: Ms. Lilianne Chen

Tel: 13751328225

Fax: 86-769-83078748
