Fiber Tensile Strength Test Instrument Fiber Tensile Tester Machine

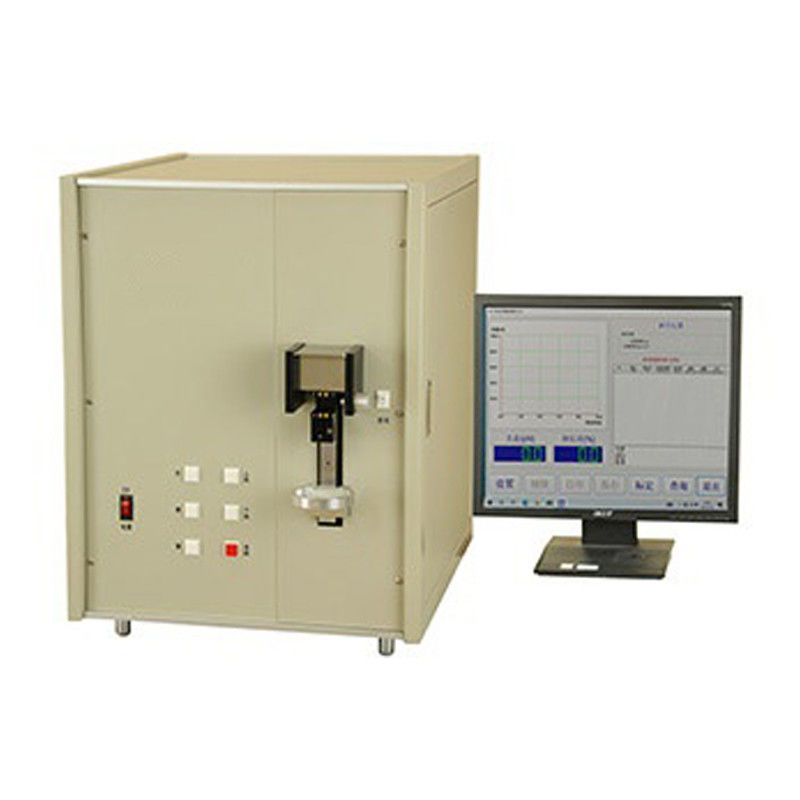

Large Image : Fiber Tensile Strength Test Instrument Fiber Tensile Tester Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	GA-9A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	D/A,L/C,D/P,T/T,Western Union
Supply Ability:	200 pieces

Contact Now

Fiber Tensile Strength Test Instrument Fiber Tensile Tester Machine

Description

Warranty:

1 Year

Customization:

Available

Highlight:

Fiber Tensile Strength Test Instrument

ODM Tensile Strength Test Instrument

Fiber Tensile Tester Machine

Fiber Tensile Strength Testing Instrument Fiber Tensile Tester

1.Product Introduction

The GA-9A Fiber Tensile Strength Testing Instrument is an extended version of the GA-8A tensile strength tester. Besides conducting a single tensile test, it can also perform tests such as fiber elongation at constant tension, cyclic elongation at constant tension, constant load elasticity, cyclic constant load elasticity, relaxation, and creep. The testing methods comply with the requirements of the International Chemical Fiber Standardization Association (BISFA) and are suitable for the performance testing of elastic fibers.

2.Product Paramter

Load measurement range	0~100 cN
Load measurement error	≤±1%
Load measurement resolution	0.01 cN
Extension measurement range	100mm
Extension measurement error	≤0.05mm
Extension measurement resolution	0.1%
Lower clamping device descent speed	1~100 mm/min
Lower clamping device stroke	100 mm
Data interface	RS232,can be equipped with a vibrating thread density meter
Power supply	AC220V±10%
The weight and size of the mainframe	Above 45kg,540×434×560mm
