ISO 137 Lab Test Machine Wool And Cashmere Fabric Component Analyzer

ISO 137 Wool and Cashmere Component Analyzer Fabric Functional Fabric Machine

1.Product Introduction
The instrument has the following two functions to choose from: 1. Longitudinal diameter measurement method: For fiber samples with a circular cross-section, the fibers can be directly arranged in parallel on a glass slide after being straightened, or cut into 0.2 - 0.4 mm small segments using a Hargreaves slicer and placed on the glass slide. The longitudinal image of the fiber is displayed on the screen through the microscopic image processing system, and the diameter is automatically measured by clicking on the edge of the fiber. 2. Cross-sectional area method: For fiber samples with a non-circular cross-section, the fiber samples are first sliced using a Hargreaves slicer. The transverse cross-sectional slices of the fiber are placed on the stage, and the cross-sectional area of the fiber is displayed and measured on the screen through the microscopic image processing system. Then, the equivalent diameter is automatically calculated.

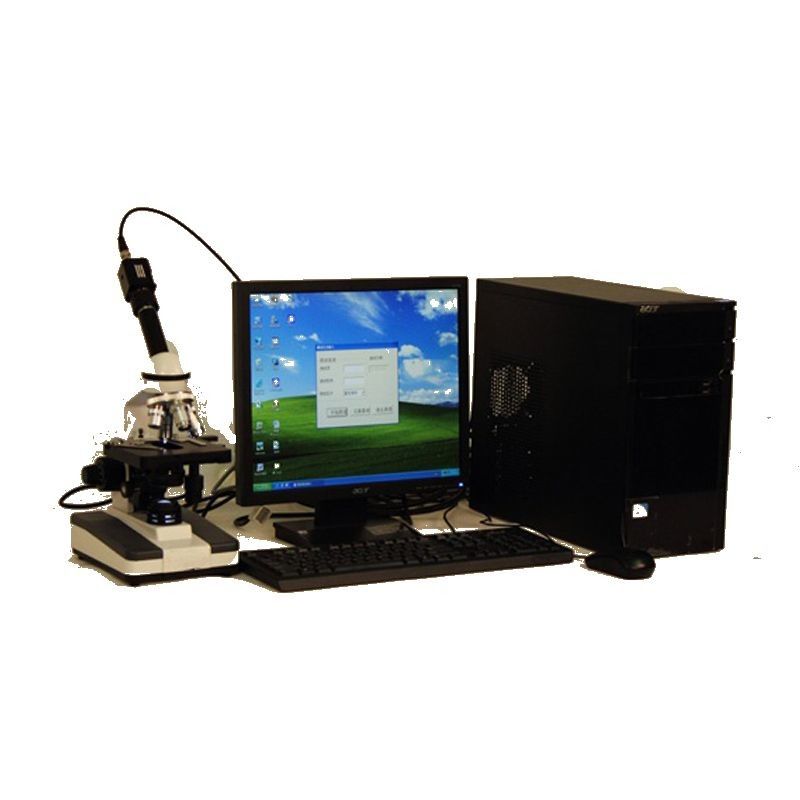

The instrument consists of a microscope, a computer, and image analysis system software. The microscope has three objective lenses available for selection: 10X, 20X, and 40X. The instrument has a resolution of 0.1 μm (micrometers) and a measurement range of 2 - 200 μm (micrometers).
The instrument complies with the following standards: 1. GB/T 10685-2007 Test Method for Diameter of Wool Fibers - Projection Microscope Method, 2. ISO 137-1975 Wool - Determination of Fiber Diameter - Projection Microscope Method, 3. SN/T 2672-2010 Test Method for Fineness of Textile Raw Materials (Diameter) - Microscopic Projection Method, 4. GB/T 16988-1997 Determination of Content of Special Animal Fibers and Wool in Mixtures, 5. ISO 17751-2007 Textiles - Quantitative Analysis of Animal Fibers by Microscopy - Cashmere, Wool, Specialty Fibers and Their Blends, 6. FZ/T 01101-2008 Textiles - Determination of Fiber Content - Physical Methods, 7. AATCC 20A-2005 Fiber Analysis: Quantitative, 8. FZ/T 30003-2009 Quantitative Analysis Method for Linen and Cotton Blended Products - Microscopic Projection Method, 9. SN/T 0756-1999 Quantitative Analysis Method for Linen and Cotton Blended Products for Import and Export - Microscopic Projection Method.

2.Product Paramter
