Fabric Wet Adhesion Analyzer Textile Testing Instrument Equipment Tester

Large Image : Fabric Wet Adhesion Analyzer Textile Testing Instrument Equipment Tester

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO AT
Model Number:	GA-4Q

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	D/A,L/C,D/P,T/T,Western Union
Supply Ability:	200 pieces

Contact Now

Fabric Wet Adhesion Analyzer Textile Testing Instrument Equipment Tester

Description

Application:	Testing And Analysis	Accuracy:	Depends On The Specific Machine
Weight:	Depends On The Specific Machine	Dimensions:	Depends On The Specific Machine
Display:	Digital Display
Highlight:	Fabric Textile Testing Equipment , Fabric Textile Testing Instrument , Fabric Textile Test Machine

Fabric Wet Adhesion Analyzer Textile Testing Instrument Equipment Tester

1. Product Introduction

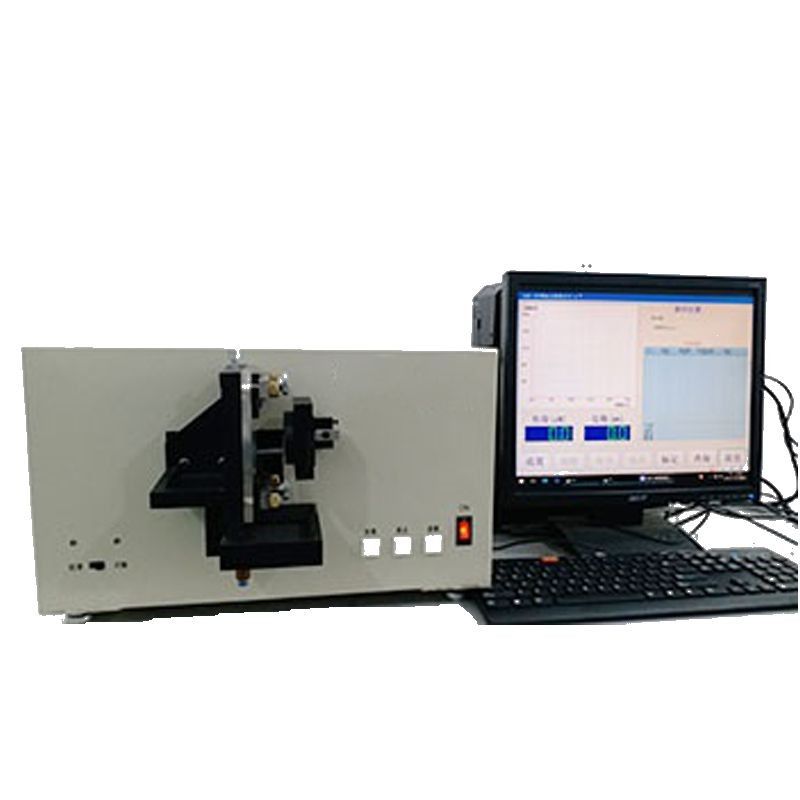

The GA-4Q fabric wet adhesion testing instrument is a newly developed testing device for evaluating the wet adhesion deformation of fabrics. The instrument automatically controls the movement of the fabric sample and the artificial skin along the normal direction of their contact surface, displaying the adhesion force-displacement curve in real time. It measures the maximum adhesion force, adhesion displacement, and adhesion work of the fabric, reflecting the wet adhesion comfort of the fabric.

2. Product Paramter

Displacement test range	50mm
Displacement measurement error	≤0.05mm
Displacement measurement resolution	0.01mm
Artificial skin	Sheet-like flexible material, commonly made of natural latex; Users can replace it as needed; Skin size: 4cm to 6cm
Force value measurement range	0~ 100 cN
Force value measurement error	≤±1%
Force value resolution	0.01cN
Test sample size	Length: 4 to 6 cm, Width: 6 to 8 cm
The weight of the mainframe	Above 25kg
Host size	470×550×300(L×W×H)mm
