Auto Tensile Lab Test Machine Material Interface Performance Pulling Testing Machine

ISO 5079 Material Interface Pulling Performance Testing Instrument Auto Tensile Tester

1.Product Introduction

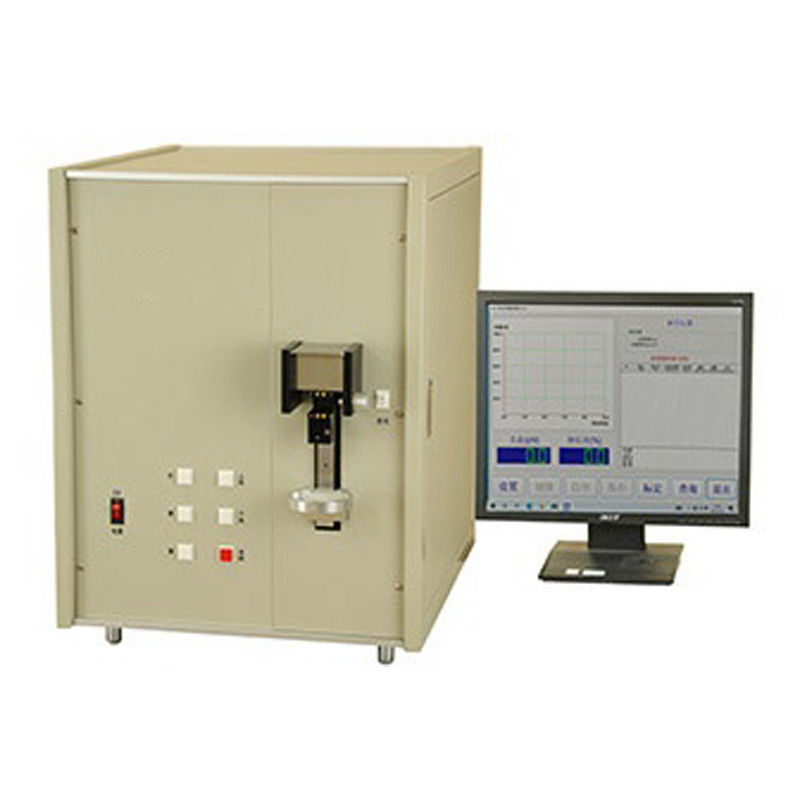

The GA-5Q Material Interface Pulling Performance Testing Instrument is a test instrument used for measuring the interface pulling performance of materials. It has a precise structure and stable performance, featuring pneumatic clamping and automatic operation. The instrument's functions are controlled by a computer, which can display the load-extension curve during fiber stretching in real time and store the test results for data analysis.
The load measurement range of the instrument is 0 - 100 cN, the clamping distance is 10 - 50 mm, the moving stroke of the lower clamping device is 100 mm, the test speed is 1 - 100 mm/min. It can conduct single-fiber pulling experiments (pull-out tests) to study the interface adhesion performance of materials. It has now been widely applied in research institutions such as Donghua University and Jiangnan University.
This instrument complies with national standards GB/T 14337, international standards ISO 5079 and the test method standards of the International Chemical Fiber Standardization Bureau (BISFA), and is suitable for the determination of the tensile properties of various single chemical fibers and natural fibers.

2.Product Paramter
