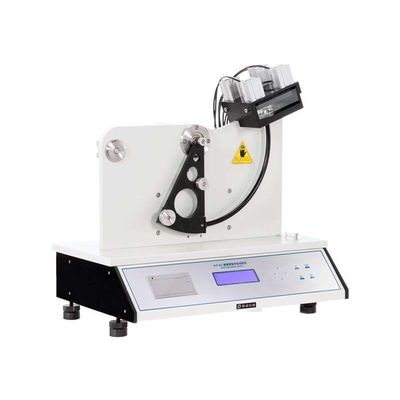

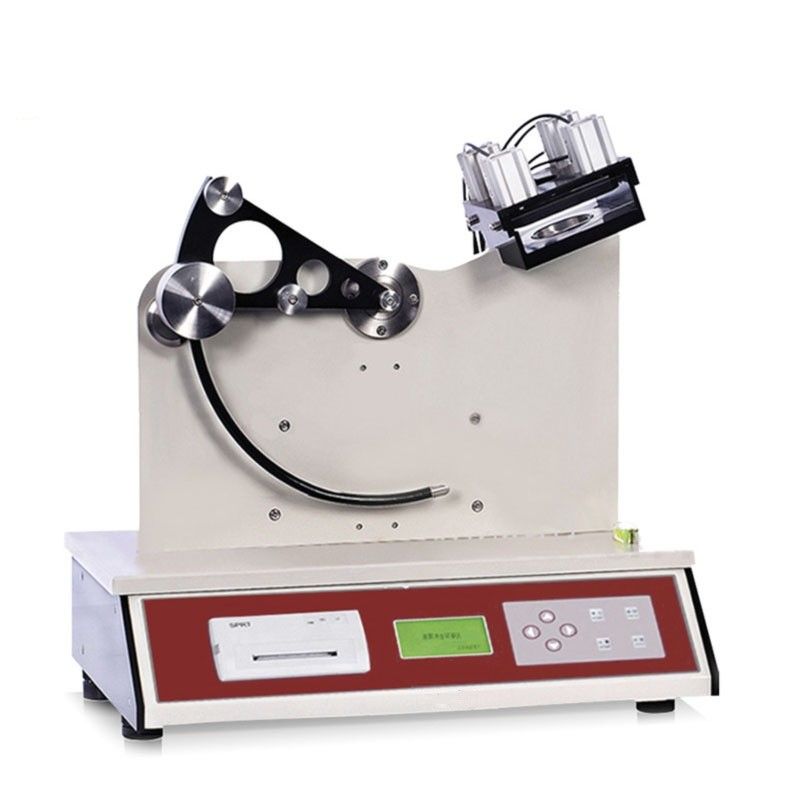

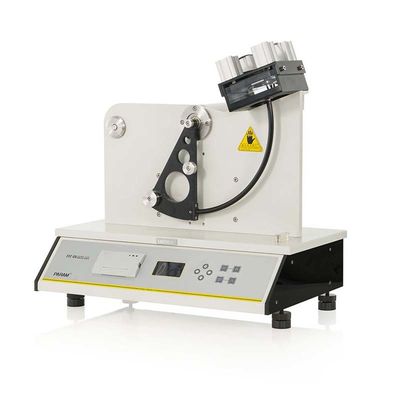

ASTM D3420 Lab Film Testing Equipment Pendulum Impact Tester Machine

ASTM D3420 Film Pendulum Impact Tester Test Impact Resistance

1. Use
It is professionally applicable to the determination of the pendulum impact resistance performance of materials such as plastic films, thin plates, composite films, and aluminum foil.

2. Character
1. Adjustable range and electronic measurement support a combination of various non-standard test conditions
2. Pneumatic sample clamping, swing release mechanism, and level adjustment system effectively reduce manual operation errors
3. The system provides an automatic statistics function for detection data, which is convenient for users to view
4. The instrument is controlled by a microcomputer, features a liquid crystal display, a menu interface and a PVC operation panel

3. Principle
Under certain impact conditions, the impact resistance of the film can be obtained by measuring the energy consumed to break the film by the hemispherical impact head
Standards
GB 8809-88, ASTM D3420, NF T54-116

4. Applications Specifications

5. Technical Specifications

Standard configuration:
Mainframe, Pendulums of 1J, 2J and 3J, Standard Impact Heads of Ф25.4mm and Ф19mm, Standard Clamp Plates of Ф89mm and Ф60mm (including O-ring) and Micro Printer

Optional Parts:
Professional Software, Communication Cable, Customized Impact Head and O-ring
