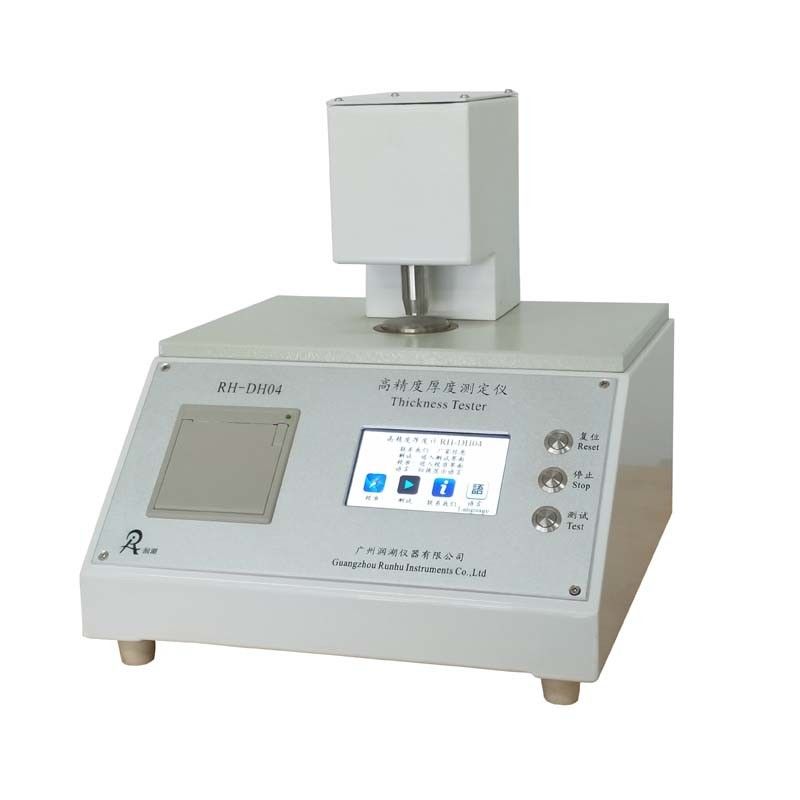

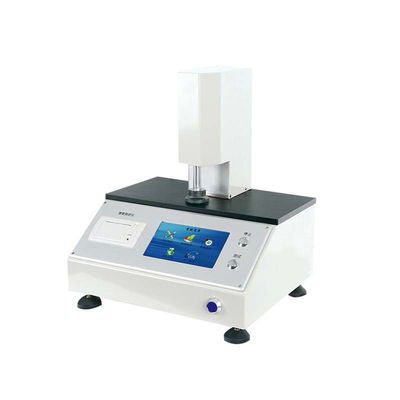

ISO 534 Automatic Thickness Tester Machine Paper Thickness Gauge

ISO 534 Automatic Thickness Tester Thickness Gauge for Paper and Board

1. Use

High precision thickness tester can measure the thickness of samples under different pressures and is suitable for measuring the thickness of various kinds of paper (including toilet paper), cardboard, corrugated cardboard, tobacco flakes, plastic film and other sheet materials.
Test Standard
ISO534, GB/T451.3, GBT24328.2, QB/T1055, TAPPI T411

2. Product Features
1. Aluminum alloy panel, Chinese and English touch screen display, friendly human-machine interface operation, fully automatic completion of the test, with statistical processing of test data, micro-printer output.
2. Precise testing, reliable operation, free setting of clamping force, measurement accuracy of 0.001mm.
3. Precision ball-screw drive, single test or continuous test available

3. Technical specification

Item	Techical Specification
Measure Range	(0~5)mm(Test paper)	(0~20)mm(Test cardboard, toilet paper)
Resolution	0.001mm
Accuracy	±0.001mm Or ±0.5%
Flatness of two measuring surfaces	≤0.001mm
Test contact area	(2±0.05)cm²	(10±0.2)cm²
Contact pressure (range can be set arbitrarily)	(0.5--500)kPa	(0.1--100)kPa
Test Speed	0.1-12mm/min adjustable
Drop Speed	60mm/min
Weight	About 20kg
Power	AC220V, 50Hz
Outside size	330*340*350mm
Man-machine interface	Touch screen display in Chinese and English
Software(Optional)	Can be connected to a computer (according to user needs)
