Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: ISO ASTM CE
Model Number: LR-F027A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200
Contact Now

Corrugated Cardboard Thickness Testing Equipment Paper Thickness Measuring Instrument Film Testing Equipment Film Film T

Description
Measure Range: (0~20)mm Weight: 8kg
Outside Size: 290*310*220mm
Highlight:

corrugated cardboard thickness tester

,

paper thickness measuring instrument

,

film thickness testing equipment

Corrugated Cardboard Thickness Testing Equipment Paper Thickness Measuring Instrument Film Testing Equipment Film Film T

ISO 534 Thickness Tester of Paper and Board Thickness Gauge



1. Introduction

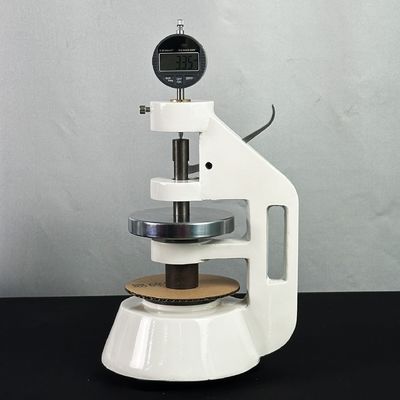

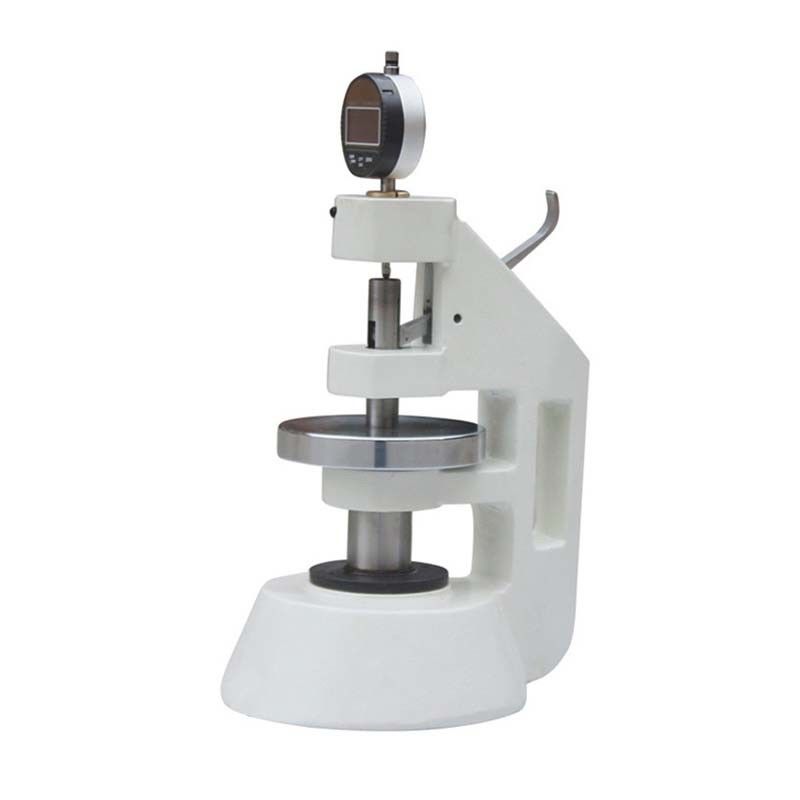

The Corrugated Cardboard Thickness Tester is used to test the thickness of corrugated cardboard and carton products. Its technical requirements and test methods are in line with the requirements and provisions of GB/T6547 “Corrugated Cardboard Thickness Measurement Method” and other standards. It is used to test corrugated cardboard within 20mm, and is suitable for cardboard factories, carton factories, scientific research units and quality inspection departments. Test Principle: The corrugated cardboard sample is subjected to a specified pressure and the distance between two parallel surfaces is measured on the thickness gauge.

2. Character

1. Digital display handheld high precision and stable reading;
2. Compact, portable and durable;
3. Exquisite baking paint workmanship, rustproof, corrosion-resistant, beautiful and beautiful;
4. Precision and thickness can be customized according to customer requirements;
5. Can be connected to a computer to automatically draw real-time test data curves (optional);

Test Standard

QB/T 1055, GB/T 6547, ISO 534



3. Technical Specification

Measure Range (0~20)mm
Accuracy 0.01mm
Contact pressure 20±2kpa
Contact Area 1000±20mm²
indication error 0.05%
parallelism ≤0.05mm
Display Digital
Outside size 290*310*220mm
Weight About 8kg
Work Environment Temperature (20±10) ºC, humidity < 85%
