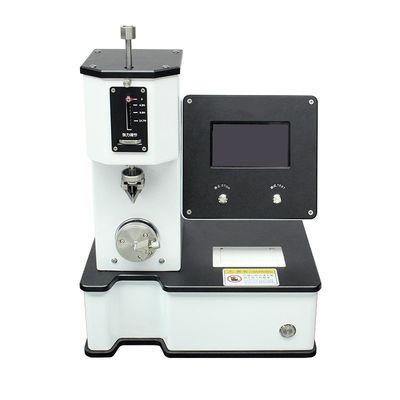

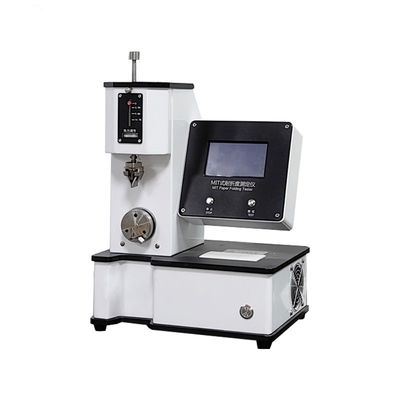

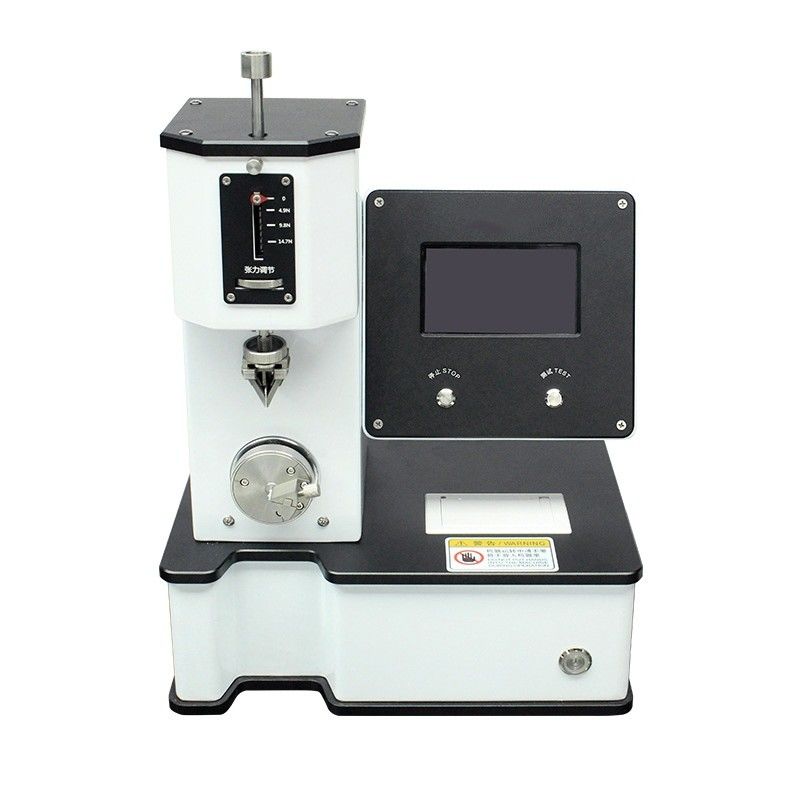

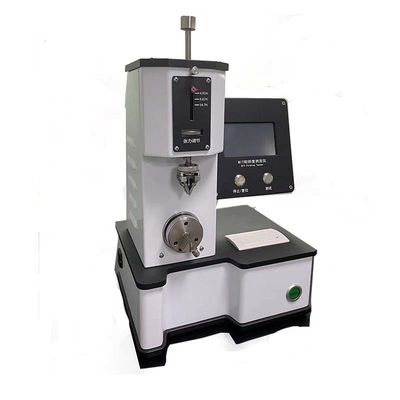

ISO 5626 MIT Folding Endurance Tester Paper Flexural Fatigue Test Machine

ISO 5626 MIT Folding Endurance Tester Paper Flexural Fatigue Test Machine
ISO 5626 MIT Folding Endurance Tester Paper Flexural Fatigue Test Machine ISO 5626 MIT Folding Endurance Tester Paper Flexural Fatigue Test Machine ISO 5626 MIT Folding Endurance Tester Paper Flexural Fatigue Test Machine

Large Image :  ISO 5626 MIT Folding Endurance Tester Paper Flexural Fatigue Test Machine

Product Details:
Place of Origin: China
Brand Name: Lonroy
Model Number: LR-F024
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Supply Ability: 200
Contact Now

ISO 5626 MIT Folding Endurance Tester Paper Flexural Fatigue Test Machine

Description
Weight: 35 Kg Overall Dimension: 300*300*450mm
Folding Angle: 135±1°
Highlight:

mit film testing equipment

,

mit thickness testing equipment

,

paper film testing equipment

ISO 5626 MIT Folding Endurance Tester Paper Flexural Fatigue Test Machine


1. Introduction
The MIT Folding Tester is a test tool used to test the fatigue performance of paper folding, through which the number of times paper can be folded and its resistance to folding can be tested. It can also be used to test the bending fatigue performance of textiles, plastic films, wires and other products. It is an ideal test tool for paper, packaging, textile, wire and other products.

Test standard
ISO 5626, determination of folding resistance of paper
GB 2679.5 determination of folding resistance of paper and board


2. Specification

Folding Angle material yield bending Angle is 135±1°
Folding speed standard bending speed is 175±5 times /min
Spring tension 4.91~ 14.72N, add 9.81N force, spring compression at least 17mm.
Standard chuck monomial high width standard clamp with sample parallel bit.
Folding chuck the change of tension caused by rotation eccentricity is no more than 0.343N.
Folding head width 19±1mm
Folding radius 0.38±0.02mm
Clamping method of the lower fixture cylindrical knurled knob, more convenient force clamping
Fold mouth gap distance 0.25 mm / 0.5 mm / 0.75 mm / 1.00 mm
Man-machine interface 5.0in touch color screen control, real-time display of test data
Printout modular integrated thermal printer
Working environment temperature (0~35) ºC, humidity < 85%
Overall dimension 300*300*450mm
Weight 35 kg
