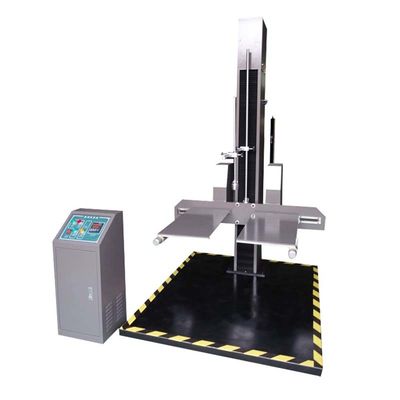

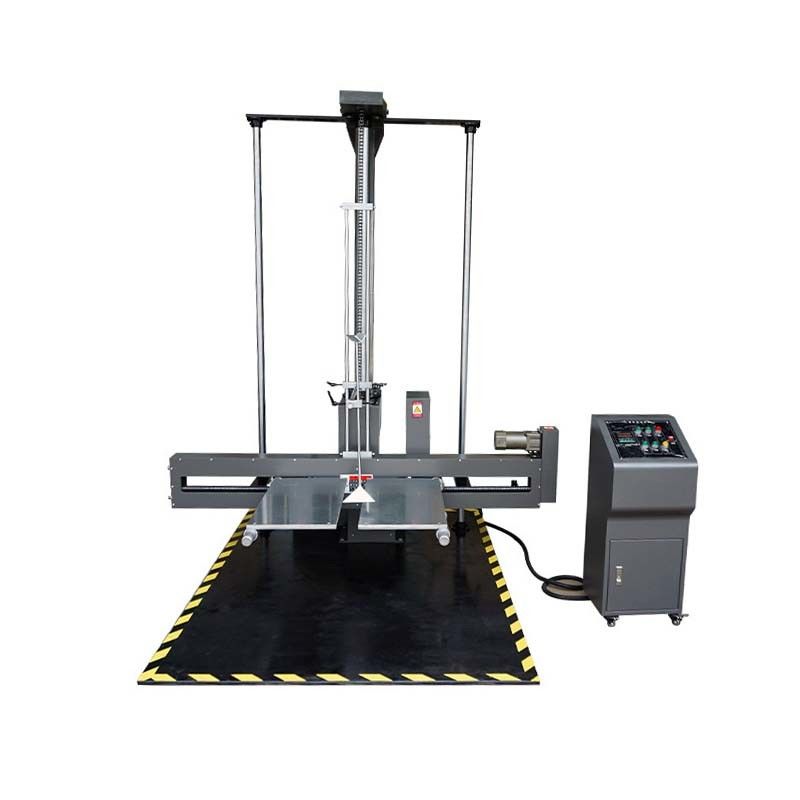

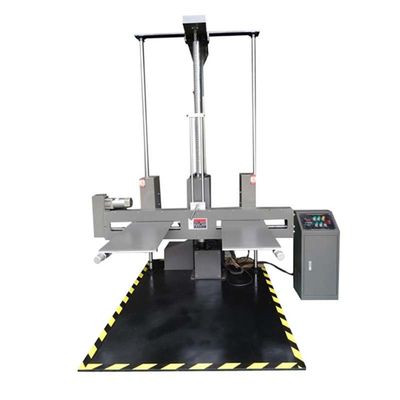

ISO 2248 Big Package Drop Tester Machine AC380V 50Hz Drop Impact Test Machine

ISO 2248 Big Package Drop Tester Machine AC380V 50Hz Drop Impact Test Machine
ISO 2248 Big Package Drop Tester Machine AC380V 50Hz Drop Impact Test Machine
ISO 2248 Big Package Drop Tester Machine AC380V 50Hz Drop Impact Test Machine ISO 2248 Big Package Drop Tester Machine AC380V 50Hz Drop Impact Test Machine ISO 2248 Big Package Drop Tester Machine AC380V 50Hz Drop Impact Test Machine ISO 2248 Big Package Drop Tester Machine AC380V 50Hz Drop Impact Test Machine

Large Image :  ISO 2248 Big Package Drop Tester Machine AC380V 50Hz Drop Impact Test Machine

Product Details:
Place of Origin: China
Brand Name: Lonroy
Model Number: LR-F022-E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Supply Ability: 200
Contact Now

ISO 2248 Big Package Drop Tester Machine AC380V 50Hz Drop Impact Test Machine

Description
Power: AC380V 50Hz Maximum Size Of Specimen: 1200×1500×2000mm
Drop Height: 400-1500mm,400-2000mm
Highlight:

Drop Tester Machine AC380V

,

Drop Tester Machine 50Hz

,

ISO 2248 Drop Impact Test Machine

ISO 2248 Big Package Drop Tester Drop Impact Test Machine



1. Use
This machine is used for specimen free fall test, the specimen can be freely selected surface, edge, angle three states for fall test, and can be preset fall test height, when the specimen rises to the preset height, it will automatically stop the positioning, the distance of the supporting arm can be selected according to the different sizes of the product, and the width of the motorized can be adjusted.
The design standards meet: GB 47575-84, JISZ 0202-87, ISO 2248-1972 (E).



 2. Technical Specification

Maximum weight of specimen 0-70kg, 0-100kg, 0-150kg, 0-200kg
Maximum size of specimen 1200×1500×2000mm(can customize)
Height of drop 400-1500mm, 400-2000mm(can customize)
Drop floor material Solid steel plate with thickness of 16mm(can customize)
Height error of drop ≤±10 mm
 Angle error ≤5°
Height display mode Digital display
Action way Electric drop, manual reset
Protection function The upper and lower limit protection switch is installed on the main shaft of the machine
Power AC380V, 50Hz(can customize 220V)



Tag:

Falling Dart Impact Tester,

Peel Off Strength Tester,

Quantitative Sampler

Contact Details
DONGGUAN LONROY EQUIPMENT CO LTD

Contact Person: Lilianne Chen

Tel: 13751328225

Fax: 86-769-83078748
