Product Details:
|
Machine Size: | W800 X D900 X H2200mm | Drop Height: | 300 -- 1800mm |
---|---|---|---|
Drop Angle: | 0 °, 45 ° And 90 ° | Electrical Source: | AC220V 50HZ 5A |
Highlight: | PC Drop Tester,Cell Phone Drop Tester,Directional Drop Test Machine |

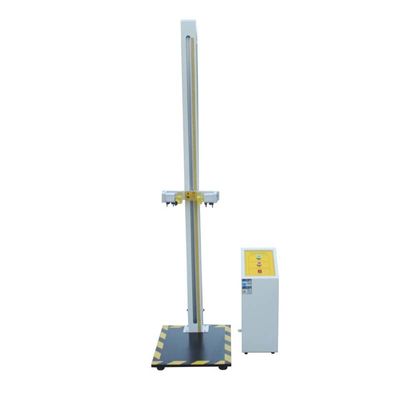

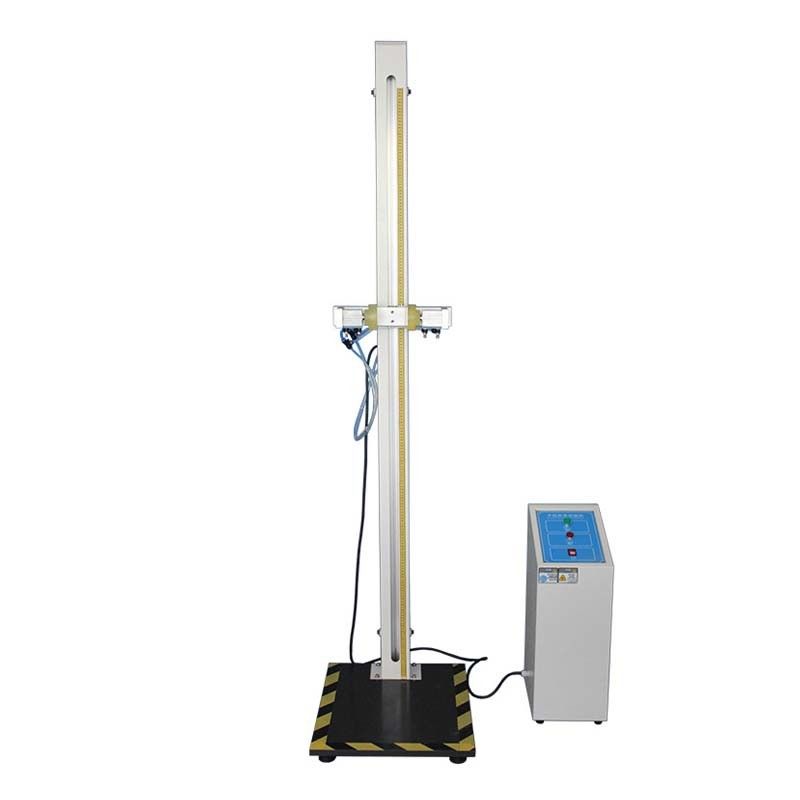

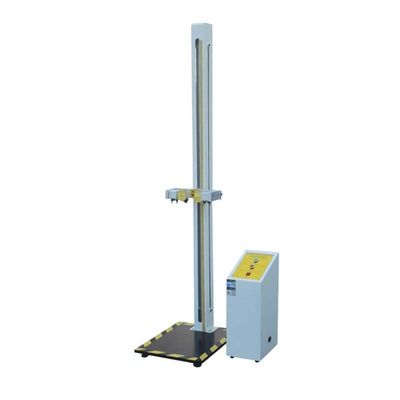

Cell Phone PC Drop Tester Directional Drop Test Machine
1. Use
The machine is designed to assess the impact of falling behind on the performance of the product when the product is used in the experiment. It is applicable to: mobile phone, PDA, telephone electronic dictionary, CD, MP3,bottle and other small consumer electronic products for original posture and acceleration drop test.
2. Specification
Power | vacuum adsorption fall, height of fall can be set, manual rise and fall, accurate impact position, measurement of acceleration and speed. |
Multi-angle drop device | 0 °, 45 ° and 90 ° |
Drop height indicator | 1cm |
Effective height of drop | 300 -- 1800mm(optional 2000mm) |
Maximum weight allowed | 2kg |
Falling floor medium | steel plate |
Drop range | 500x600mm |
Use gas source | more than 0.5Mpa |
Machine size | W800 X D900 X H2200mm |
Electrical source | AC220V 50HZ 5A |
