AC100 - 240V Programmable Touch Screen Viscometers With Temperature Control

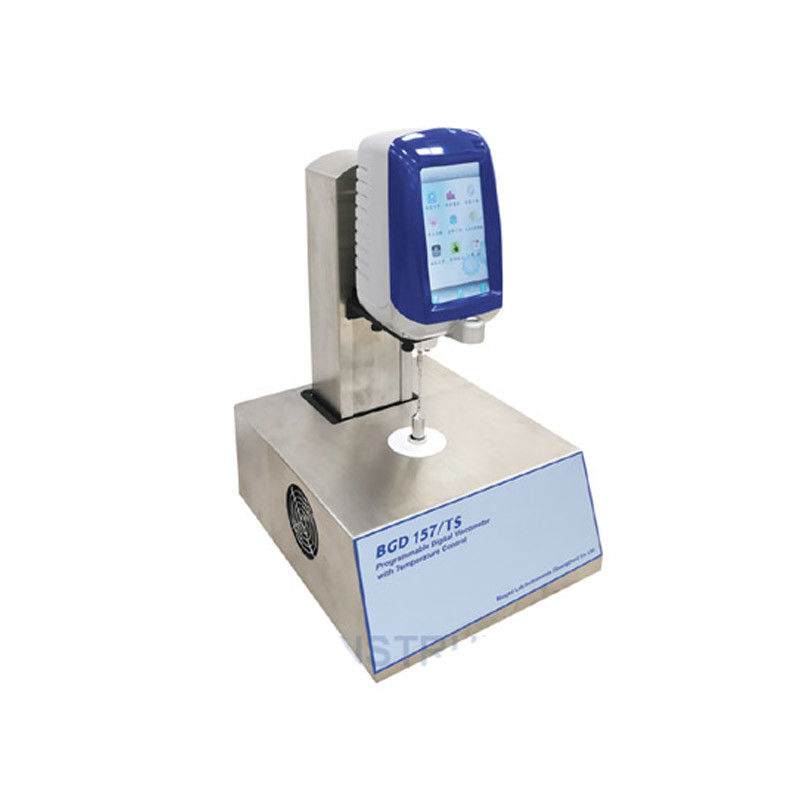

BGD 156/157-TS Programmable Touch-screen Viscometers with Temperature Control

1.Description

         Programmable Touch-screen Viscometers with Temperature Control is a combination of viscosity measurement, temperature precision control in one. It breaks through the existing market with constant temperature water tank, viscosity measuring instrument, small amount of sample adapter to form a split machine.
         The change of viscosity of test samples under different conditions is of great help in predicting their rheological properties, while the control of temperature when measuring viscosity helps to ensure the accuracy and comparability of experimental results. The most important feature of the instrument is the precise control of the sample temperature during the entire testing process. The temperature control system consists of a semiconductor and a built-in automatic optimized temperature program control, which can control the temperature with an accuracy of ±0.1°C. The operator can control the temperature either through the instrument or through the temperature controller. The temperature control system consists of semiconductors and built-in automatic optimized temperature program control, which can control the temperature with an accuracy of ±0.1℃. The operator can control the temperature through the instrument as well as through the optional software, which provides excellent operational flexibility.

Feature:

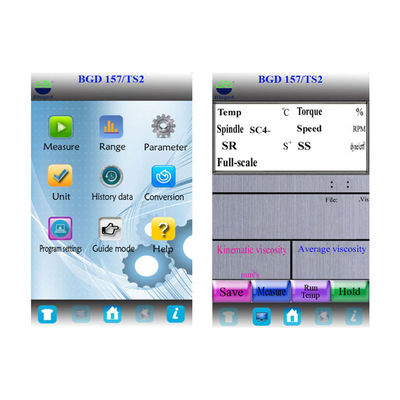

* It consists of a 7-inch wide touch screen main unit, a small volume sample adapter (SSR) cylindrical sample sleeve and SC4 rotor, and a temperature controller;
* BGD 157 is able to display the shear rate and shear stress indicators, which can be accurately measured under a certain shear rate;
* Testing sample dosage is only 2ml～16ml, SC4 rotor cylindrical geometry can provide very accurate viscosity measurement;
* Motorized lifting, precise positioning. Easy loading and unloading of the small volume sample cylinder brings convenience to the cleaning work.
* The small volume sample cylinder is closely matched to the temperature controller for very accurate sample thermostatting.
* The stirring action of the rotor, coupled with the small sample volume, minimizes sample temperature non-uniformity. The thermostat time is greatly reduced.

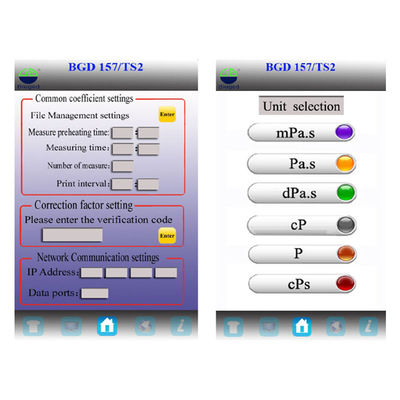

* Password-protected temperature and viscosity correction coefficients allow the user to correct the temperature and viscosity correction coefficients to complete the self-calibration of the instrument on the premise of having reliable and accurate data.
* Support infinitely variable speed measurement of viscosity, input any speed, are directly reflected in each rotor under the full scale and shear rate, convenient for users to select the test conditions.
* It can be easily programmed to control the rheometer to do the rheological curve;
* Support external U disk data storage; single point, continuous, timed three kinds of saving methods optional.
* The rest of the characteristics of viscosity measuring system are the same as those of rheometer.

2.Technical Parameter
