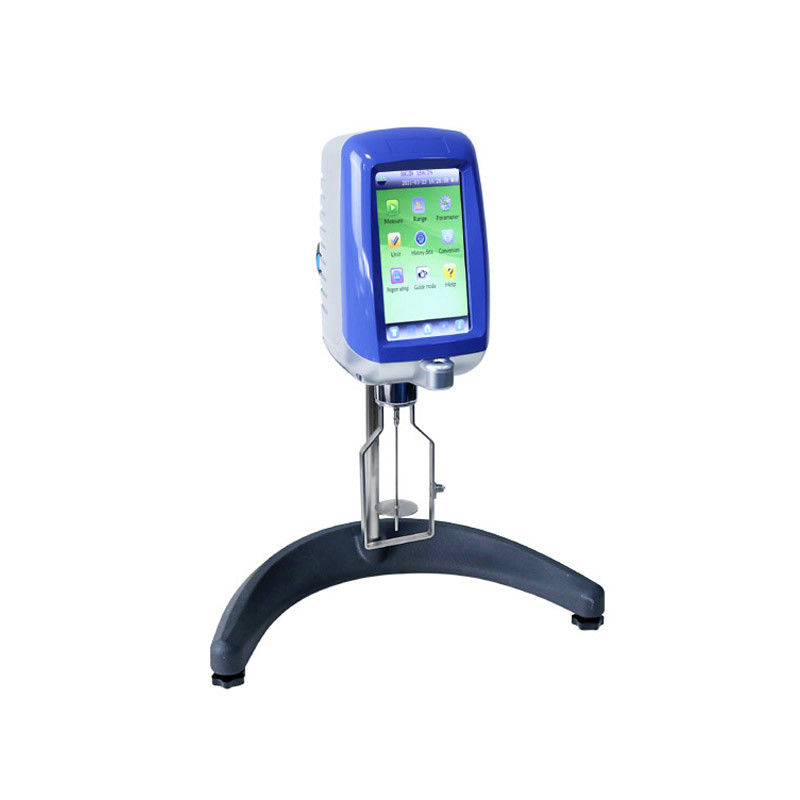

BGD 156-S Programmable Touch Screen Viscometer 0.3 - 100RPM

BGD 156-S Programmable Touch-screen Viscometer

1.Description
      Rotational viscometers are generally used to test the viscosity value (also called apparent viscosity) of Newtonian or non-Newtonian fluids at a specific rotational speed and under a specific rotor, and in the coatings, inks, adhesives and other polymer materials industry, almost all the resins, emulsions and the materials themselves are non-Newtonian fluids, which show different rheological properties under different shear rates (related to the rotational speed and the shape of the rotor). In order to compare the rheological properties of different materials, the more common method in the industry is to test their thixotropy or dilution index: that is, increase or decrease the speed of the rotor after the viscosity of the material measured by the proportion of the change in the value of the characterization of the degree of shear thinning, or the comparison of the material through the high shear before and after the change in the value of the viscosity of the material to characterize the degree of thixotropy.

       According to the rheological characteristics of different materials, BiaoGeDa provides several different types of rheometers, testers can set up different test programs (such as automatically changing the shear rate) according to the test needs, and with the relevant professional software, testers can fully understand and analyze the rheological characteristics of the material, including simulation of the material rheology in different application scenarios.

Feature:

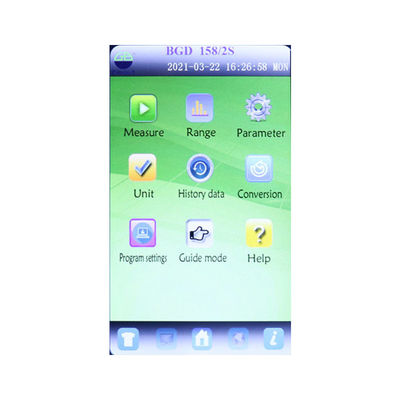

*7-inch wide touch screen, easy to operate, displaying rich information; randomly accompanied by a powerful operation wizard to help
*Optional BGD professional data acquisition and program control software can measure the rheological properties, the screen can directly display the rheological curve.
*Display shear rate and shear stress indicators; viscosity value display continuous change, beyond the measurement range has an alarm sound prompts
*Anti-static shell, metal lifting rod design and durable new small shaft design.
*Built-in RTD temperature probe.
*ARM chip processor, faster processing data speed
*Powerful human-computer interface and a variety of humanized operating style interface interchangeable
*Gigabit network port data communication transmission, fast and reliable transmission of data, while supporting the external U disk data storage; single point, continuous, timed three kinds of preservation methods optional.
*Password protection of temperature and viscosity correction coefficients, allowing users to correct the temperature and viscosity correction coefficients on their own under the premise of reliable and accurate data, thus completing the calibration of the instrument.
*Support stepless speed change for viscosity measurement, input any speed, it will directly display the corresponding full scale range under each rotor, which is convenient for users to quickly select the test conditions.
*Automatic conversion of dynamic viscosity and kinematic viscosity and arbitrary interchangeability of various viscosity units.
*Computerized full scale linear correction.
*AC power adapter 100V~240V, good anti-interference.

2.Technical Parameter
