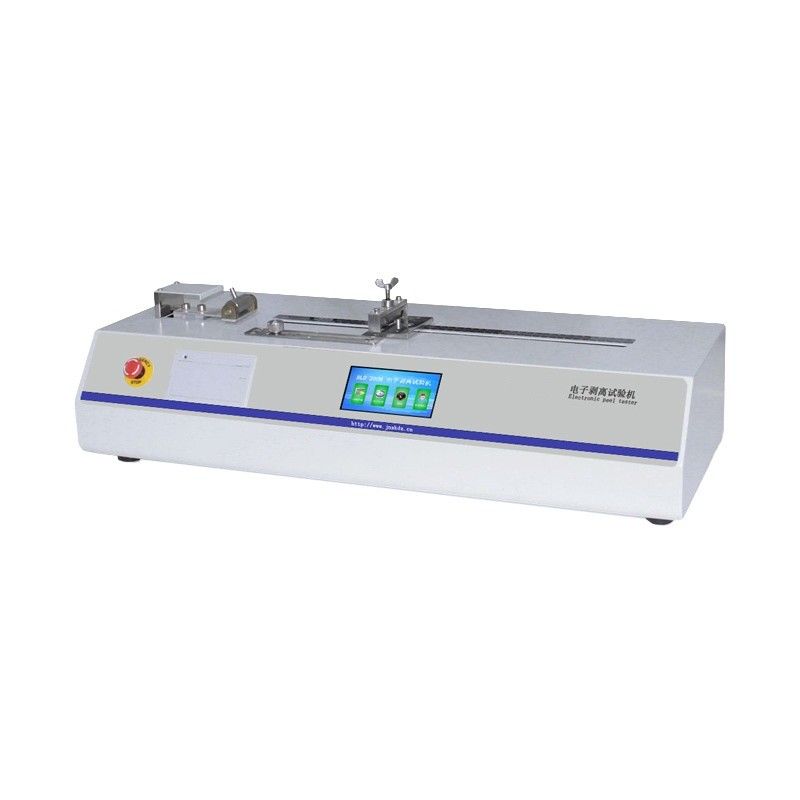

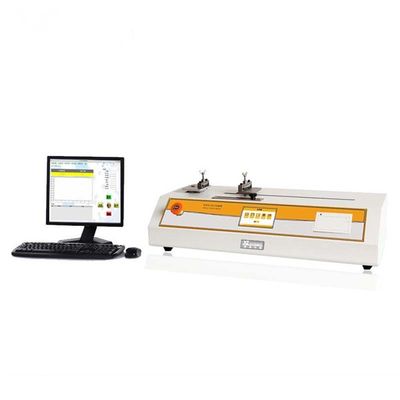

Electronic Tape Peel off Strength Testing Machine 90/180 Degree
1. Use
It is suitable for stripping, shearing and breaking performance test of adhesive, release paper, adhesive tape, self-adhesive, composite film, artificial leather, woven bag, film, paper, electronic carrier and other related products.
Application:180 degree peel off, 90 degree peel off, release paper peel force
2. Character
Large touch screen operation, convenient and convenient to use, the screen displays the real-time curve of the force value
With the maximum value, average value, real time value three test functions
G (gram), N(Newton), LB (pounds), KN/ M four units can be intelligently selected according to the test requirements
Type test parameters, test results can be output group statistical analysis
Intelligent working condition prompt and complete safe operation protection system
Equipped with miniature printer, can print output test data
Electronic speed regulation, accurate setting of various test speeds
In line with international requirements, compatible with ISO, JIS, ASTM, DIN and other international related standards
Simple operation, easy to use, reliable performance, fast experiment
Test standard
The instrument conforms to many national and international standards: GB/T 4850, GB/T 7754, GB/T 8808, GB/T 13022, GB/T 7753, GB/T 17200, GB/T 2790, GB/T 2791, GB/T 2792, QB/T 2358, YYT 0507, YYT0148, JIS-Z-0237, HGT 2406-2002
3. Application
|
Base application
|
Extended application (special accessories or customization required)
|
|
Tensile strength and deformation rate
|
Tensile force
|
Tear resistance
|
shear performance
|
Heat sealing performance
|
|
180°peel
|
90°peel
|
Low speed unwinding force
|
Peeling force of release paper
|
Adhesion strength test (soft)
|
|
|
|
Adhesion strength test (hard)
|
|
|
4. Specification
|
capacity
|
100 N(can choose 5N 30N 50N)
|
|
Accuracy
|
1 Level
|
|
Test speed
|
1- 500 mm/min
|
|
Test sample width
|
30mm(standard fixture)
|
|
50mm(fixture optional)
|
|
Stroke
|
400 mm
|
|
Outside size
|
450mm(L)×580mm(B)×100mm(H)
|
|
Power
|
AC 220V 50Hz
|
|
Weight
|
40 kg
|
