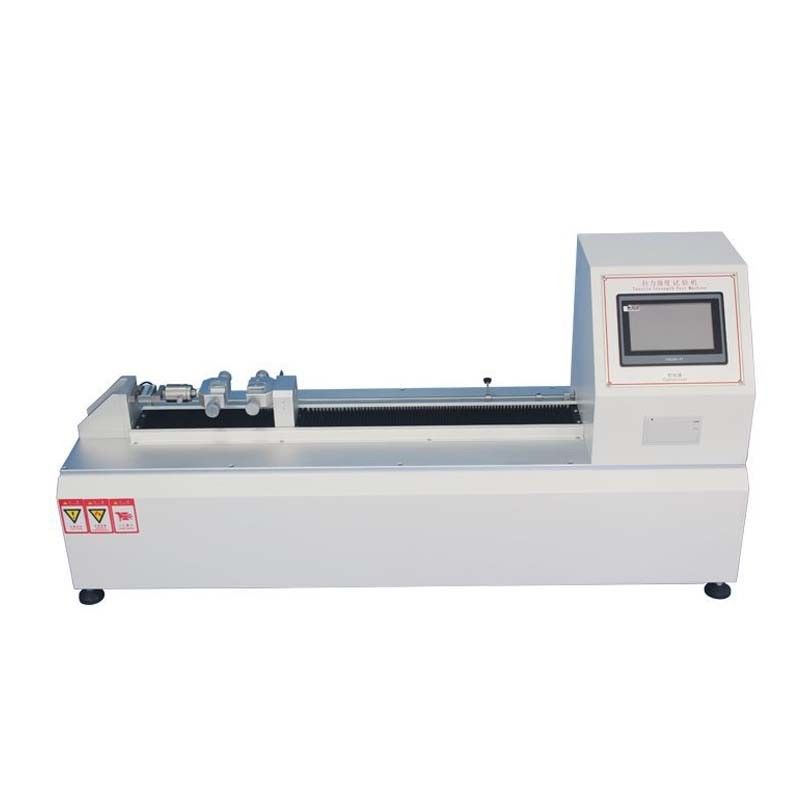

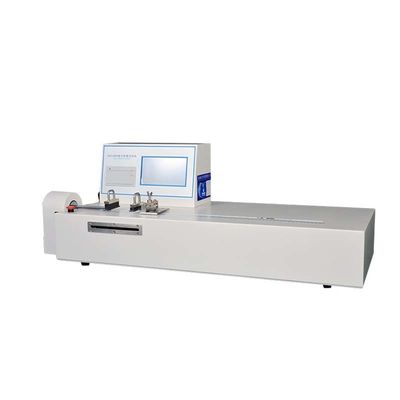

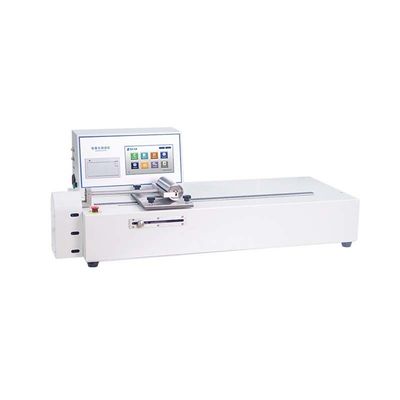

ASTM D3330 180° Peel Adhesive Testing Machine Tape Peeling Strength Tester
1. Introduction
Electronic Peeling Tester is suitable for peeling, shearing and tensile testing of adhesives, tapes, adhesives, laminating films, artificial leather, woven bags, films, paper, electronic carriers and other related products. Through the peeling test of the material, it reflects the adhesive strength of the material, which is an important test index for controlling the adhesive products not to open the glue and not to fall off. It can effectively help enterprises and industrial units to improve product performance.
2. Character
1. Touch screen control, man-machine interface fashion.
2. Lead screw transmission system, greatly improve the accuracy of transmission displacement, can achieve stepless speed regulation function
3. Intelligent operation has the maximum value, average value, real time value three test functions
4. Type test parameters, test results can be output group statistical analysis
5. Professional measurement and control, software with electronic signature function
6. The system comes with overload protection, emergency power off protection, zero failure of human operation
7. Equipped with a micro silent printer, USB interface, connected to the computer, can print out the test data
8. Can realize N(Newton), KN M, LBF pounds, G (gram) multi-unit free choice switch, automatic printing unit data after the end of the test.
9. In line with international requirements, compatible with ISO, JIS, ASTM, DIN and other international related standards
Test standard
GB/T4850,GB/T7754,GB/T8808,GB/T13022,GB/T7753,GB/T17200,GB/T2790,GB/T2791,GB/T2792, QB/T2358
PSTC: 101 (A, B, C, D, E, F), 4, 15, 55
ASTM: D 3330
TLMI: L-IA1, L-IA2, L-IA3
AFERA: 4001 P11
FINAT: FTM 1-6, 10, 11
3. Application
|
Base application
|
Extended application (special accessories or customization required)
|
|
Tensile strength and deformation rate
|
Tensile force
|
Tear resistance
|
shear performance
|
Heat sealing performance
|
|
180°peel
|
90°peel
|
Low speed unwinding force
|
Peeling force of release paper
|
Adhesion strength test (soft)
|
|
|
|
Adhesion strength test (hard)
|
|
|
4. Specification
|
capacity
|
0～200 N(can choose 30N,50N,100N)
|
|
Accuracy
|
0.5 Level
|
|
resolution
|
0.01 N
|
|
Test speed
|
1- 500 mm/min
|
|
Sample width
|
≤30 mm
|
|
Stroke
|
650 mm
|
|
Power
|
AC220V 50Hz
|
|
Outside size
|
880mm(L)× 320mm(B)× 400mm(H)
|
|
weight
|
25 kg
|
