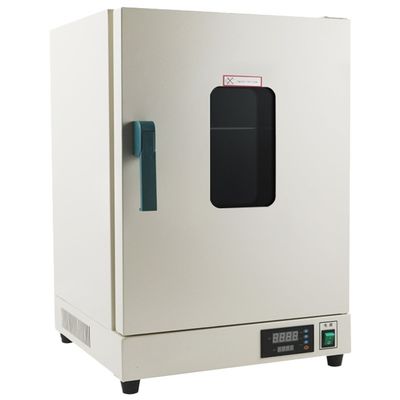

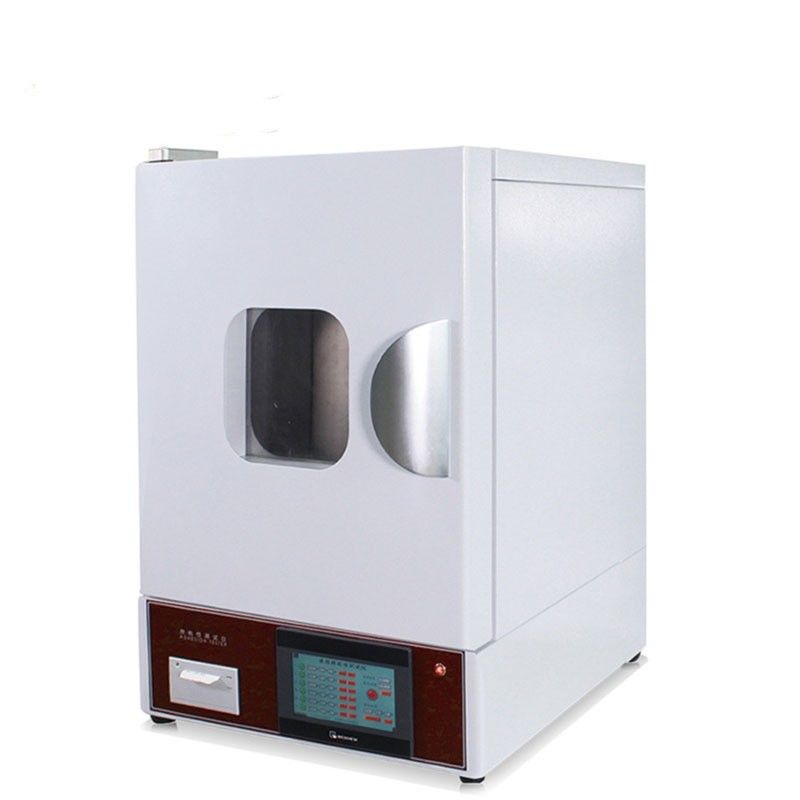

High Temperature 6 Bank Shear Oven 200℃ Tape Retention Adhesion Testing Machine

High Temperature 6 Bank Shear Oven 200℃ Tape Retention Adhesion Testing Machine

1. Work theory
High temperature 6 bank shear oven  is specifically designed for testing the adhesion of adhesive tape at high temperatures. At the set temperature, test the ability of the tape adhered to the test board to resist displacement along its length under the specified gravitational force in a standard manner. The viscosity of adhesive tape is expressed by the time it takes for the sample to move a certain distance (or completely fall off) or to shift a certain distance (or completely fall off) within a certain period of time.
Test standard: YY/T0148, GB/T4851 ,CNS-11887

2. Application
The shearing oven is suitable for the adhesion test of various high-temperature tapes, medical tapes, tapes, labels, rubber, waterproof rolls, protective films and other products at different temperatures, and complies with the YY/T0148 medical tape retention test standard

3. Character
1. Microcomputer control, accurate timing, reliable test results.
2. Mirrored stainless steel test panels and weights are designed in strict accordance with the standards to ensure the accuracy of the data.
3. Supports up to six stations simultaneously for fast results.
4. Supports group statistics and flexible sample size for easy testing.
5. Large touch screen operation for easy intuition.
6. P.I.D. high precision temperature control algorithm, temperature self-correction, more accurate temperature control.
7. Uniform and steady updraft, protect the uniform temperature in all corners of the cavity.
8. Professional temperature-controlled premixing room to ensure stable and accurate temperature.
9. Sample drop test time lock to prevent repeated bouncing.

4. Specification
