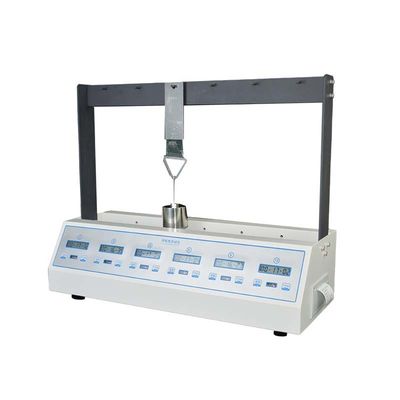

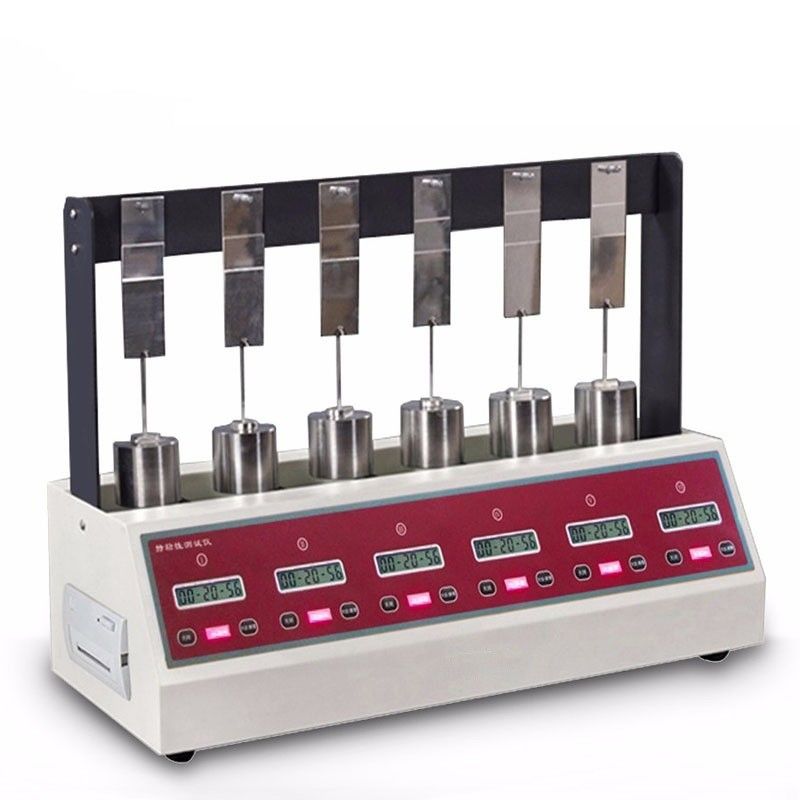

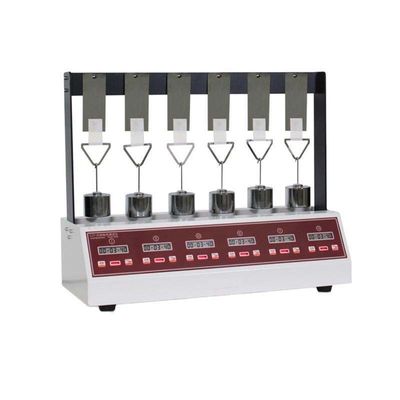

ASTM D3654 6 Bank Shear Tester Adhesive Tape Retention Force Test Machine
1. Use
Designed and manufactured according to national standard GB4851-2014 and national standard ASTM D3654, it is suitable for viscosity testing of adhesive tapes, medical patches, self-adhesive labels, protective films and other products.
2. Technical Features
1. The test plate and test weights are designed in accordance with the gb4851-2014 standard to ensure the accuracy of the test data.
2. It adopts metal electromagnetic sensors, automatically locks the time and has no faults
3. The system is controlled by a microcomputer and equipped with a PVC operation panel
4. The membrane keys and LCD liquid crystal screen facilitate users to quickly perform test operations and view data
5. After the test, each station automatically prints the test results
6. Base application
7. It is suitable for all kinds of adhesive products, such as pressure sensitive tape, medical patch, adhesive label, protective film, etc
3. Test principle
The test board with the specimen attached is hung vertically on the test stand, and the weight of the specified weight is hung at the lower end, and the specimen will be completely detached from the test board after a period of time on the test board. The tensile strength of the tape is tested by the displacement of the specimen after a period of time of adhesion or the time of complete detachment of the specimen.
4. Technical Specification
Standard configuration: Main machine, weight, triangle hook, test board, standard roller
Optional accesories: NIST SRM1810A fiberboard, horizontal test accessories: horizontal test rack, weight, test board, etc
