BGD 128 Anodized Aluminum Flow Cups Paint Viscosity Cup ISO 2431

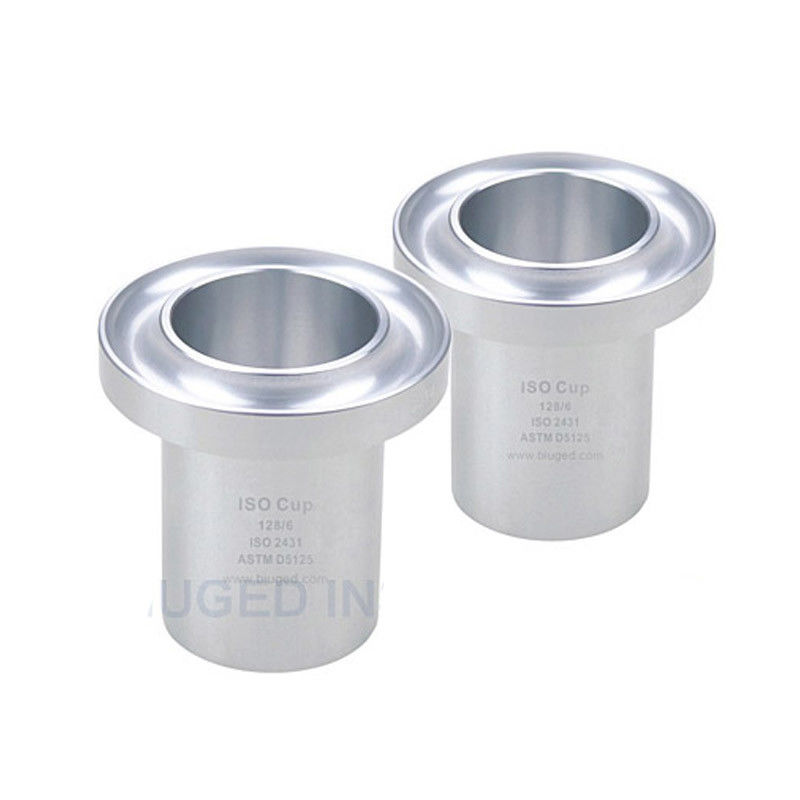

Large Image : BGD 128 Anodized Aluminum Flow Cups Paint Viscosity Cup ISO 2431

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	BGD 128

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200

Contact Now

BGD 128 Anodized Aluminum Flow Cups Paint Viscosity Cup ISO 2431

Description

Weight:	0.38kg	Suitable Flow Time:	30-100
Material:	Anodized Aluminum	Certification:	Includes Calibration Certification
Warranty:	1 Year
Highlight:	Aluminum Paint Viscosity Cup , Anodized Paint Viscosity Cup , Aluminum Paint Flow Cups

BGD 128 ISO 2431 ISO Flow Cups Paint Viscosity Cup

1.Description

ISO flow cup according to ISO 2431 and GB/T 6753.4 design, is a more common international test of the viscosity of liquid samples tool for measuring the flow time of Newtonian or nearly Newtonian liquids, the operator must be based on the size of the viscosity of the product to choose the appropriate outflow cup of a certain mark, in order to make its outflow time control in 30 seconds to 100 seconds between.

2.Technical Parameter

Details/ISO cup	ISO No 3	ISO No 4	ISO No 5	ISO No 6	ISO No 8
Orifice ф(mm)	3.0	4.0	5.0	6.0	8.0
Suitable Flow Time (sec)	30-100	30-100	30-100	30-100	30-100
Measurement Range (cSt)	7-42	34-135	91-326	188-684	600-2000
Ordering Information	BGD 128/3	BGD 128/4	BGD 128/5	BGD 128/6	BGD 128/8

Material	Anodized Aluminum
Weight	0.38 KG
Certification	Calibration certificate included
