BGD 125 ASTM D 1200 Ford Cups Coating Viscosity Cup

BGD 125 ASTM D 1200 Ford Cups Coating Viscosity Cup
BGD 125 ASTM D 1200 Ford Cups Coating Viscosity Cup BGD 125 ASTM D 1200 Ford Cups Coating Viscosity Cup

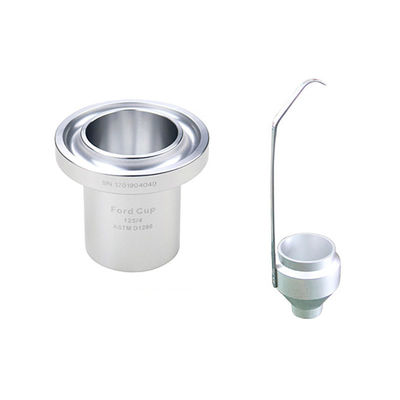

Large Image :  BGD 125 ASTM D 1200 Ford Cups Coating Viscosity Cup

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: BGD 125
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200
Contact Now

BGD 125 ASTM D 1200 Ford Cups Coating Viscosity Cup

Description
Internal Diameter: 50ml ± 2ml Outer Diameter: 86mm ± 0.1mm
Production Tolerance: ±2% Internal Orifice Length: 10mm ± 0.1mm
Certification: Includes Calibration Certification Warranty: 1 Year
Highlight:

astm paint testing equipment

,

astm paint testing instruments

BGD 125 ASTM D 1200 Ford Cups Coating Viscosity Cup

1.Description

Ford Cups produced by our company are in accordance with International Standard ASTM D1200, D333, and D365. For easy measurement of the viscosity of paints, inks, lacquers and other liquids. All Biuged Ford cups are machined anodic oxidation aluminum with removable stainless steel orifice and are guaranteed to be within 2% throughout the recommended range of use.



2.Technical Parameter

Details/Ford cup

Ford Cup

(No.2)

Ford Cup

(No.3)

Ford Cup

(No.4)

Ford Cup

(No.5)

Hand-Held Ford Cup

(No.4)

Internal Vertical Height(mm)

43±0.1

43±0.1

43±0.1

43±0.1

43±0.1

 Internal Orifice

               ф(mm)

2.53

3.40

4.12

5.20

4.12

External Orifice

               ф(mm)

5.0±0.5

5.5±0.5

6.0±0.5

7.6±0.5

6.0±0.5

Measurement Range

               (cSt)

25-120

49-220

70-370

215-1413

70-370

Suitable Flow Time

               (sec)

40-100

25-105

20-105

20-105

20-105

                                       Ordering Information

BGD 125/2

BGD 125/3

BGD 125/4

BGD 125/5

BGD 125/4P

Internal Diameter

50mm ± 0.05mm

Outer Diameter

86mm ± 0.1mm

Internal Orifice Length

10mm ± 0.1mm

Production Tolerance

±2%

Calibration Certificate

Included
