BGD 122 Nickel Plated Brass Iwata Viscosity Cup JIS standards

Large Image : BGD 122 Nickel Plated Brass Iwata Viscosity Cup JIS standards

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	BGD 122

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200

Contact Now

BGD 122 Nickel Plated Brass Iwata Viscosity Cup JIS standards

Description

Volume Of Cup:	50ml ± 2ml	Orifice Diameter:	3.5mm ± 0.1mm
Cup Material:	Nickel-plated Brass	Suitable Test Range:	20s To 100s
Certification:	Includes Calibration Certification	Warranty:	1 Year
Highlight:	Brass Iwata Viscosity Cup , Iwata Viscosity Cup JIS

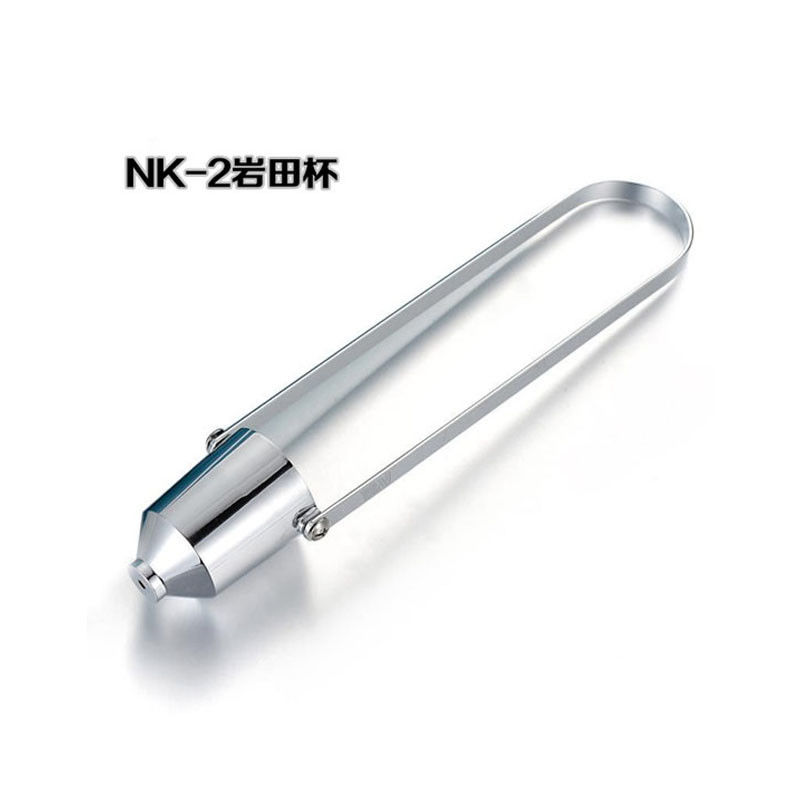

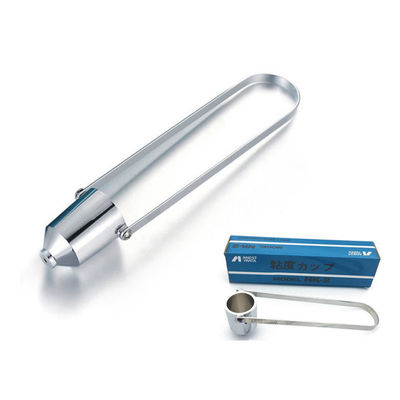

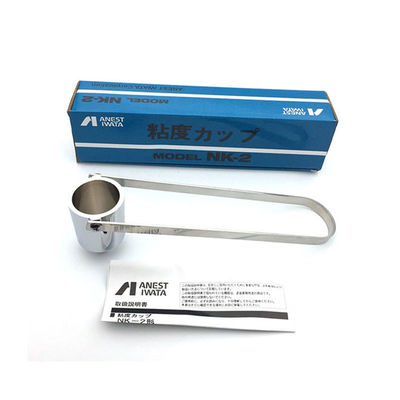

BGD 122 Japanese Iwata Cup Viscosity Cup

1.Description

Designed in accordance with Japanese (JIS) standards, it is suitable for quick measurement of the viscosity of the coating material to be sprayed at the construction site (adjusting the sample to the most suitable viscosity for spraying before spraying); it is widely used in the coating industry of electronic products and plastics. Together with the Iwata spray gun, this measuring cup is a must-have tool for coating plants.

2.Technical Parameter

Volume of Cup	50ml ± 2ml
Orifice Diameter	3.5mm ± 0.1mm
Cup Material	Nickel-plated brass
Cup External Diameter	42.0mm ± 0.2mm
Cup Internal Diameter	35.0mm ± 0.2mm
Suitable Test Range	20s to 100s
Ordering Information	BGD 122---NK-2 Iwata Cup
