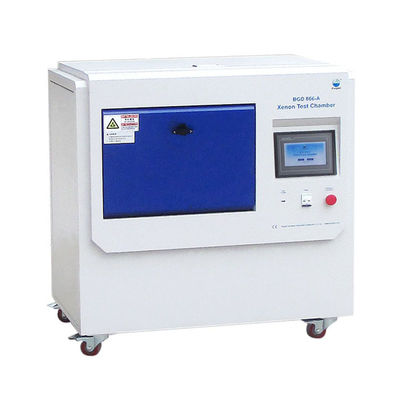

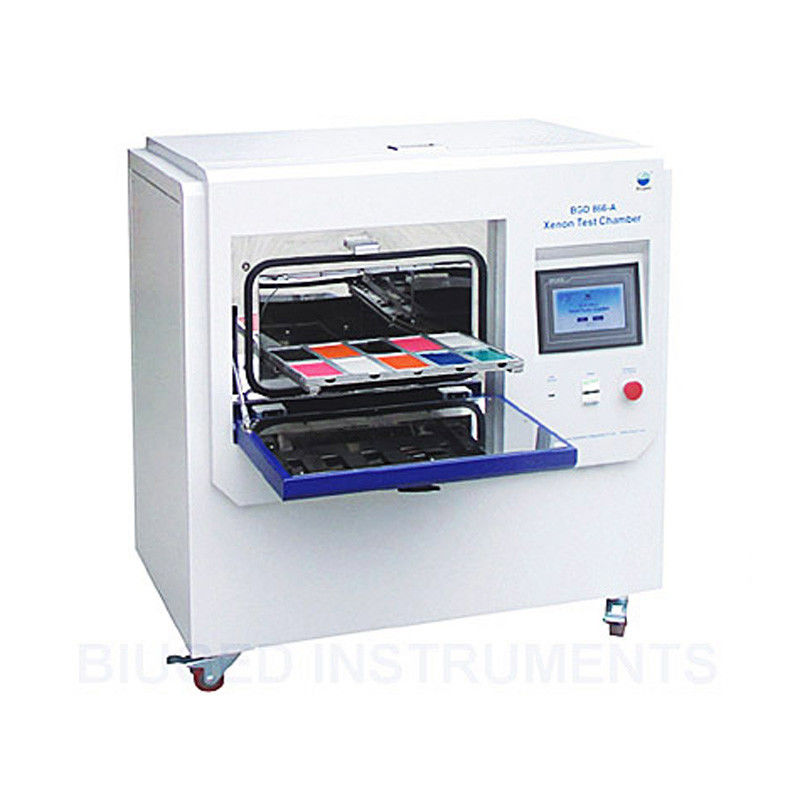

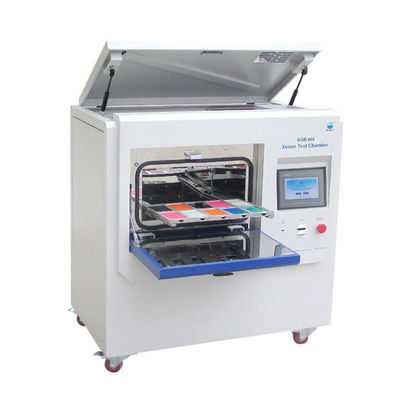

BGD 866 Small Xenon Test Chamber Aging Test Machine

BGD 866 Small Xenon Test Chamber Aging Test Machine

1.Description

Compared with the BGD 865 Desktop Xenon Lamp Aging Tester, this 866 tester is equipped with a spray function to simulate the effects of rain or other moisture when the material is actually used outdoors, and it can also control the interruption of the test by monitoring the total irradiation energy obtained by the sample plate during the test.
The operator can set various parameters (irradiation energy, irradiation time, blackboard temperature, spraying time, etc.) required for the test through the man-machine interface, and can check the machine's operating status at any time, and the operating parameters during the test can be downloaded directly to the computer through the USB interface.

 2.characteristics:
* A variety of test procedures can be set arbitrarily (can be arbitrarily compiled test program and store 6 user preset programs, each program can be set to 10 segments of data)
* Can set the total radiation energy value that the sample plate needs to obtain during the test to end the test.
* With spray function, can set the spray time and spray interval time.
* Display the relative humidity of the studio
* Xenon lamp light source in accordance with international standards, more real and best simulation of the full spectrum of sunlight, stable light source to ensure the comparability and reproducibility of test data.
* Full automatic control of irradiation energy (using closed-loop control system is more accurate and stable), can automatically compensate for changes in irradiation energy due to lamp aging and any other reasons, wide controllable range.
* Xenon lamp service life of up to 1500 hours and low price, replacement costs only one-fifth of imported
* A variety of optional filters, in line with a number of domestic and international test standards.
* Alarm protection function: blackboard over-temperature, irradiance error, open door shutdown protection, wind pressure is too low protection.
* Rapid results: products exposed to the outdoors, the maximum light intensity of direct sunlight only a few hours a day. b-sun test chamber can let the test samples by the equivalent of the summer noon sunlight, 24 hours a day, every day. As a result, samples can age quickly.
* Affordable: The B-SUN tester creates a breakthrough price/performance ratio with a low purchase price, low lamp price and low operating costs. Now even the smallest laboratory can afford to perform xenon arc lamp testing.

3.Technical Parameter
