BGD 865 Bench Xenon Test Chamber Xenon UV Weathering Test Machine

BGD 865 Bench Xenon Test Chamber Xenon UV Weathering Test Machine

1.Description

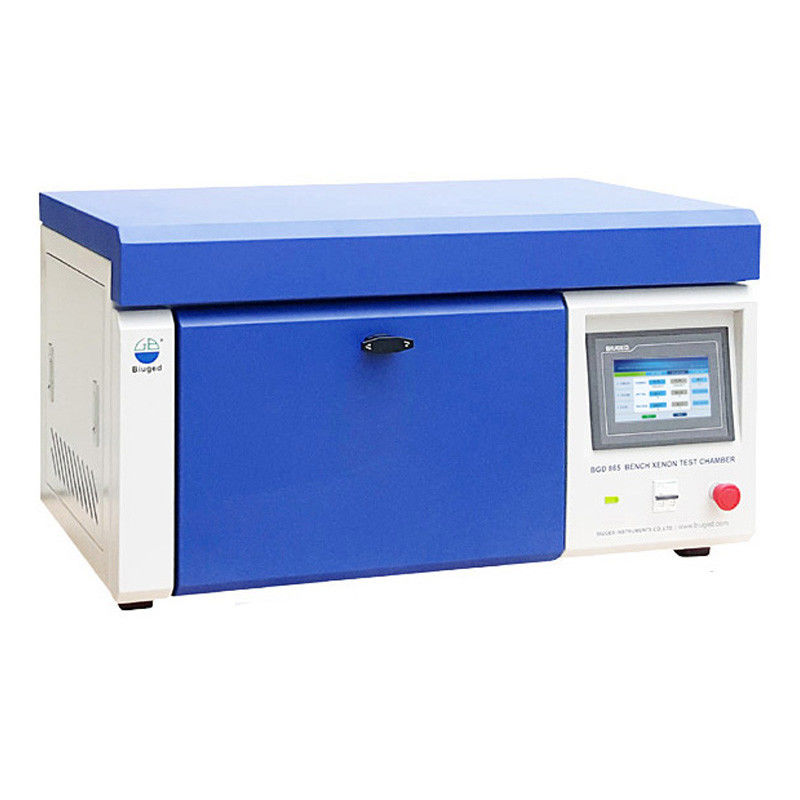

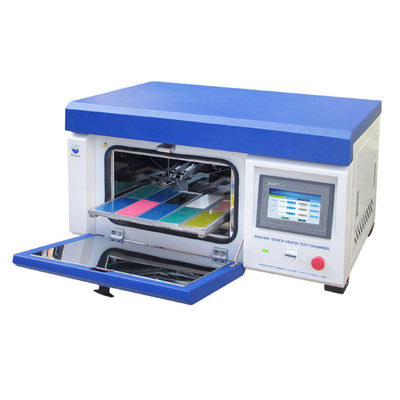

This is a compact, simple and affordable xenon aging tester that utilizes a low-power, air-cooled xenon lamp that ensures sufficiently high and uniformly distributed irradiation energy within the chamber by means of a mirror reflection system. It is equipped with a UV extension filter as standard, i.e. allowing UV light to pass below the cut-off point of natural sunlight (equivalent to un-atmospheric sunlight) to provide faster and harsher test conditions for accelerated artificial climate aging tests.

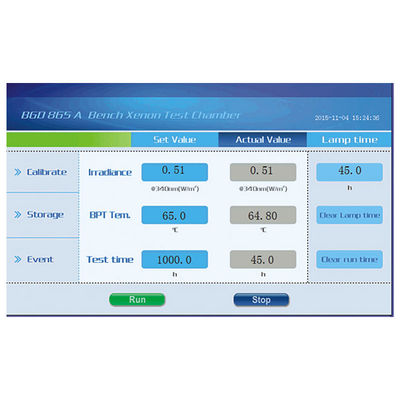

The operator can arbitrarily set various parameters required for the test (irradiation energy, irradiation time, black panel temperature, etc.) through the human-machine interface, and can check the machine's operating status at any time, and the operating parameters during the test can be downloaded directly to the computer through the USB interface.

Characteristics:
* Xenon lamp light source in line with international standards, more real and best simulation of the full spectrum of sunlight, stable light source to ensure the comparability and reproducibility of test data.
* Full-automatic control of irradiation energy (using closed-loop control system is more accurate and stable), can automatically compensate for lamp aging and any other reasons for changes in irradiation energy, controllable range is wide.
* Xenon lamp service life of up to 1500 hours and low price, replacement costs for only one-fifth of the imported; lamp replacement is simple.
* A variety of optional filters, in line with a number of domestic and international test standards.
* Alarm protection function: blackboard over-temperature, irradiance error, open door shutdown protection, wind pressure is too low protection.
* Rapid results: products exposed to the outdoors, the maximum light intensity of direct sunlight only a few hours a day, B-SUN tester can let the test samples by the equivalent of the summer midday sunlight, 24 hours a day, every day. As a result, samples can age quickly.
* Affordable: The B-SUN tester creates a breakthrough price/performance ratio with a low purchase price, low lamp price and low operating costs. Now even the smallest laboratory can afford to perform xenon arc lamp testing.

3.Technical Parameter
