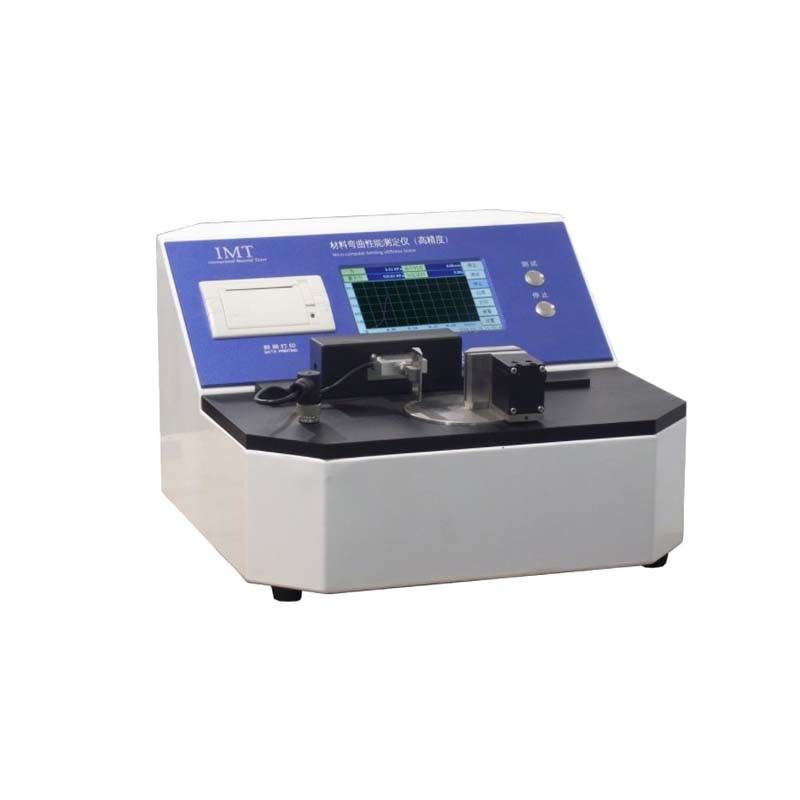

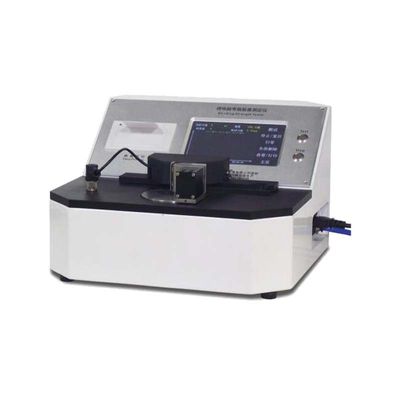

ISO 5628 Paperboard Bending Stiffness Tester Machine With Digital Display

ISO 5628 Paperboard Bending Stiffness Tester Machine With Digital Display
ISO 5628 Paperboard Bending Stiffness Tester Machine With Digital Display
ISO 5628 Paperboard Bending Stiffness Tester Machine With Digital Display ISO 5628 Paperboard Bending Stiffness Tester Machine With Digital Display ISO 5628 Paperboard Bending Stiffness Tester Machine With Digital Display

Large Image :  ISO 5628 Paperboard Bending Stiffness Tester Machine With Digital Display

Product Details:
Place of Origin: China
Brand Name: Lonroy
Model Number: LR-F006
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Supply Ability: 200
Contact Now

ISO 5628 Paperboard Bending Stiffness Tester Machine With Digital Display

Description
Bend Angle: 1-92° Adjustable Measure Thickness: 0.01-5mm
Sample Size: 38*70mm Standard Size Weight: 13 Kg
Highlight:

Paperboard Stiffness Tester Machine

,

Bending Stiffness Tester Machine

ISO 5628 Paper Board Bending Stiffness Tester Digital Display



1. Use
Digital display (touch screen) crease stiffness tester, is suitable for testing all kinds of paper, cardboard and all kinds of new materials bending crease stiffness tester. This tester is suitable for testing the stiffness of paper, cardboard and other sheets with thickness less than 3mm, as well as for testing the flexibility of wires, leather and film.

Test Standard
GB/T 23144 "general principles for the determination of static bending stiffness of paper and paperboard";
GB/T 22364 "determination of bending stiffness of paper and paperboard";
ISO 5628 "paper and board - determination of static bending stiffness - general principles";
ISO 2493 paper and board - determination of flexural stiffness


2. Specification

Sample size 38*70mm Standard size
Measure thickness 0.01-5mm
Resolution 0.01mN
Bend angle 1-92° adjustable
Multi-angle measurement the word test can measure 3 different angles at the same time,1° -90°  can set
Angle speed control 0.5-5°/sec Three test angles and duration are independently adjustable
Angle accuracy ±0.1°
Bend length Choose different force arms according to different materials
8 grade force arms choose length span: 1-60mm, 5mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm, 8 grade adjustable.
Length span accuracy ±0.1mm
Bend time 5-35s adjustable
Self-calibrate The equipment can realize self-calibration and standard calibration tools
Data output 7 inch touched screen,with test curve
Print output Thermal paper printer
Test fixture manual fixture operation, visual menu operation
Clamping mode unlimited clamping, non - destructive continuous clamping
Signal output the device can achieve self-calibration: standard calibration tools

ISO 5628 Paperboard Bending Stiffness Tester Machine With Digital Display 0



Sample cutter Specification:


Sample size
 		 bending stiffness (70x38)mm

crease stiffness
 		 (38x36)mm

Parallelism of two long sides
 		 ≤0.015mm

Sampling thickness
 		 (0.1~1.2)mm

Overall size
 		 About300×90×90mm

Weigh
 		 13 kg
