Lab Ring Crush Tester Compression Resistance Test Equipment 5N - 5000N

Ring Crush Tester Compression Resistance Test Equipment 5 ~ 5000N

1. Introduction

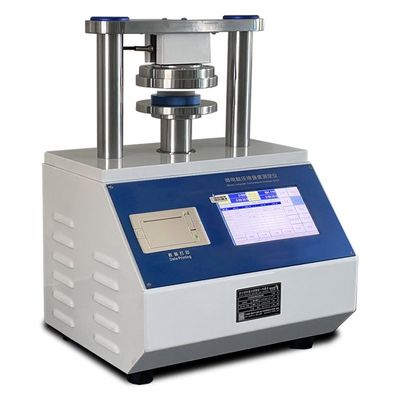

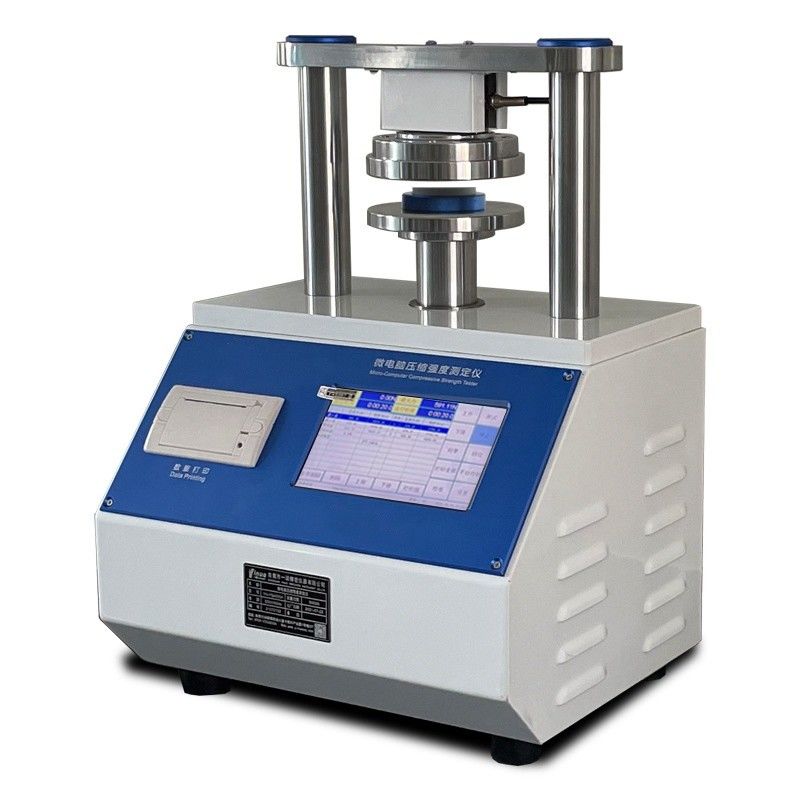

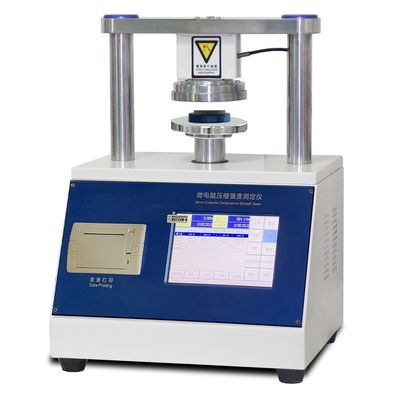

Microcomputer compression strength tester is a touch screen controlled paper and board compression strength tester, which is used to test paper ring pressure strength, cardboard edge pressure strength, corrugated board bonding strength, corrugated board compression strength and so on.Paper mills are usually used to test the RCT of paper with a thickness of 0.15 ~ 1.00mm.Cardboard, carton factories and carton enterprises are commonly used to test corrugated board edge compression strength (ECT), flat compression strength (FCT), bonding strength (PAT) and flat compression strength (CMT) with diameter less than 60mm.This instrument is an ideal auxiliary test tool for paper making enterprises, paperboard manufacturers, carton manufacturers, carton users and quality supervision and inspection departments.

2. Test standard
GB/T 2679.8 determination of ring compression strength of paper and paperboard(sample area: 152.4×12.7mm)
GB/T 6546 "determination of corrugated board edge pressure strength";(sample area: 25mm×100mm)
GB/T 6548 "determination of adhesive strength of corrugated board";(sample area: 25mm×80mm)
GB/T 2679.6 determination of flat compression strength of corrugated base paper;(sample area: 64.5cm²/32.2cm²)


3. Specification
