IEC61730 UL1703 Back Panel Scratch Resistance Tester Back Sheet Scratch Tester Machine

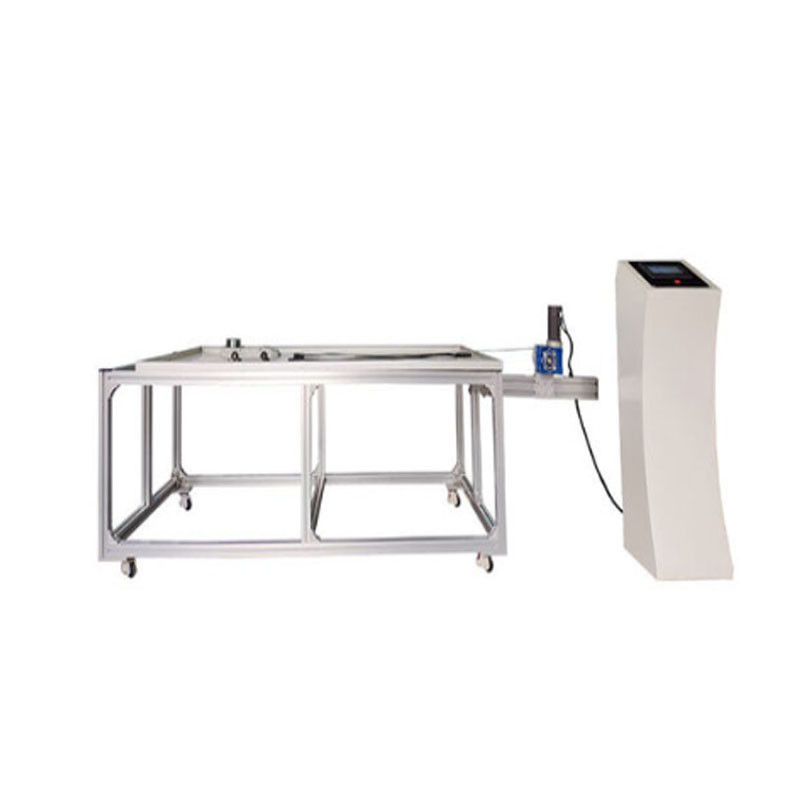

Large Image : IEC61730 UL1703 Back Panel Scratch Resistance Tester Back Sheet Scratch Tester Machine

Product Details:

Place of Origin:	China
Brand Name:	LONROY
Certification:	CE ISO ASTM
Model Number:	LR-V2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	,L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200 pieces

Contact Now

IEC61730 UL1703 Back Panel Scratch Resistance Tester Back Sheet Scratch Tester Machine

Description

Power:

220v

Warranty:

1 Year

Highlight:

IEC61730 Scratch Resistance Tester

UL1703 Scratch Resistance Tester

Back Sheet Scratch Tester Machine

IEC61730 UL1703 Back Panel Scratch Resistance Test Machine Module Back Sheet Scratch Tester
Module back sheet scratch tester purpose: The photovoltaic module back sheet scratch tester uses a sharp object specified in a standard to scratch the module surface at a certain speed, and then evaluates the module's ability to resist scratches by sharp objects. Module back sheet scratch tester applicable standards: IEC61730-2, UL1703

2.Technical specifications

The operating table is made of aluminum alloy
table size	1.4m×0.65m
The operating table includes a traction pulley and the traction head is easy to move
Trolley part
Carbon steel saw blade
Ensure the thickness requirement	0.64mm±0.05mm
blade radius	0.115±0.025mm
Adjustable distance and angle
The saw blade is equipped with a weight box
The weight can be adjusted according to the requirements of IEC61730-2 standard to ensure that the test point is subjected to gravity of 8.9N±0.5N
The motor is used for constant speed traction, the speed is continuously adjustable, and the traction direction is adjustable
It can ensure that the cutting vehicle passes through the component surface at a speed of (150±30) mm/s
