IEC61730-2004 Standard Component Rupture Tester with 45.5kg Impact Bag and 300mm-1220mm Impact Height for Tempered Glass Test Chamber

Large Image : IEC61730-2004 Standard Component Rupture Tester with 45.5kg Impact Bag and 300mm-1220mm Impact Height for Tempered Glass Test Chamber

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-V3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

IEC61730-2004 Standard Component Rupture Tester with 45.5kg Impact Bag and 300mm-1220mm Impact Height for Tempered Glass Test Chamber

Description

Impact Height:	300mm~1220mm	Sample Frame Size:	Customizable
Rubber Strip Thickness:	3mm	Rubber Strip Hardness:	Shore A50°
Impact Bag Mass:	45.5 ± 0.5kg	Lead Ball Diameter:	2.5-3.0mm
Highlight:	Component Impact Resistance Tester , Rupture Impact Resistance Tester , Tempered Glass Impact Resistance Tester

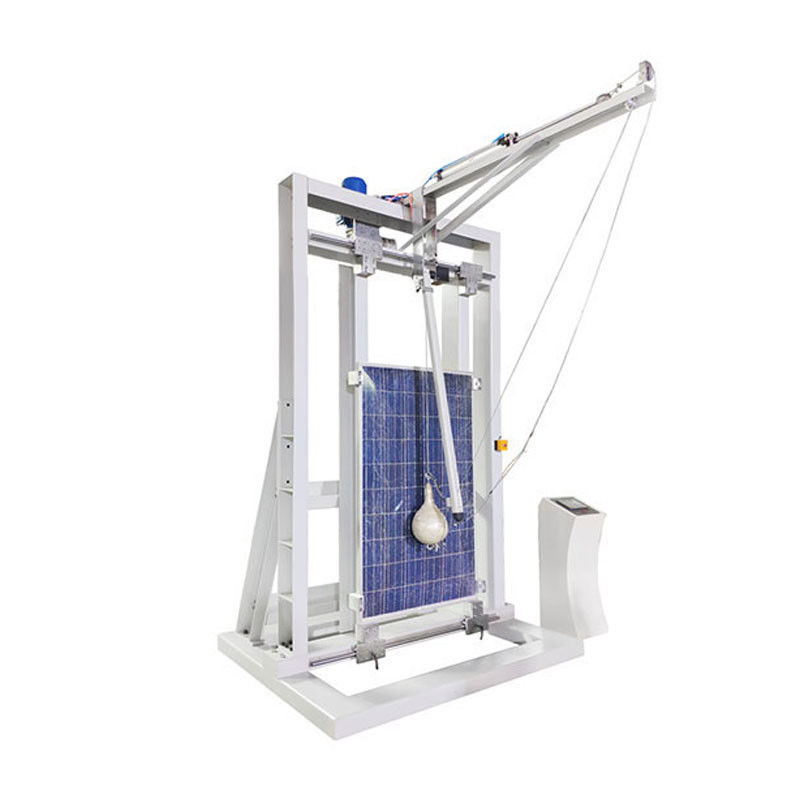

Component Rupture Tester Impact Resistance Tester For Tempered Glass Environment Test Chamber

Component Rupture Tester Impact Resistance of Tempered Glass

This component rupture test machine is designed to evaluate the impact resistance of tempered glass components by using a specified mass of heavy objects to strike the component surface, thereby determining the component's ability to withstand heavy object impact.

Applicable Standards

Meets IEC61730-2004 standard requirements for component testing and evaluation.

Technical Specifications

Specification	Value
Impact Height	300mm ~ 1220mm
Test Frame Inner Edge Size	Customizable based on customer component size requirements
Rubber Strip Specifications	3mm thickness, 15mm width, Shore A50° hardness
Guardrail Configuration	Installed on both sides
Impact Bag Mass	45.5 ± 0.5kg
Impact Bag Filling Material	Lead balls with diameter 2.5-3.0mm

Power and Air Requirements

Motor Working Voltage: 220V power supply
Compressed Air: 3-5kg pressure requirement

Tag:

Contact Person: Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
