IEC 61215 UV Aging Test Chamber Solar Panel Testing Equipment PV Module Tester

IEC 61215 UV Aging Test Chamber Solar Panel Testing Equipment PV Module Tester
IEC 61215 UV Aging Test Chamber Solar Panel Testing Equipment PV Module Tester

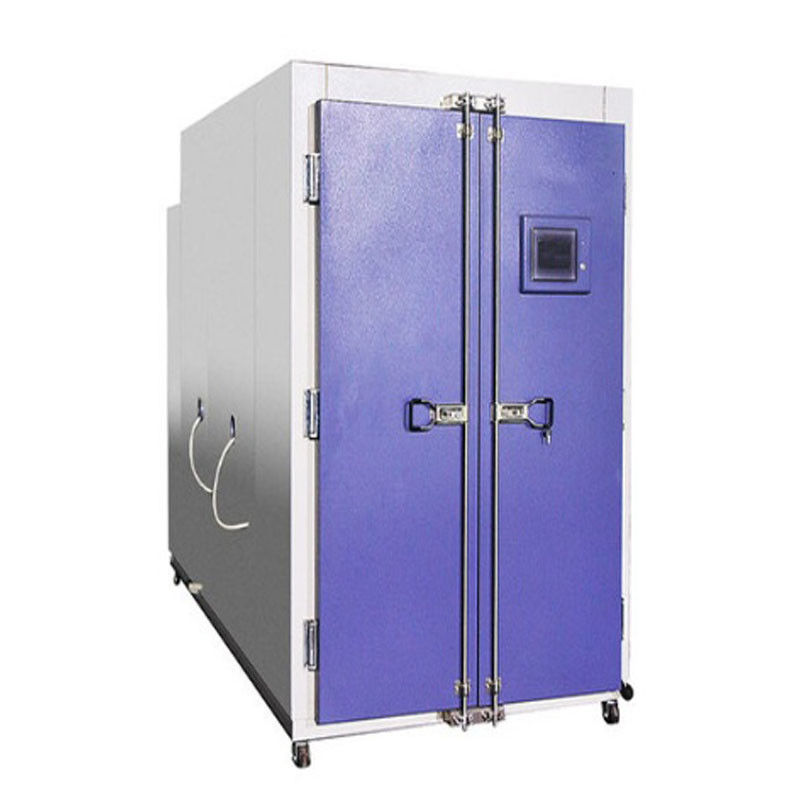

Large Image :  IEC 61215 UV Aging Test Chamber Solar Panel Testing Equipment PV Module Tester

Product Details:
Place of Origin: China
Brand Name: LONROY
Certification: CE ISO ASTM
Model Number: LR-E01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden pa'ka'ge
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200 pieces
Contact Now

IEC 61215 UV Aging Test Chamber Solar Panel Testing Equipment PV Module Tester

Description
Highlight:

IEC 61215 UV Aging Test Chamber

,

Solar PV Module Tester

,

IEC 61215 Solar Panel Testing Equipment

IEC 61215 ultraviolet aging test chamber photovoltaic module testing machine solar panel testing machine
1. Product description
Uv pretreatment tester Uses: The UV aging tester of photovoltaic modules simulates the damage caused by ultraviolet rays in sunlight on components exposed outdoors for a long time. The device takes only a few days or weeks to reproduce the UV-aging resistance properties of the module-related materials that would take months or years outdoors.
Applicable standard ultraviolet aging test chamber: IEC 61215, IEC 61646 standard requirements





Materials used high-quality materials that can completely block ultraviolet rays, have good sealing and thermal insulation properties

Total UV irradiation
 area of the equipment
 		 greater than 2000mm×2000mm, meeting the requirements for testing two 2m×1m components at the same time

Light source life
 		 The system uses a single set of xenon lamps with a life of about 1000 hours. A set of spare parts is provided when the equipment is delivered, with a service life of more than 2000 hours.

Relative energy ratio of single lamp UVA and UVB
 		 UVB accounts for about 3% to 10% of the total energy

Irradiation intensity
 		 The irradiation intensity of the wavelength of 280nm to 385nm can reach about 100W/m², 280nm to 320nm <=10%, ensuring that the test cycle is shortened as much as possible

Irradiation uniformity  better than ±15%

Real-time monitoring and display of UVA and UVB intensity
One UVA (320nm to 385nm) and one UVB (280nm to 320nm) fiber optic probe
Component surface temperature
 		 60ºC±5ºC

Temperature resolution
 		 0.1ºC

Ozone
 		  Almost no ozone is generated

Lighting method
 		 top lighting, the component test plane is perpendicular to the light source

Touch screen control and real-time monitoring, automatically cut off the light source when the set value is reached
 Real-time graphical display of component surface temperature, measurement accuracy ±0.1ºC
