Wet Heat Environment Test Chamber PV Module Wet Heat Test Machine IEC 61215

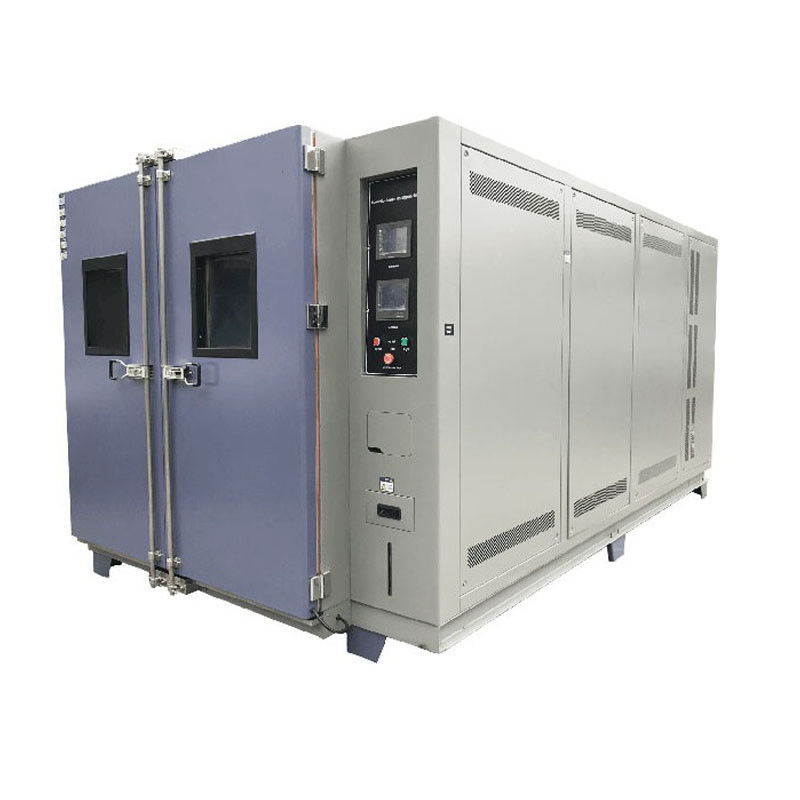

Large Image : Wet Heat Environment Test Chamber PV Module Wet Heat Test Machine IEC 61215

Product Details:

Place of Origin:	China
Brand Name:	LONROY
Certification:	CE ISO ASTM ICE
Model Number:	LR-H16

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden pakage
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,T/T,D/P,Western Union
Supply Ability:	200 pieces

Contact Now

Wet Heat Environment Test Chamber PV Module Wet Heat Test Machine IEC 61215

Description

Warranty:

1 Year

Power:

220v

Highlight:

Wet Heat Environment Test Chamber

Environment Test Chamber IEC 61215

Wet Heat Test Chamber PV Module Wet Heat Test Machine Meet Standard IEC 61215
The PV module wet heat test machine is in a closed space, exposing the module to a high temperature and high humidity environment for a period of time, so as to test whether the module has the ability to work in this environment.
Applicable stand

ards for wet heat test machine (environmental chamber): According to IEC 61215 and UL 1073 standards

Test temperature	85ºC±2ºC
Relative humidity	85%±5%
Temperature fluctuation	≤±1ºC
Temperature deviation	≤±1ºC
Temperature uniformity	≤2ºC
Humidity range	30~95%RH
Relative humidity deviation	≤±2.5 %RH (humidity>75%RH)
Common humidity points	85ºC/85%RH continuous time ≥1000h 90ºC/90%RH continuous time ≥1000h
Touch screen + PID self-control
Can hold 12 test components
Inner box size	about 1.5×2.5×1.5m (LWH)
Outer box size	about 2.5×3.0×2.5m (LWH)
Inner box material	stainless steel panel (SUS #304)
Outer box material	steel plate with baking varnish
PID automatic calculation
Insulation material	rigid foam and glass wool
Test object entry and exit door	double door, middle door
With power-off program memory	automatically start and continuously execute program function after restart
Communication interface	with RS-232 or RS-485 communication interface
Air supply circulation system	motor
Refrigerant	environmentally friendly refrigerant; condenser
Screen display	touch screen control
Language switching	Chinese and English switching function
Data acquisition	export, view graphics function
Power supply	380V 60HZ
