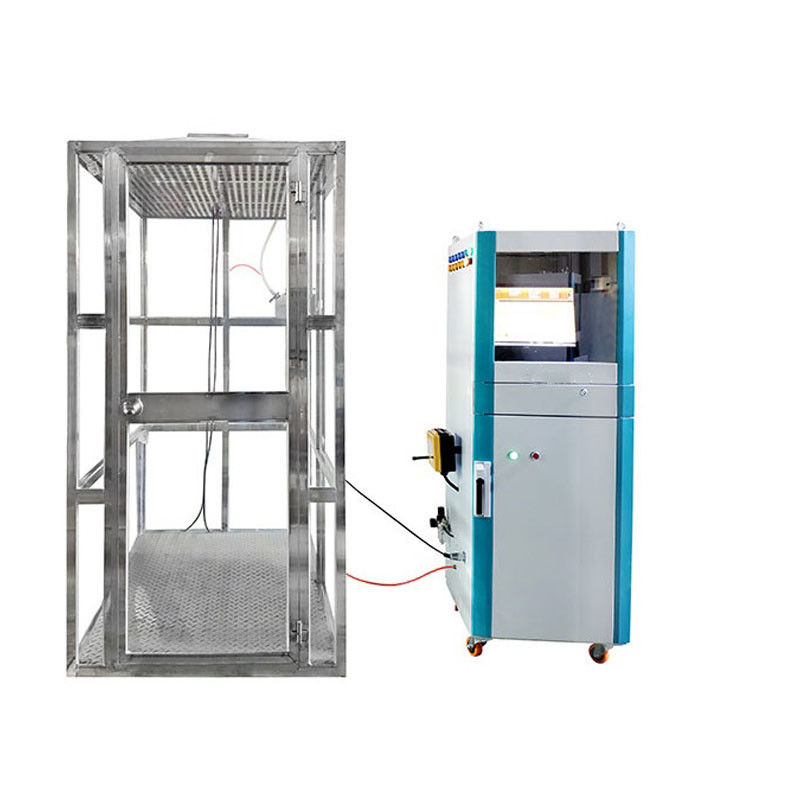

GB2626 GB32610 Small Meter Leakage Testing Machine Leak Test Machine

GB2626 GB32610 Small Meter Leakage Testing Machine Leak Test Machine
GB2626 GB32610 Small Meter Leakage Testing Machine Leak Test Machine

Large Image :  GB2626 GB32610 Small Meter Leakage Testing Machine Leak Test Machine

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: LR-815
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200 pieces
Contact Now

GB2626 GB32610 Small Meter Leakage Testing Machine Leak Test Machine

Description
Display Type: Digital Size: Small
Highlight:

GB32610 Small Meter

,

GB2626 Small Meter

,

Small Leakage Testing Machine

Leakage Testing Machine Tester Leak Test Machine

Applicable standard: meet the test requirements of GB2626 and GB32610 test standards



2.Technical Parameters

NaCl gas volume  greater than 100L/min
The concentration of NaCl particulate matter is 10±2mg/m³
NaCl particulate matter aerodynamics  particle size distribution is 0.02~2um,
and the median mass diameter is about 0.6um
 Gas volume of oily particulate matter  greater than 100L/min
Concentration of oily particulate matter  20~30mg/m³
Oil mist aerodynamics  particle size distribution is 0.02~2um,
and the median mass diameter is about 0.3um
The dynamic range of the particle detector  0.001~200mg/m³; Accuracy 1%;
The response time is not more than 500ms
Sampling pump  0.50~4L/min
Flow rate  1~2L/min
Particulate matter concentration monitor
Includes test chamber
Particulate matter generating device
 Aerosol output volume flow  1-2.5m³/h
Aerosol generation rate  0.5-2×1013P/h
Atomization pressure  ≥10Kpa-80Kpa (adjustable)
Aerosol particle size distribution  0.02-2um
Aerosol type  DEHS cold polydispersion, PAO/DOP cold polydispersion
Size  200 × 250 × 370mm in length
Weight  3KG
The external air source (compressed air) is less than 0.7Mpa, and the air supply is clean and stable
Particulate matter concentration sensor (TSI)
 90 degrees of light scattering
Concentration range  0.001~150mg/m³
Resolution  0.1% of the reading or 0.001mg/m³, whichever is greater
Stability of return to zero  under the time constant of 10 seconds,
the ± is 0.001mg/m³ in 24 hours
 Particle size range  0.1~10um
Flow rate  3.0L/min
The factory setting is adjustable in the range of 1.4~3.0L/min
Temperature coefficient  about +0.001mg/m³/per °C
(relative to the temperature deviation at the time of the last zeroing)
Operating temperature  0~50°C
Storage temperature  -20~60°C
 Operating temperature  0~95%RH (no condensation)
Time constant  1~60 seconds (adjustable)
Data collection  data points
 Communication interface  USB
 Dimensions  125×121×316mm
Weight  1.3kg (net weight), 1.5kg (including 1 battery)
Power supply  AC adapter (standard) or rechargeable battery
Alarm output  buzzer
Display  3.5inVGA color touch screen
Protective effect  The inhalation gas sampling tube is
at the lower end of the nostril (in the oral cavity)
The protective effect adopts a breathing simulator to simulate the human breathing state.
Breathing simulator
Sinusoidal airflow frequency 20 times/min
 Respiratory flow control (30±1) L/min
 Respirator flow range  0-40 L/min
 Instrument accuracy level  level 1
Real-time display of leakage rate
Automatically calculate the leakage rate
The software has the function of switching between simplified Chinese, traditional Chinese and English
The software supports data storage, historical data query, data export/printing, etc
The report can be saved in Word, Excel, PDF, JPG and other formats
Equipped with a set of special computers
