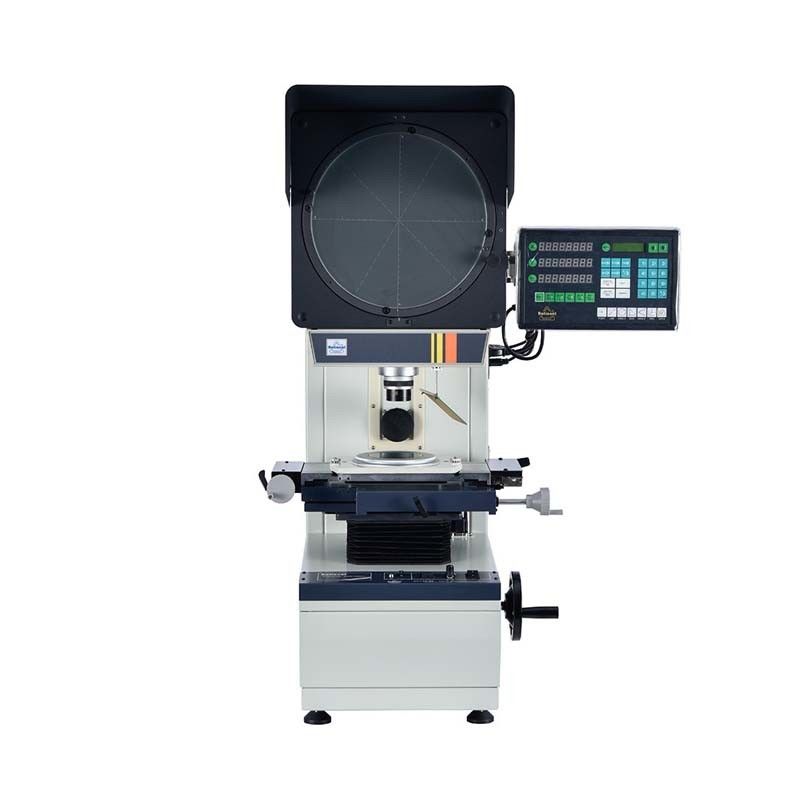

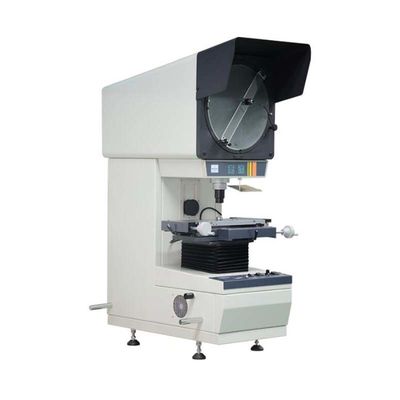

Forward And Reverse Image Profile Projector Machine Contour Projection Measurement

Model

CPJ-3025A/AZ

Work platform

Metal platform size(mm)

450×280

Glass table size(mm)

306×196

X stroke(mm)

250

Y stroke(mm)

150

Z stroke
(adjust forcus)(mm)

100(focus adjustable)

Equipment accuracy

3+L/75

X,YCoordinate digital display resolution:0.5um

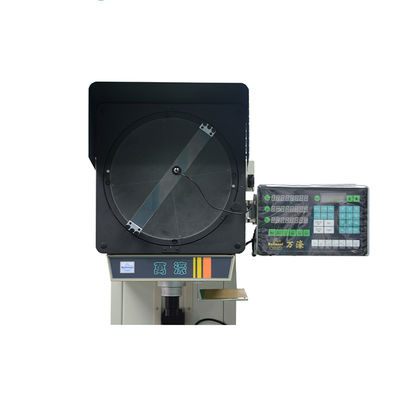

Projecto screen

Projector screen size(mm):Ø312,use range > Ø300 (It's engraved with meters)

Projection rotation range:0~360o

Rotation Angle digital resolution:1’or 0.01o

objective

magnification: 10X(optional) 20X(optional) 50X(optional) 100X(optional)

Object squared field of view(mm) Ø30  Ø15   Ø6   Ø3

Object side working distance(mm) 77.7 44.3 38.4 25.3

 data processing system

Dc-3000 Multi-function data processing system, full English display can do multi-point sampling, coordinate rotation, point, line, distance, Angle detection

illumination

Both the transmitted and reflected light sources are 24V and 150W halogen lamps

Power

110V/220V(AC),50/60Hz,400W

Cooling methods

Forced air cooling (3-axis fan)

Outside size

810×780×1120

weight

unit:kg

180KG
