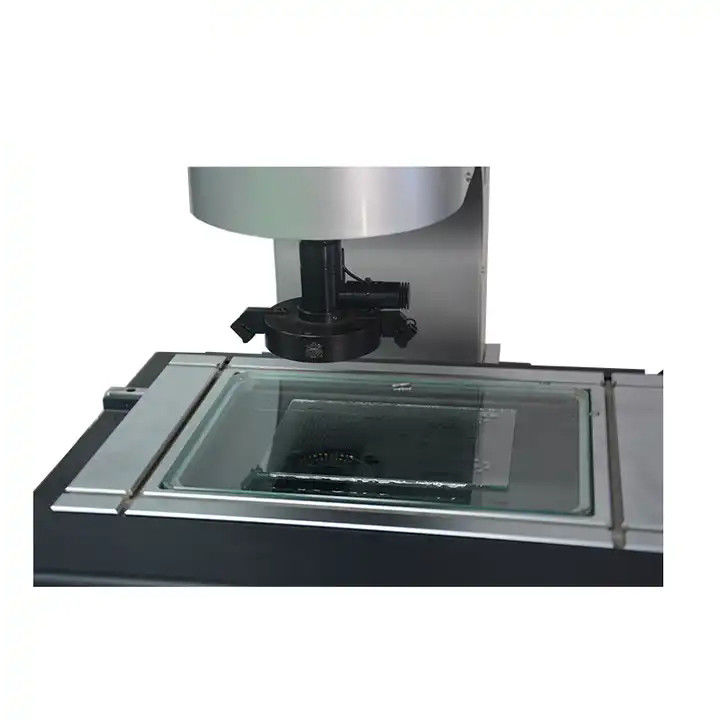

VMM Video Measuring Machine Automatic Image Measuring Instrument

Model

VMS-2515H

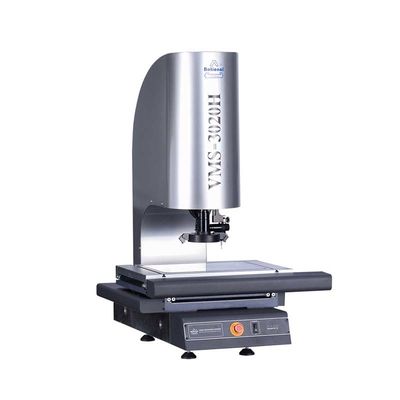

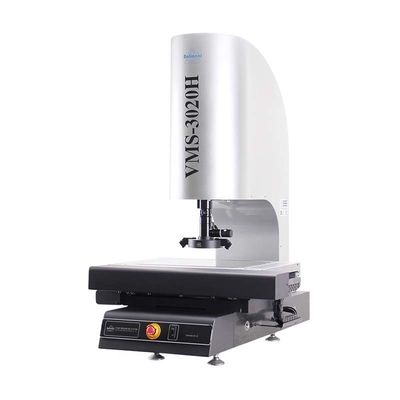

VMS-3020H

VMS-4030H

Working table

Metal table size (mm)

450×280

500×330

606×466

Glass table size (mm)

306×196

350×250

450×350

Travel (mm)

220×120

270×170

370×270

Linear scale resolution

0.5μm

Indication error

E1XY=(2.5+L/100)μm (L is the length of the measured object. Unit: mm)

Consistency error of origin in different sections

E0≤20 (every 100mm displacement in Z axis)

Dimension (mm)

760×600×900

760×600×900

970×670×940

Weight (kg)

146

168

266

Z-axis travel (mm)

150 (Can be customized to 300mm)

Accessories

1X lens tube (Standard)

0.5X  lens tube (Optional)

Working distance (mm)

Zoom lens

0.7-4.5X

0.7-4.5X

Additional lens

Magnification

 Field of view (mm)

Magnification

Field of view (mm)

0.5X (Optional)

10-64X

22-3.4

5-32X

44-6.8

175

1X (Standard)

20-128X

11.1-1.7

10-64X

22-3.4

92

2X (Optional)

40-256X

5.5-0.9

20-128X

11.1-1.7

36

Brand PC (Standard),  joystick (Standard)

Video system

1/2” color CCD camera. Brand zoom lens (Optional)

Zoom lens magnification: 0.7X~4.5X. Total Magnification: 20~128X (19.5 inches display. Resolution: 1440*900)

Field of view: 11.1mm~1.7m

Power supply: AC 100-240V 50/60Hz. Power: 250W (excluding PC)
