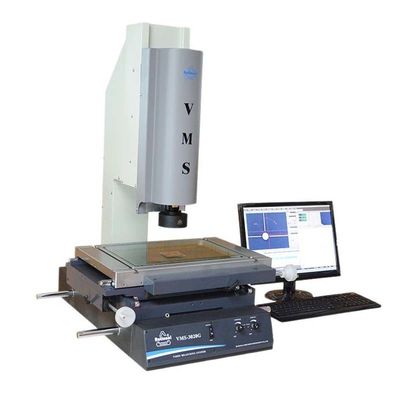

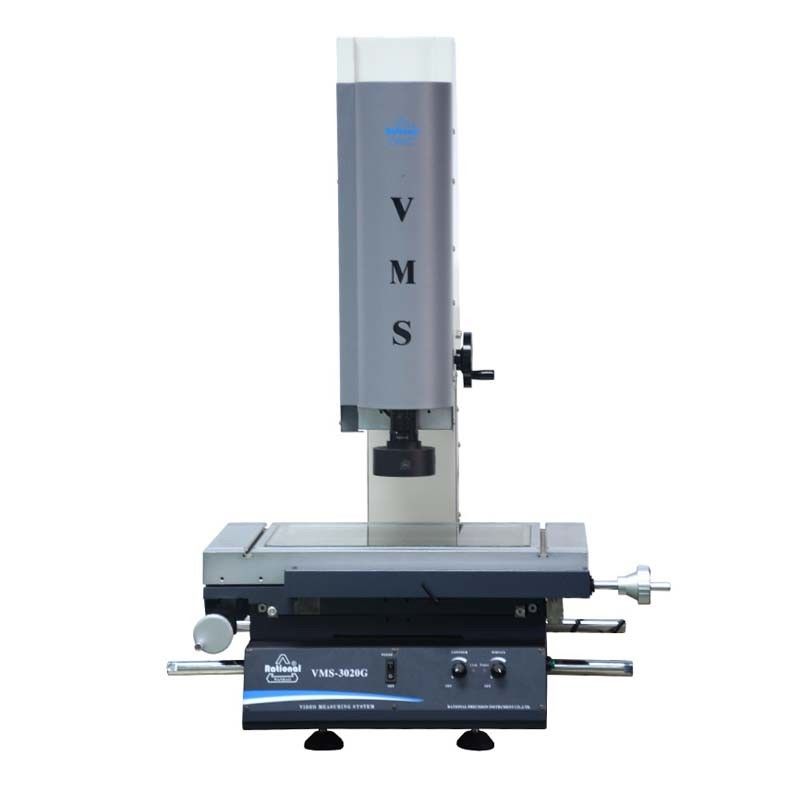

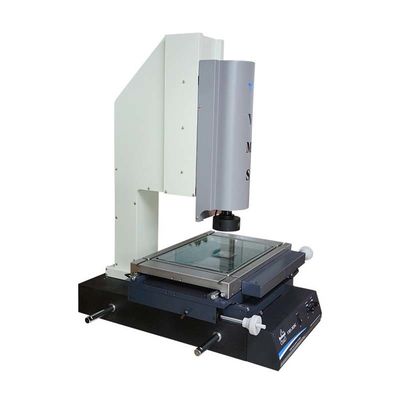

VMS-3020G Vms Video Measuring System Manual VMM Video Measuring Machine

Model

VMS-1510G

VMS-2010G

VMS-2515G

VMS-3020G

VMS-4030G

Metal Worktable Size(mm)

354*228

404*228

450*280

500*330

606*466

Glass worktable size(mm)

404*228

260*160

306*196

350*250

450*350

Travel(mm)

150*100

200*100

250*150

300*200

400*300

Axis X,Y,Z Resolution

                                                            0.5μm

Accuracy(μm)

                                                E1xy=(2.5+L/100)μm

Dimension(L*W*H)mm

540*560*850

540*560*850

760*600*900

760*600*900

970*670*940

Weight(kg)

100

110

120

140

150

Axis Ztravel(mm)

200(can be customized to 300)

Video System

Camera: 1/3" Color CCD Camera

Zoom lens magnification: 0.7X-4.5X          Total magnification: 26.6X-171X

Field view: 8.1mm-1.3mm

 Power supply: AC 100V-240V 50/60Hz          Power:50W(computer excuded)

Options

1.0X lens cone(standard)

0.5X lens cone(Optional)

working distance (mm)

Zoom Lens

0.7X-4.5X

0.7-4.5

Additional Lens

Magnifeication

Object view(mm)

Magnification

Object view(mm)

0.5X (Optional)

10X-64X

22-3.4

50X-32X

44-6.8

175

1.0X(Standard)

20X-128X

11.1-1.7

10X-64X

22-3.4

92

2.0X(Optional)

40X-256X

5.5-0.9

20X-128X

11.1-1.7

36
