Floor Type Large Screen Profile Projector Machine Optical Profile Measurement Machine

Large Image : Floor Type Large Screen Profile Projector Machine Optical Profile Measurement Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Model Number:	CPJ-6020V

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden Package
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	200

Contact Now

Floor Type Large Screen Profile Projector Machine Optical Profile Measurement Machine

Description

Weight (kg):	360kg	Dimension (mm):	1200×1140×1940
Rotary Range:	0~360°	Power Supply:	AC 100-240V 50/60Hz
Worktable Size (mm):	400×265
Highlight:	Floor Type Profile Projector Machine , Large Screen Profile Projector Machine , Optical Profile Measurement Machine

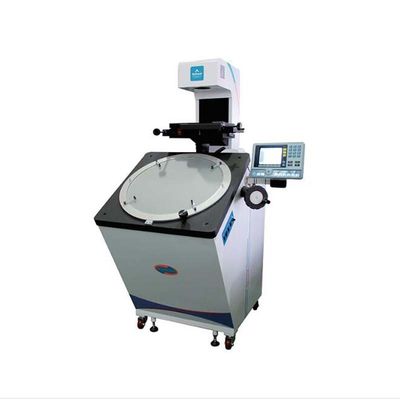

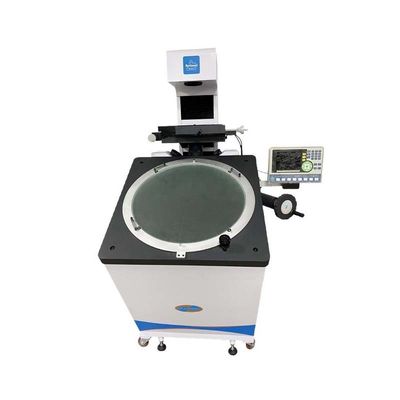

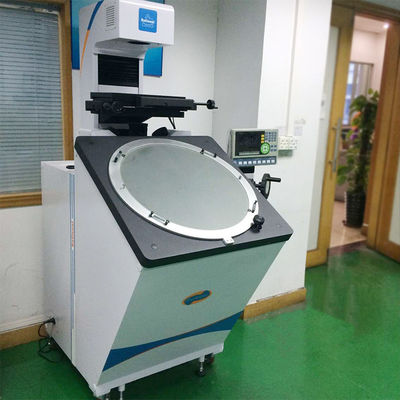

CPJ-6020V Floor Type Profile Projector Large-screen Optical Profile Measurement

1. Product Introduction
CPJ-6020V Floor Type Profile Projector is a high precision and high efficiency optical measuring instrument integrating optics, mechanics and electronics. It is widely used in the field of machinery, instrument, meter, electronics, and light industry as well as in measuring chamber and laboratory of universities and institutes, research institutes and metrological verification department. This instrument can efficiently measure the geometric dimension and profile of various complicated shaped workpiece.

2. Technical Parameters

Model		CPJ-6020V
X-axis Travel (mm)		200
Y-axis Travel (mm)		100
Worktable size (mm)		400×265
Glass size (mm)		270×170
X, Z-axis digital display resolution		0.5um
Indication error (mm)		2.5+L/75
Z-axis Travel (mm)		50 (focusing)
Weight (kg)		360kg
Dimension (mm)		1200×1140×1940
Projectorscreen	Size (mm)	615
	Rotary range	0~360°
	Resolution	1’ or 0.01°
Lens		Magnification	10× (Optional)	20× (Optional)	50× (Optional)	100× (Optional)
		Field of view (mm)	60	30	12	6
		Working distance (mm)	143.5	85.5	92	48.5
		Measure the maximum height(mm)	50
Power supply: AC 100-240V 50/60Hz. Total power: 450W
