BGD 660 Automatic Drying Tester for Ink Ink Drying Testing Machine

BGD 660 Automatic Drying Tester for Ink Ink Drying Testing Machine
BGD 660 Automatic Drying Tester for Ink Ink Drying Testing Machine

Large Image :  BGD 660 Automatic Drying Tester for Ink Ink Drying Testing Machine

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: BGD 660
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200
Contact Now

BGD 660 Automatic Drying Tester for Ink Ink Drying Testing Machine

Description
Dimensions Of Machine: 500mm×200mm×220mm Weight: 17KG
Power: 220V±22V 50Hz Wheel Weight: 100g
Rubbing Speed: 21, 42, 85,106 Cpm Certification: Includes Calibration Certification
Warranty: 1 Year
Highlight:

automatic paint testing equipment

,

automatic paint testing instruments

,

drying paint testing equipment

BGD 660 Automatic Drying Tester for Ink Ink Drying Testing Machine

1.Description

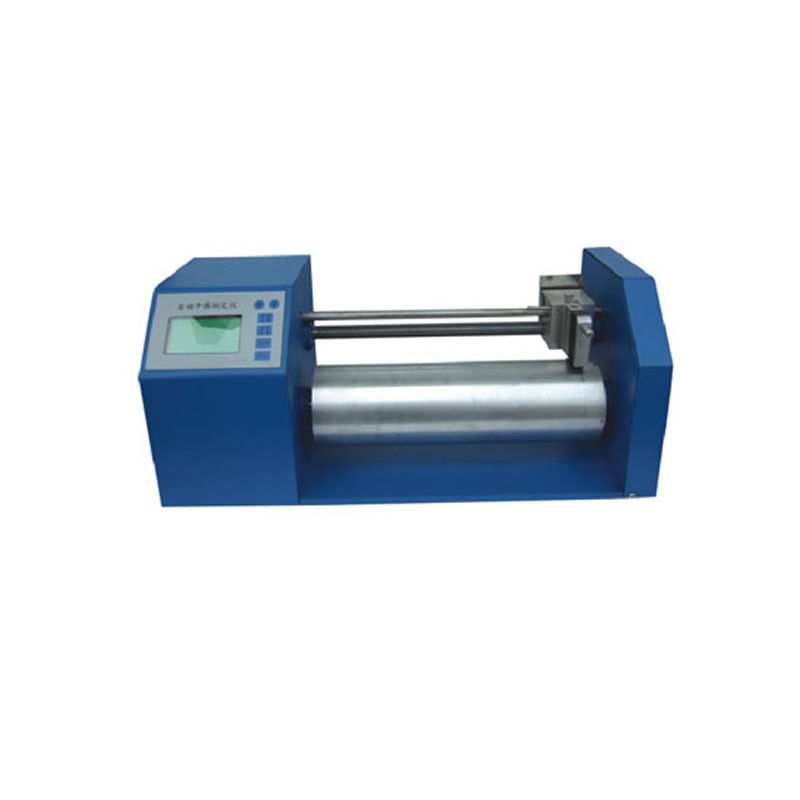

Automatic Drying Tester for Ink is suitable for testing the drying time of ink. The tester consists of a rotating cylinder, a weight wheel and a touch screen. When working, the rotating cylinder rotates at a constant speed and the weight wheel moves at a constant speed along the axis of the rotating cylinder. The sample is applied to parchment paper (film length 30 cm), which is then attached to the rotating cylinder. If the ink is not completely dry, the weight wheel leaves a mark on the blank space of the parchment until the end of the test. The test result is obtained by calculating the ink marks on the parchment and the operating speed of the rotating cylinder.

2.Technical Parameter

 Power

220V±22V  50Hz

 Speed of Weight Wheel

2mm/r

 Settable time of whole distance

5～20(hour)

 Circle Numbers of Whole distance

120r

 Overall Dimensions

500mm×200mm×220mm(length by width by height )

 Wheel Weight

100g

 Weight

17KG

 Ordering Information

BGD 660---Automatic Drying Tester for Ink
